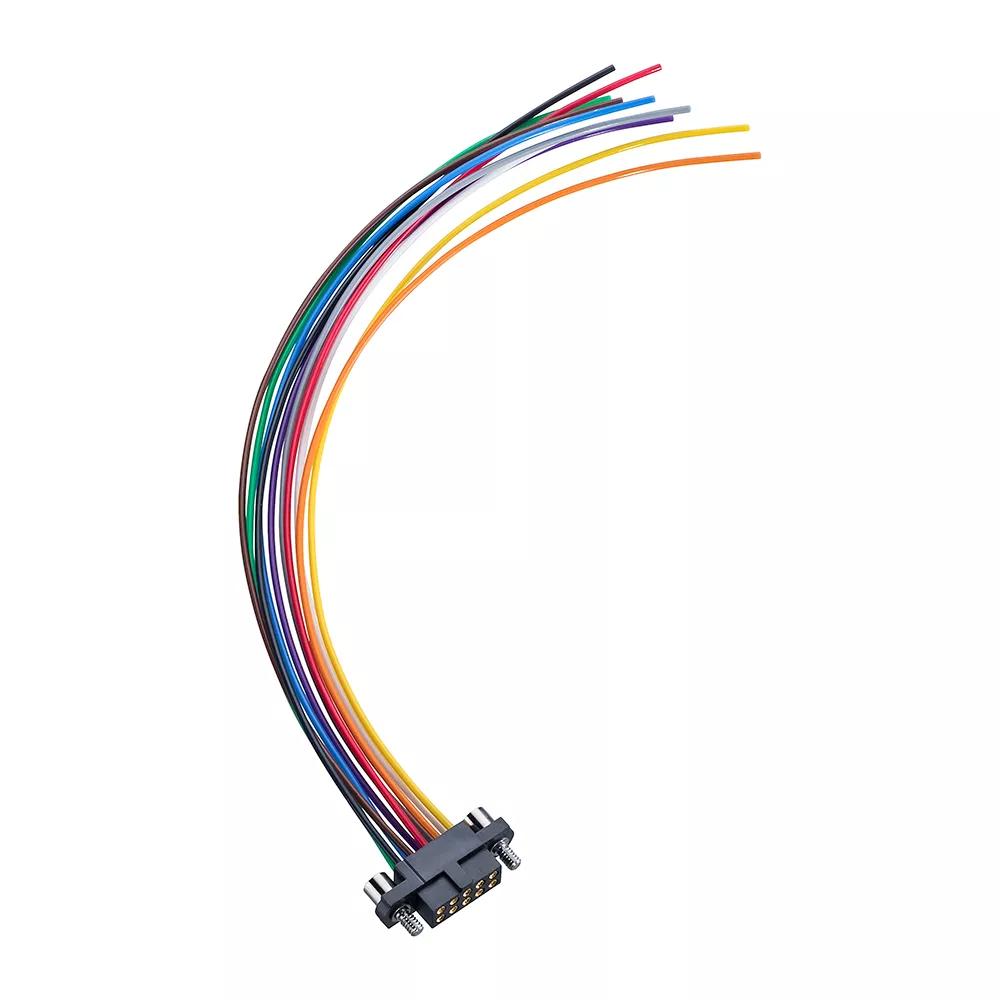

5+5 Pos. Female DIL 26AWG Cable Assembly, 150mm, single-end, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek

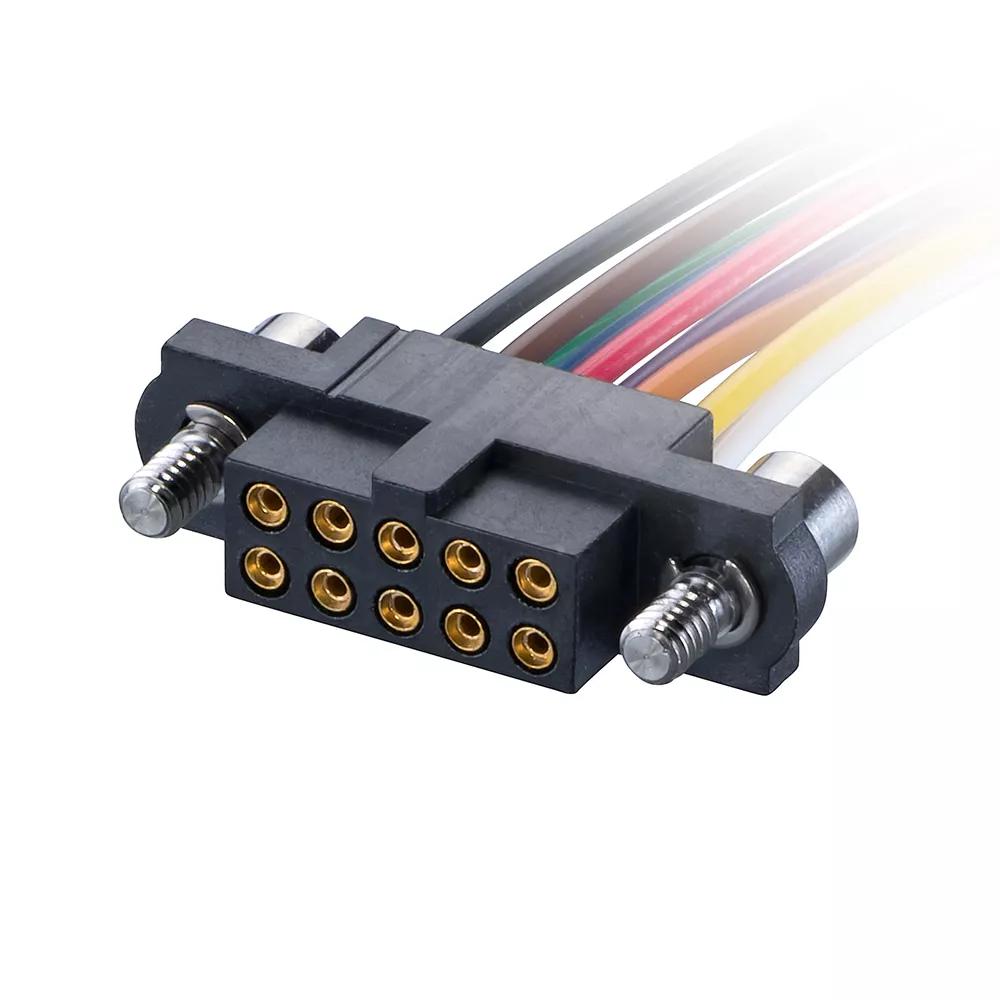

- Female Single-Ended with multicolor 26 AWG cable, 150mm – 10 contacts (5+5). Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area.
- Manufactured with the M80-4811005 Double Row crimp connector kit. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Socket Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
150.30 x 20.00 x 5.50
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
