Active

M80-FC305F1-08

8 Pos. Female SIL RG178 Cable Conn. Kit, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

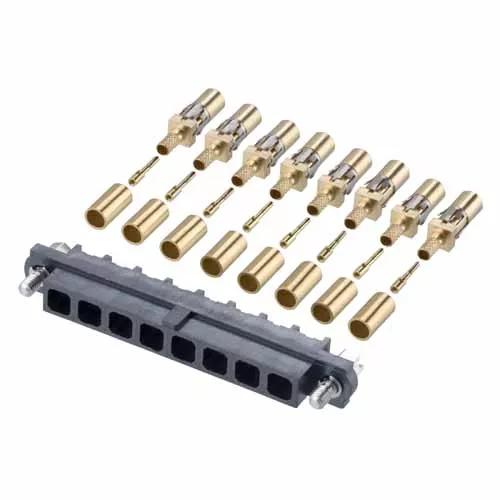

Complete kit: housing (with hexagonal slotted jackscrews) with 8 x jack coax contacts supplied loose.
Coax crimp contact suitable for RG178 (Ø2mm max insulation diameter). Gold finish on contact areas.
For complete pin numbering or pin out information, see Component Specification C005XX.

Request Samples

Availability

M80-FC305F1-08 - 8 Pos. Female SIL RG178 Cable Conn. Kit, Jackscrews

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

Ø2mm (RG178)

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Hex Slotted

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper inner contact, Brass outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Individual Part Weight:

4.805g

Overall Dimensions (L x W x D) in mm:

42.00 x 5.50 x 13.70

Thread Size:

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

Availability

187 in stock

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Downloads

PDF

Technical Drawing / Datasheet - M80-FC305F1-XX.pdf

ZIP

M80-FC305F1-08 CAD Model (ZIP file containing STP and IGES)

Download

PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

PDF

Test Report HT001 - Datamate Mechanical Endurance - number of cycles, up to 10,000

PDF

Test Report HT002 - Datamate Voltage Proof, Voltage Flashover, and Insulation Resistance

PDF

Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests

PDF

Test Report HT015 - Datamate Environmental (Vibration, Shock, Bump) - J-Tek and 101Lok

PDF

Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

PDF

Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental, Mechanical and Electrical

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M80-FC305F1-XX series

PDF

Product Training Module - Guide to the Datamate Coax range

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-34 - Z80-292 and Z90-293 Hand Crimp Tools Instruction Sheet

PDF

3D PDF file - M80-FC305F1-08_3D.pdf

PDF

Catalog page - Datamate Coax Jack (Female) Crimp Kit

PDF

Catalog page - Datamate Coax Standard products

PDF

Catalog page - Datamate Mix-Tek Specification

PDF

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - Datamate Mix-Tek Off-The-Shelf Connectors

PDF

Outgassing data for Harwin products (plastics)

PDF

Plating thickness on Datamate special contacts (power and coax)
