M80-FC305F1-08-0450L

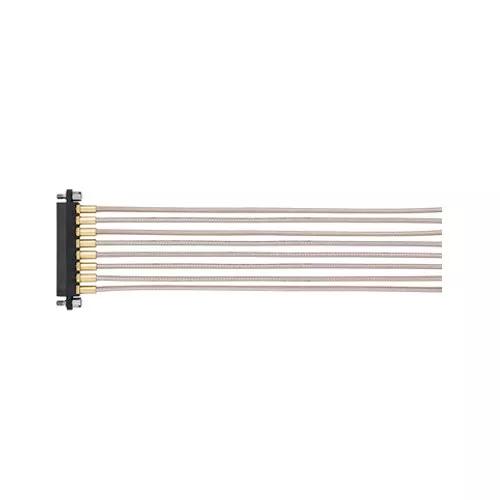

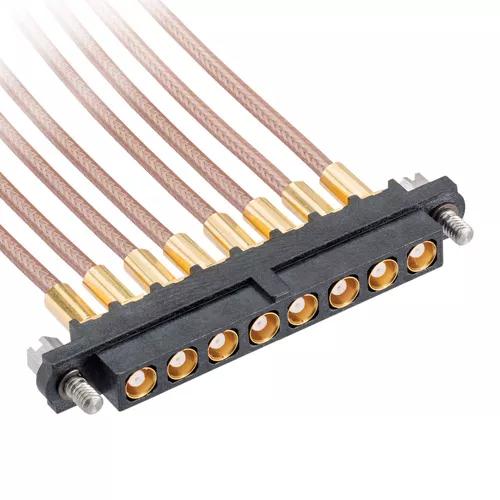

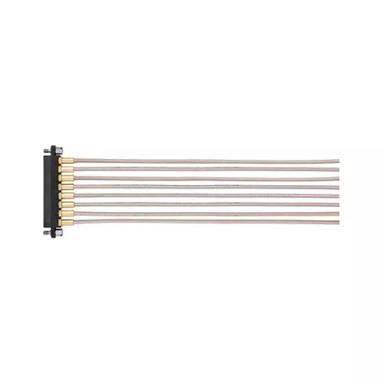

Datamate Coax Jack (Female) 450mm Cable Assembly, 50 Ohm multiport ganged coax with RG178 coax cable attached (single-ended), Hexagonal slotted jackscrews, 8 contacts

HRi
HRi

Traceparts account required

M80-FC305F1-08-0450L

Datamate Coax Jack (Female) 450mm Cable Assembly, 50 Ohm multiport ganged coax with RG178 coax cable attached (single-ended), Hexagonal slotted jackscrews, 8 contacts


4.00mm Pitch High-Reliability Connector - Datamate Coax

  • Ganged 50 Ohm coax multiport Female Single-Ended cable assembly, 450mm (18") long - 8 contacts. Fitted with floating jackscrews, hex slotted head.

  • Manufactured with M80-FC305F1-08 female Single Row coax crimp connector kit, assembled to tan RG178 coax cable. Gold finish on contact areas.

  • NOTE: This part number is being upgraded soon - please use M80-FC105-08-0450L for future orders.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Floating Jackscrew with Hex Slotted Head (Standard Gender)

  • Number of Rows:

    1

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB/US

  • Side Stackable:

    No

  • Number of Special (Power or Coax) Contacts:

    8

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    0.5A per contact

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PPS

  • Base Material of Contact:

    Beryllium Copper inner contact, Brass outer shell

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    4.00mm (0.157")

  • Dimensions:

    450.30 x 42.00 x 5.50

  • Thread Size:

    M2

  • Wire Size:

    ø2mm (RG178)

Downloads

    Product Information

  • Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles

  • Product Training Module - Guide to the Datamate Coax range

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Training Module - Panel Mount with Datamate

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-FCXXXF1-XX-XXXXL.pdf

  • Plating thickness on Datamate power and coax contacts

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M80-FC305F1-08-0450L

  • Material composition for M80-FC305F1-XX-YYYYL series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical

  • Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok

  • Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
