M80-FC305F1-06-0300L

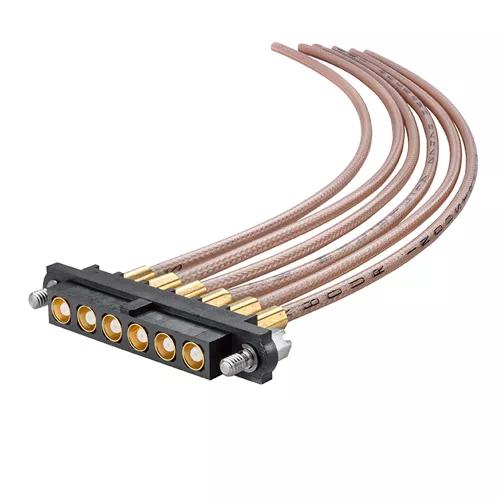

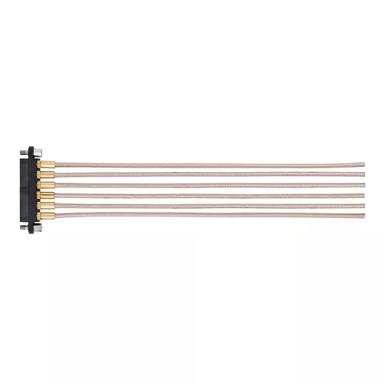

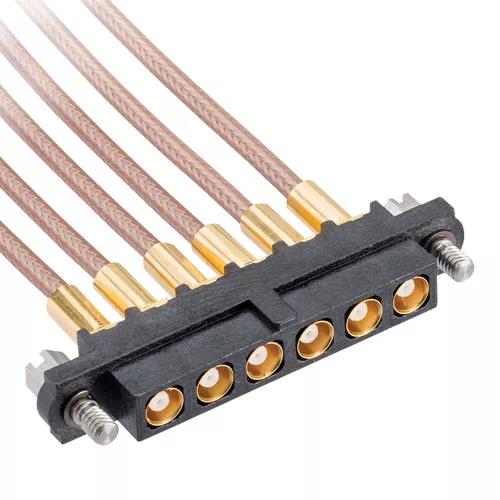

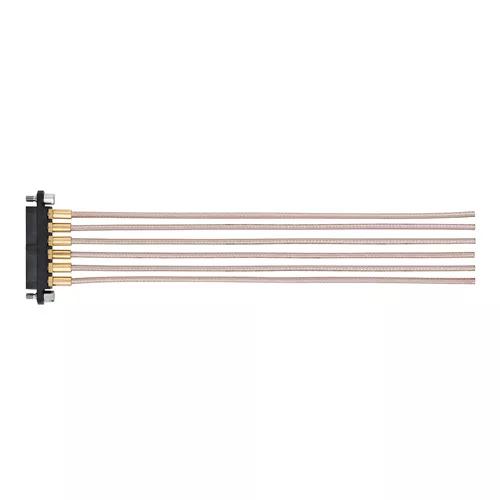

6 Pos. Female SIL RG178 Cable Assembly, 300mm, single-end, Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Coax
- Ganged 50 Ohm coax multiport connector with cable assembled – single-ended, 6 contacts, 300mm (12″) long. Fitted with floating jackscrews, hex slotted head. Gold finish on connector contact area.
- Manufactured with the M80-FC305F1-06 crimp coax connector, assembled to RG178 coax cable. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
4.00mm (0.157")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Cable Conductor Size:
Ø2mm (RG178)
Current Rating:
0.5A per contact
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
Hex Slotted
Polarising Features:
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Special (Power or Coax) Contacts:
6
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper inner contact, Brass outer shell
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Overall Dimensions (L x W x D) in mm:
300.30 x 34.00 x 5.50
Thread Size:
M2
Mating Profiles:
Availability
38 in stock
Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
