M80-FC305F1-04-0600L

4 Pos. Female SIL RG178 Cable Assembly, 600mm, single-end, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

Add to Favorites

Loading…   Check availability

5 similar products View products

Traceparts account required

Product Description

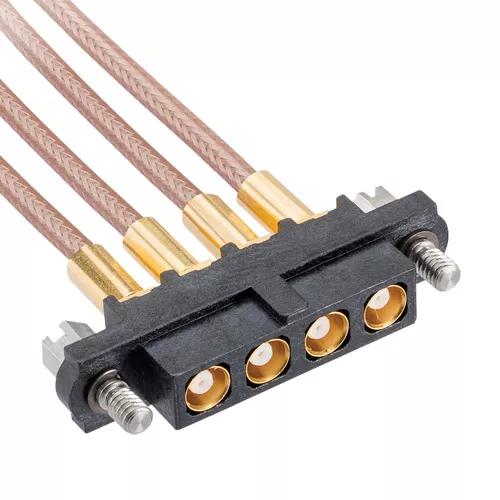

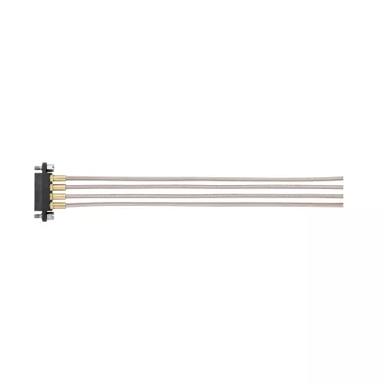

  • Ganged 50 Ohm coax multiport Female Single-Ended cable assembly, 600mm long – 4 contacts. Fitted with floating jackscrews, hex slotted head.
  • Manufactured with M80-FC305F1-04 female Single Row coax crimp connector kit, assembled to tan RG178 coax cable. Gold finish on contact areas.
  • NOTE: This part number is being upgraded soon – please use M80-FC105-04-0600L for future orders.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable Assembly

Cable Conductor Size:

Ø2mm (RG178)

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Slotted Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

4

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper inner contact, Brass outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Overall Dimensions (L x W x D) in mm:

600.30 x 26.00 x 5.50

Thread Size:

M2

Frequently Asked Questions Ask a Question

What is the process or technician training certification ensured for pre-crimped and wired connectors?

Our operators assembling all our cable assemblies are trained to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
