M80-FC305F1-04-0300L

4 Pos. Female SIL RG178 Cable Assembly, 300mm, single-end, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

Order Sample

Add to Favorites

In stock Check availability

2 similar products View products

Traceparts account required

Product Description

Ganged 50 Ohm coax multiport connector with cable assembled – single-ended, 4 contacts, 300mm (12″) long. Fitted with floating jackscrews, hex slotted head. Gold finish on connector contact area.
Manufactured with the M80-FC305F1-04 crimp coax connector, assembled to RG178 coax cable. Gold finish on contact areas.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-FC305F1-04-0300L - 4 Pos. Female SIL RG178 Cable Assembly, 300mm, single-end, Jackscrews

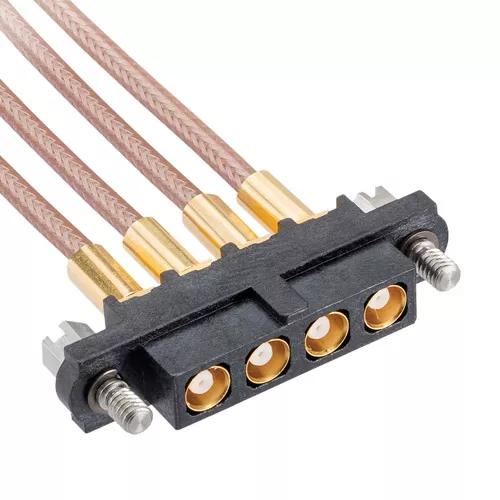

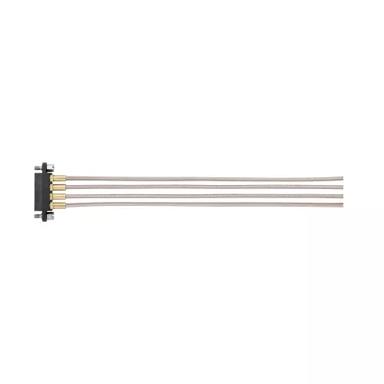

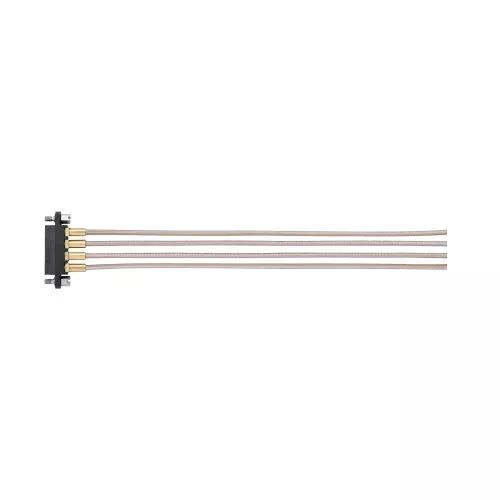

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

Ø2mm (RG178)

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Slotted Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper inner contact, Brass outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Overall Dimensions (L x W x D) in mm:

300.30 x 26.00 x 5.50

Thread Size:

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

Frequently Asked Questions Ask a Question

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.

Was this answer useful?
