4 Pos. Female SIL RG178 Cable Assembly, 150mm, single-end, Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Coax

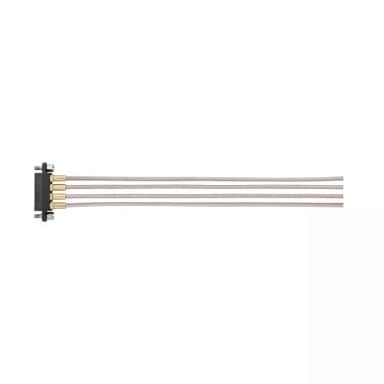

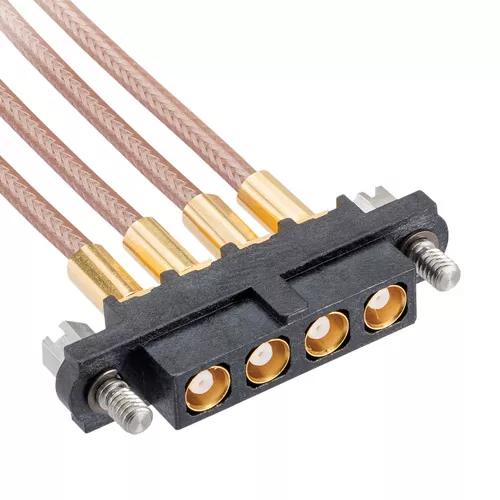

- Ganged 50 Ohm coax multiport connector with cable assembled – single-ended, 4 contacts, 150mm (6″) long. Fitted with floating jackscrews, hex slotted head. Gold finish on connector contact area.
- Manufactured with the M80-FC305F1-04 crimp coax connector, assembled to RG178 coax cable. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
0.5A per contact
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper inner contact, Brass outer shell
Housing Material UL Rating:
Overall Dimensions (L x W x D) in mm:
150.30 x 26.00 x 5.50
6 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
Want to talk to someone?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
