M80-FC305F1-02-0450L

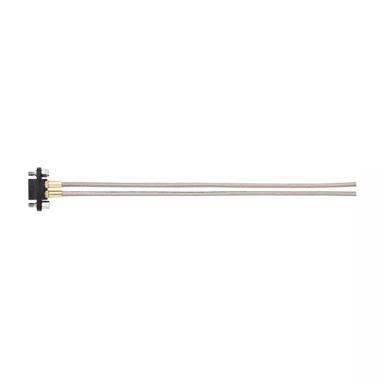

2 Pos. Female SIL RG178 Cable Assembly, 450mm, single-end, Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Coax

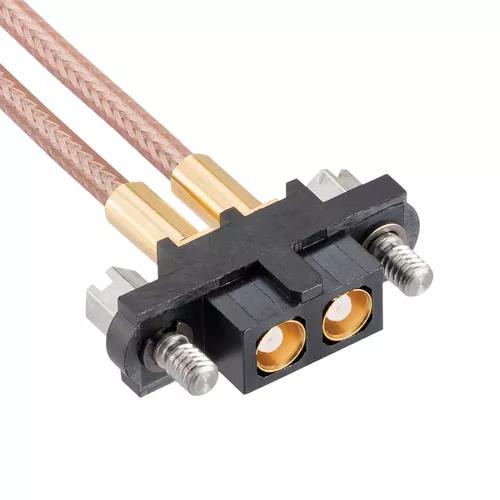

  • Ganged 50 Ohm coax multiport connector with cable assembled – single-ended, 2 contacts, 450mm (18″) long. Fitted with floating jackscrews, hex slotted head. Gold finish on connector contact area.
  • Manufactured with the M80-FC305F1-02 crimp coax connector, assembled to RG178 coax cable. Gold finish on contact areas.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

Ø2mm (RG178)

Current Rating:

0.5A per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Slotted Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

2

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper inner contact, Brass outer shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Overall Dimensions (L x W x D) in mm:

450.30 x 18.00 x 5.50

Thread Size:

M2

Availability

32 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 15
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 10
Distributor Farnell
Location Europe
Quantity (Updated Daily) 7

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

What is the process or technician training certification ensured for pre-crimped and wired connectors?

Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
