5+5 Pos. Female DIL 24AWG Cable Assembly, 150mm, single-end, for Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek

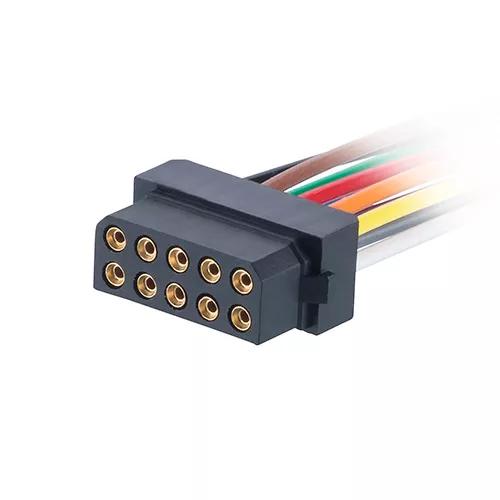

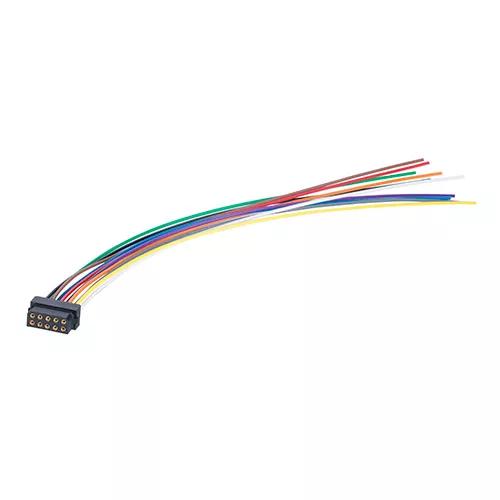

- Female Single-Ended with multicolor 24 AWG cable, 150mm (6″) – 10 contacts (5+5). Compatible housing style for male connectors with latches (L-Tek). Gold finish on connector contact area.
- Manufactured with the M80-8881005 Double Row crimp connector kit. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Style of Latches:
Compatible with latches
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
150.00 x 13.15 max x 5.40
Frequently Asked Questions Ask a Question
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
