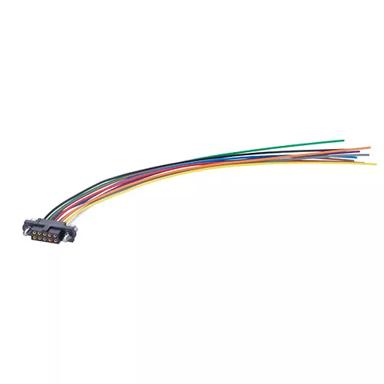

5+5 Pos. Female DIL 24AWG Cable Assembly, 150mm, single-end, Jackscrew
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Female Single-Ended with multicolor 24 AWG cable, 150mm (6″) – 10 contacts (5+5).
- Manufactured with the M80-4801005 Double Row crimp connector kit.

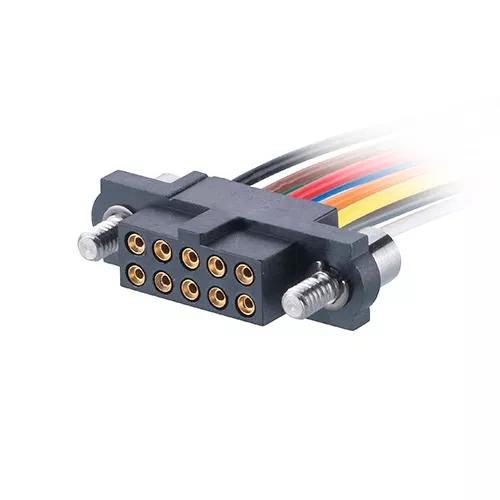

- Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
-55°C to +125°C
Style of Jackscrews:
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
150.30 x 20.00 x 5.50
