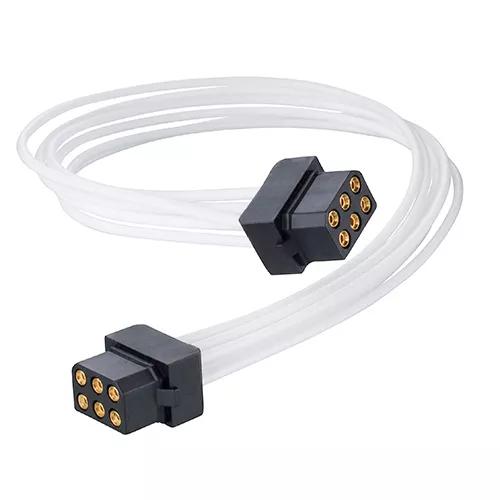

Image may be representative. Refer to the product title for more information.
Female-to-Female with white 24 AWG cable, 150mm (6") long - 6 contacts (3+3). Compatible housing style for male connectors with latches (L-Tek).
Manufactured with the M80-8880605 Double Row cable connector kit. Gold finish on contact areas.
For complete pin numbering or pin out information, see the Component Specification C005XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Latching Style:
Compatible with latches
Mating Pin Size:
Ø0.5mm
Number of Rows:
2
Connector Orientation:
Straight
Side Stackable:
No
Number of Signal Contacts:
6
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PBT
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
3.393g
Dimensions:
150.00 x 9.15 max x 5.40
Wire Size:
24 AWG
