2+2 Pos. Female DIL 24AWG Cable Assembly, 150mm, single-end, 101Lok
2.00mm Pitch High-Reliability Connector - Datamate J-Tek

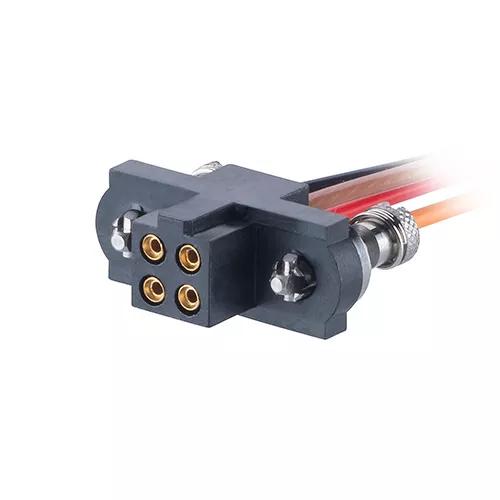

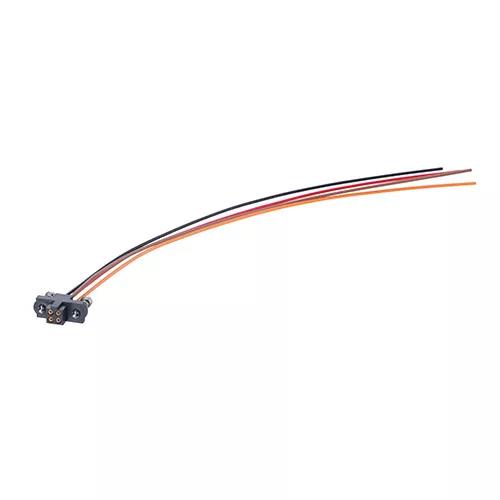

- Female Single-Ended with multicolor 24 AWG cable, 150mm (6″) – 4 contacts (2+2). Fitted with 101Lok slotted head fixings. Gold finish on connector contact area.
- Manufactured with the M80-4C10405FC Double Row crimp connector kit. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Style of Jackscrews:
101Lok Bayonet Fixing with Slotted Head
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
150.00 x 14.00 x 5.50
Frequently Asked Questions Ask a Question
What is the process or technician training certification ensured for pre-crimped and wired connectors?
Our operators assembling all our cable assemblies are trained and certified to IPC-A-620 requirements, as well as our own specific tooling instructions for the products involved.
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
