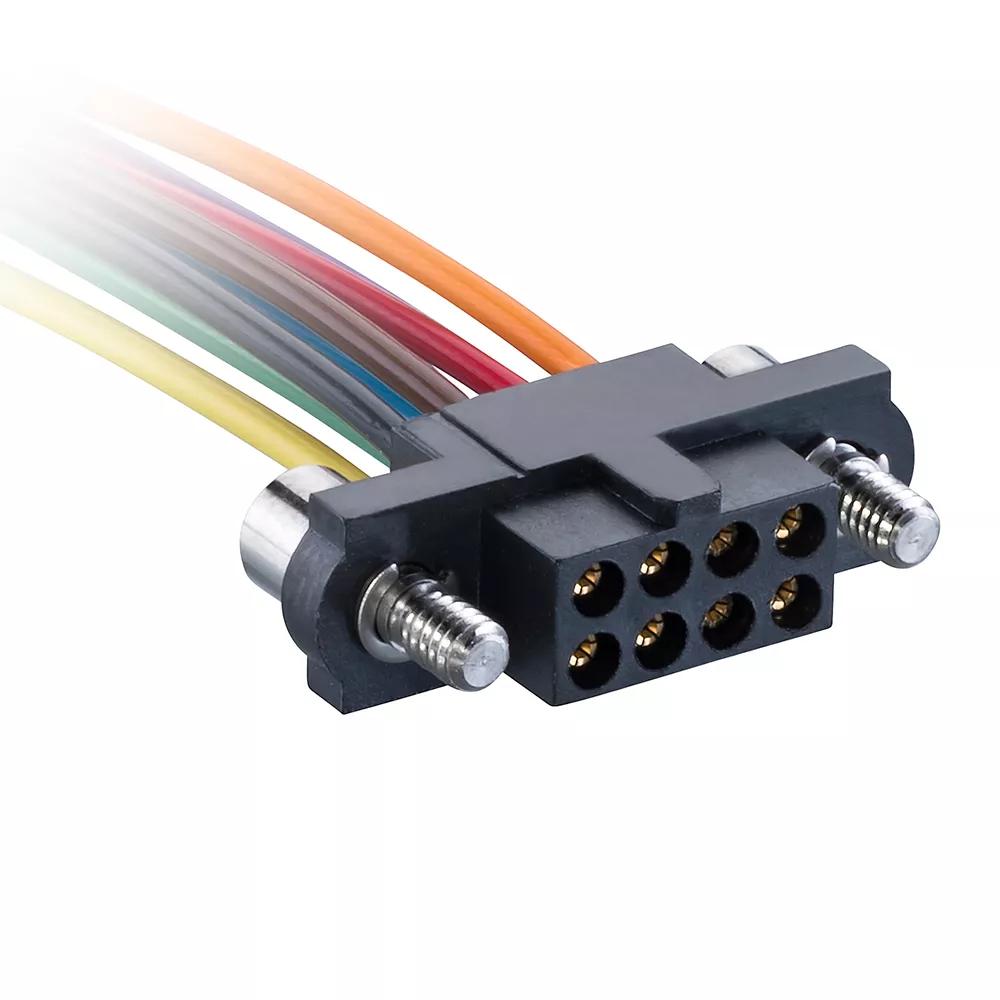

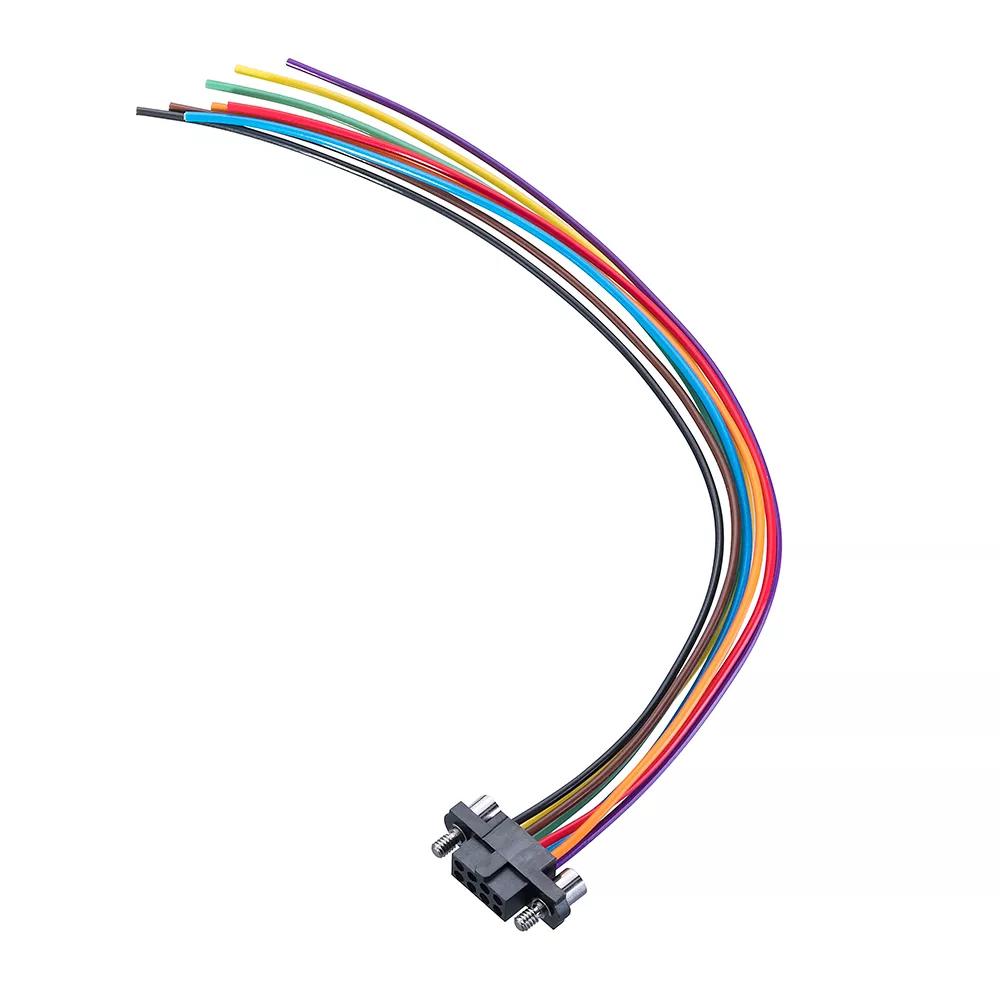

4+4 Pos. Female T-Contact DIL 22AWG Cable Assembly, 150mm, single-end, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Made to order
5 similiar products View products
- Female Single-Ended with multicolor 22 AWG cable, 150mm – 8 contacts (4+4). Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area.
- Manufactured with the M80-2060005 T-Contact crimp contacts, M80-4140898 Double Row crimp housing. Gold finish on contact areas.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
8.5A max individual contact, 3.5A max simultaneous (25°C)
-55°C to +125°C
Style of Jackscrews:
Floating Jackscrew with Hex Socket Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
150.30 x 18.00 x 5.50
