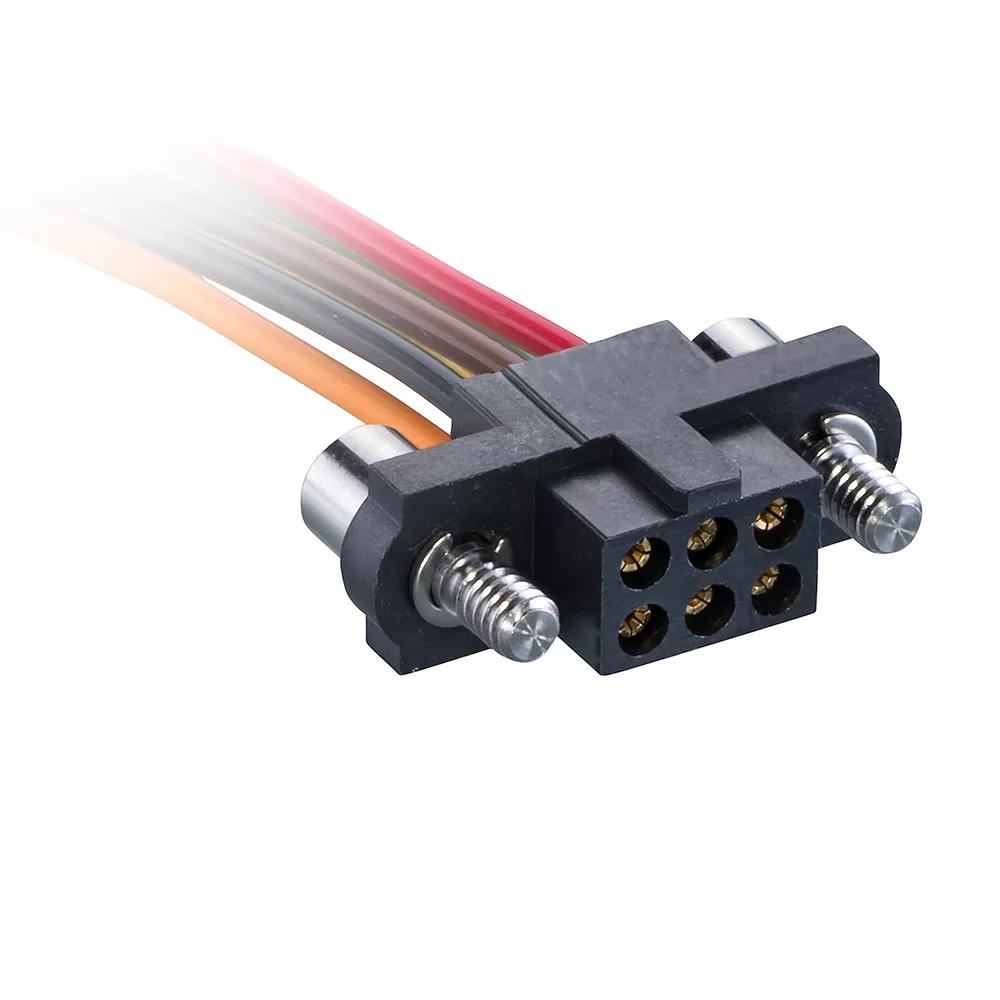

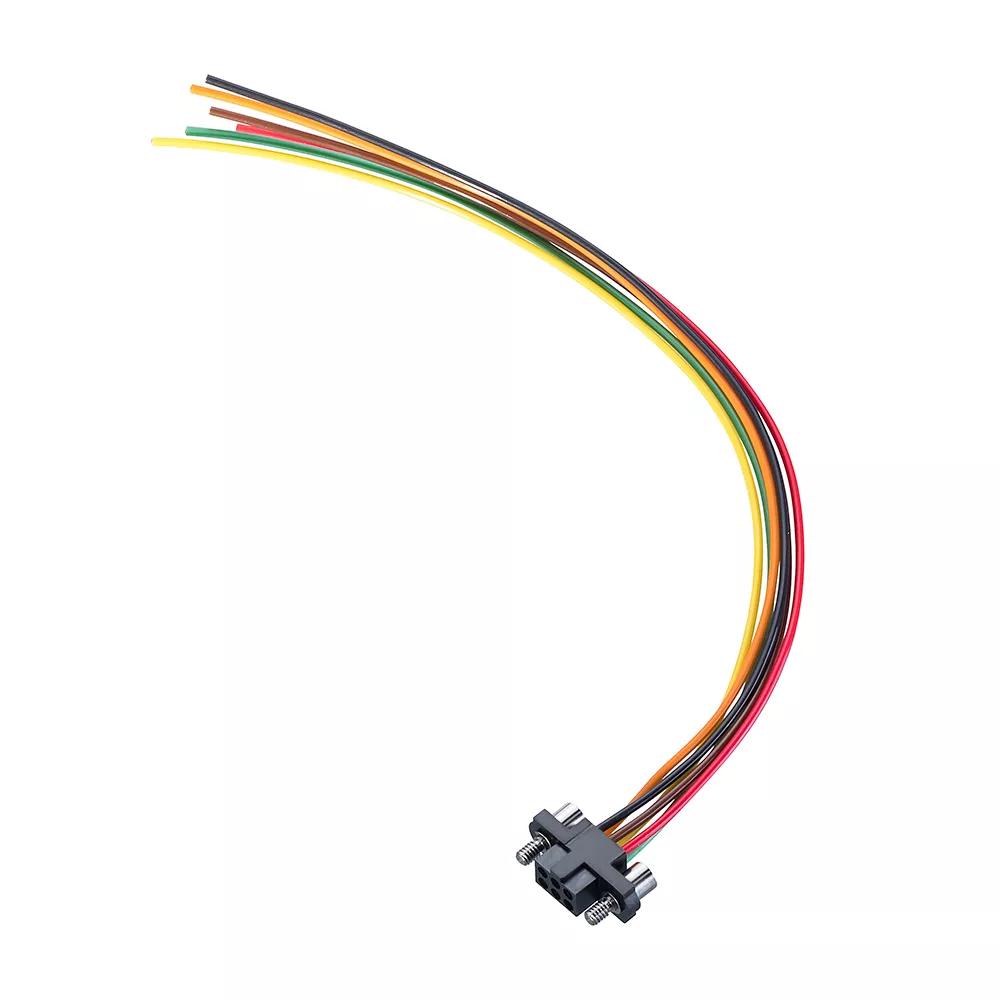

Female Single-Ended with multicolor 22 AWG cable, 150mm (6") long - 6 contacts (3+3). Fitted with floating jackscrews, hex socket head.
Manufactured with the M80-2060005 T-Contact crimp contacts, M80-4140698 Double Row cable housing. Gold finish on contact areas.
For complete pin numbering or pin out information, see the Component Specification C005XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Screw Fixing (floating) with Hex Socket Head
Mating Pin Size
Ø0.5mm
Number of Rows
2
Connector Orientation
Straight
Country of Origin
US
Side Stackable
No
Number of Signal Contacts
6
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
8.5A max individual contact, 3.5A max simultaneous (25°C)
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
PPS
Base Material of Contact
Beryllium Copper
Flammability Rating
UL94V-0
Packaging Style
Bulk/Loose
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
2.00mm (0.079")
Weight
3.693g
Dimensions
150.30 x 16.00 x 5.50
Thread Size
M2
Wire Size
22 AWG
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-XXXXXXXXX-XXXXLXX.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate signal contacts & T-Contact
Product Information
Catalog page - Datamate J-Tek Mating Profiles
Product Training Module - Guide to the Datamate T-Contact and associated housings
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Training Module - Panel Mount with Datamate
Product Datasheet - Datamate range: signal connectors (HRi)
Test Reports
Test Report HT062 - Datamate T-Contact 8.5A signal contact - General
Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
RoHS Declaration - M80-FB10668F2-0150L
