M80-F150210-100-L

5+5 Pos. Male DIL Flex Circuit Assembly, 100mm, single-end, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Order Sample

Add to Favorites

Loading… Check availability

5 similar products View products

Traceparts account required

Product Description

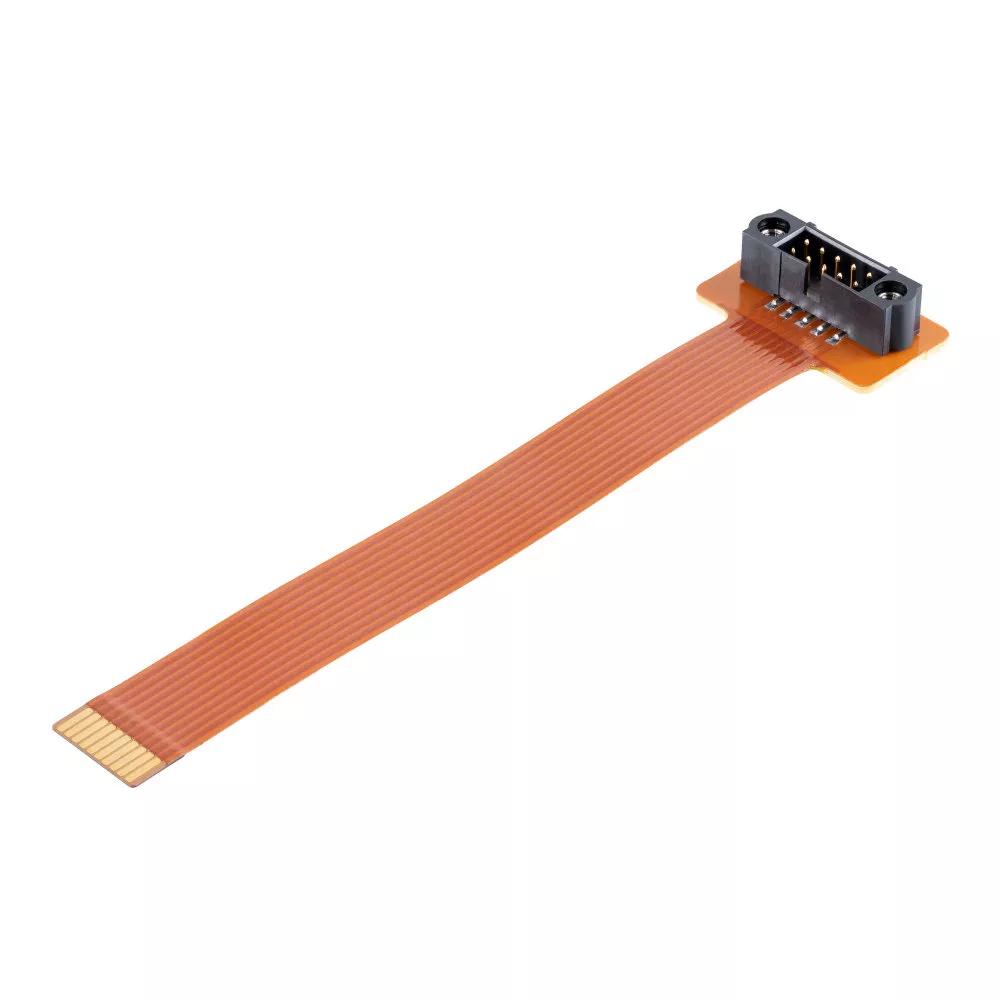

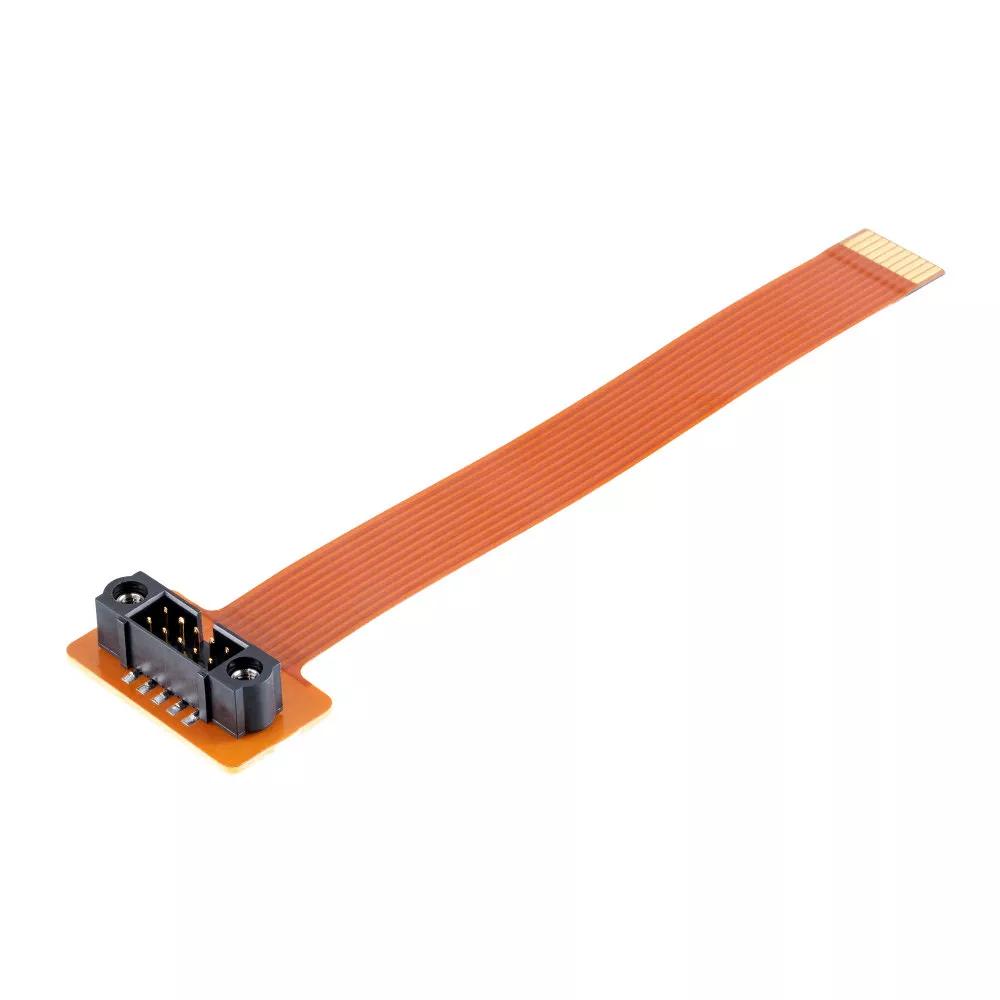

Male Single-Ended flexible circuit assembly, 100mm long – 10 contacts (5+5). Free end compatible with industry standard FPC/FFC connectors, 1mm pitch.

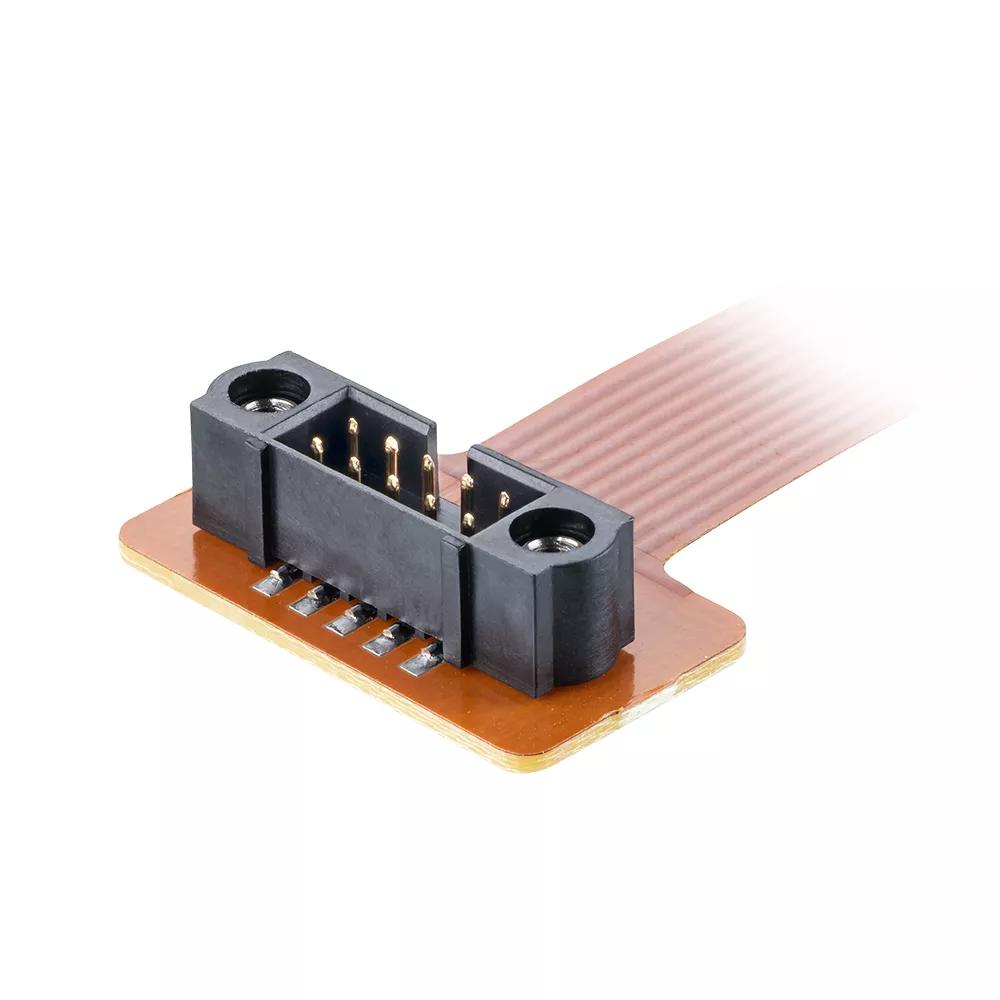

Manufactured with M80-5021042 male SMT connector, fitted with internal jackscrews. Gold finish on contact areas.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-F150210-100-L - 5+5 Pos. Male DIL Flex Circuit Assembly, 100mm, single-end, Jackscrews

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connection Type:

Flex Circuit Assembly

Mating Pin Size:

Ø0.5mm

Current Rating:

1A max per contact (25°C)

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS (connector only)

Housing Colour:

Black (connector only)

Housing Material UL Rating:

UL94V-0 (connector only)

Packaging Style:

Bulk/Loose

Individual Part Weight:

1.82g

Overall Dimensions (L x W x D) in mm:

100.00 x 23.00 x 6.60 max

Thread Size:

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.
