M80-F150210-100-402

5+5 Pos. Male DIL Flex Circuit Assembly, 100mm, Female 2nd end, Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

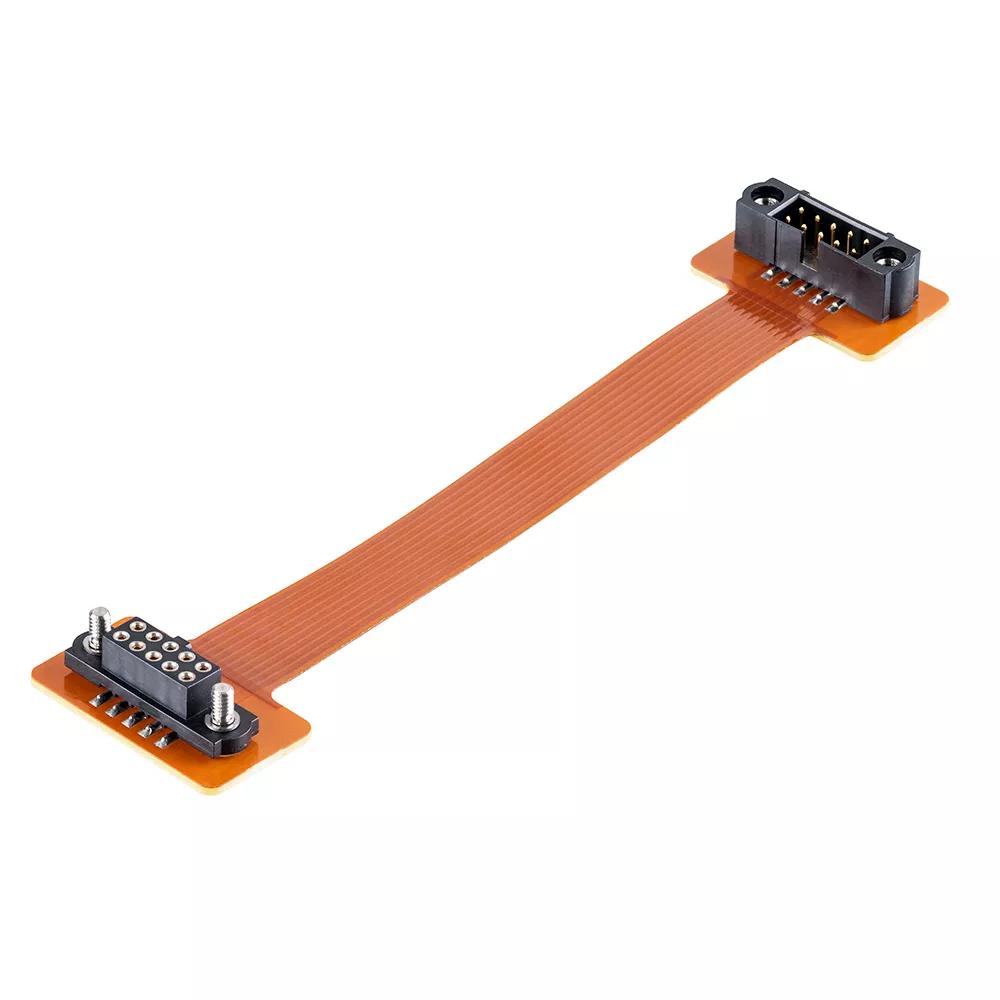

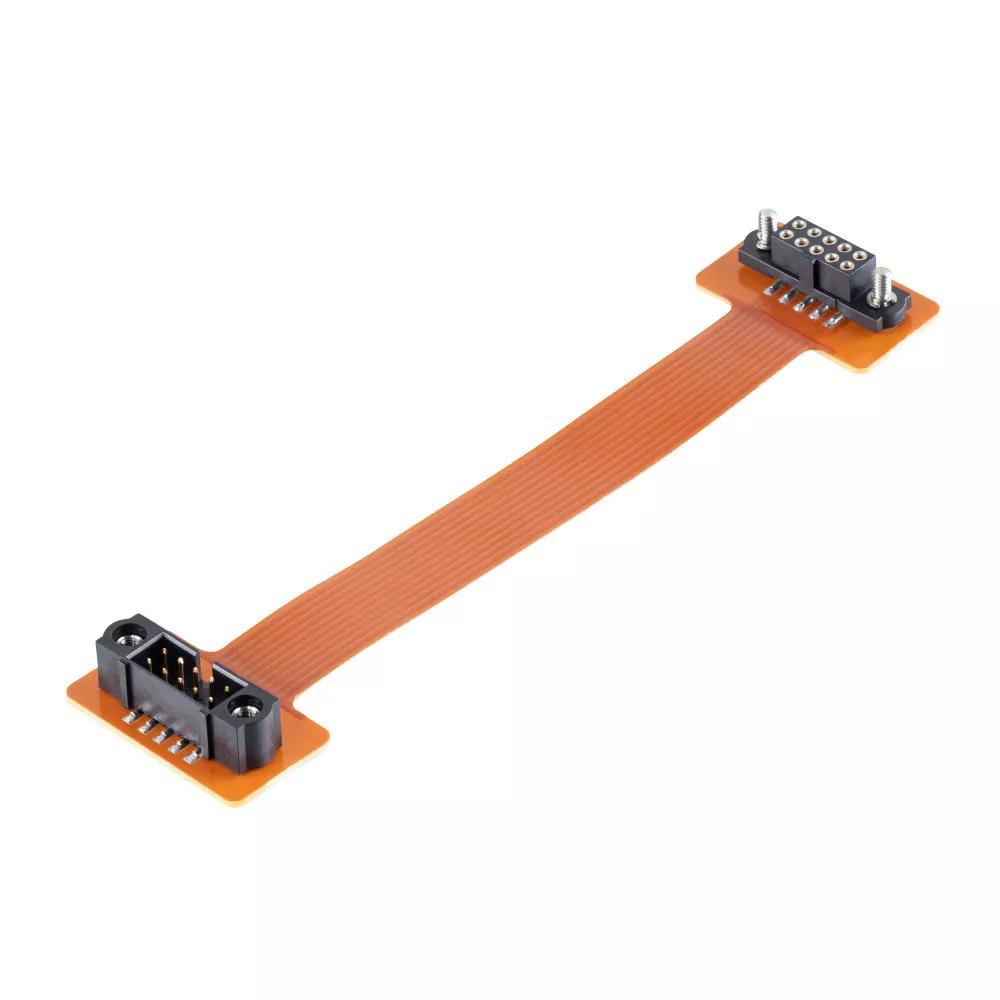

  • Male-to-Female (Female-to-Male) flexible circuit assembly, 100mm long – 10 contacts (5+5).

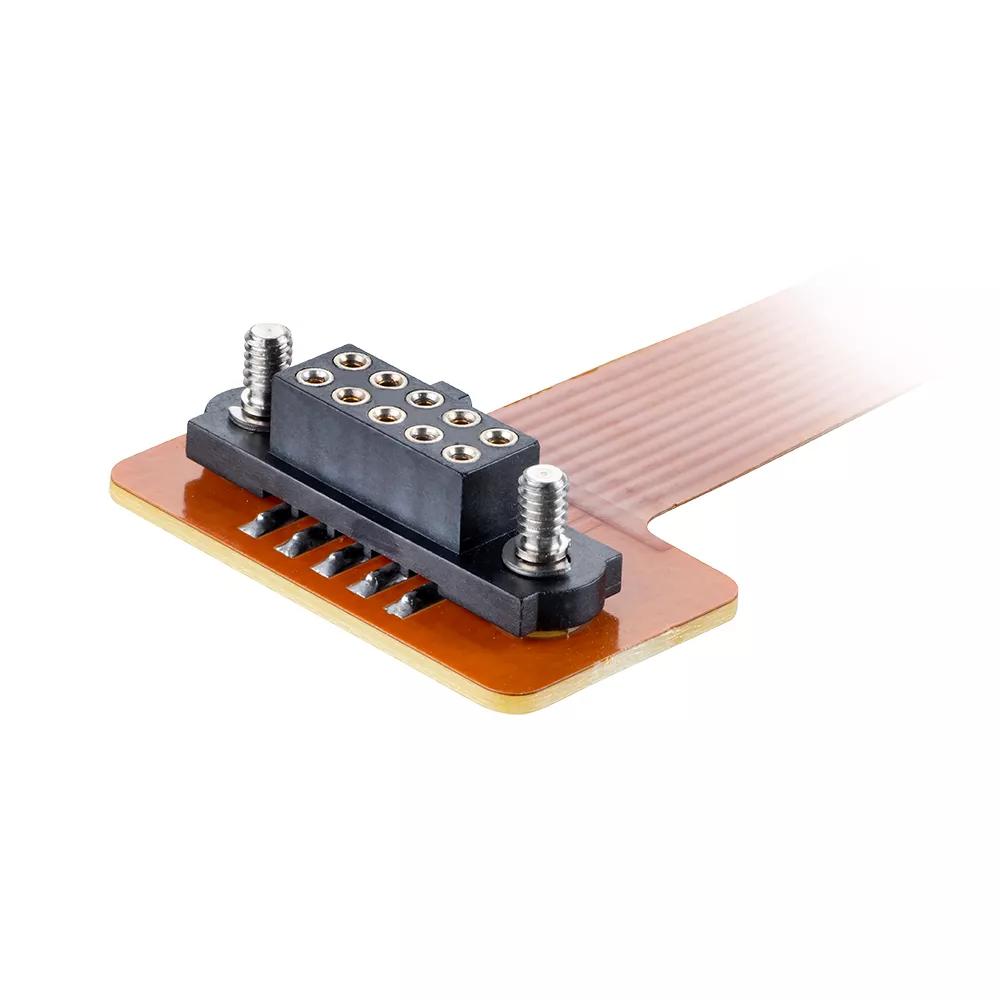

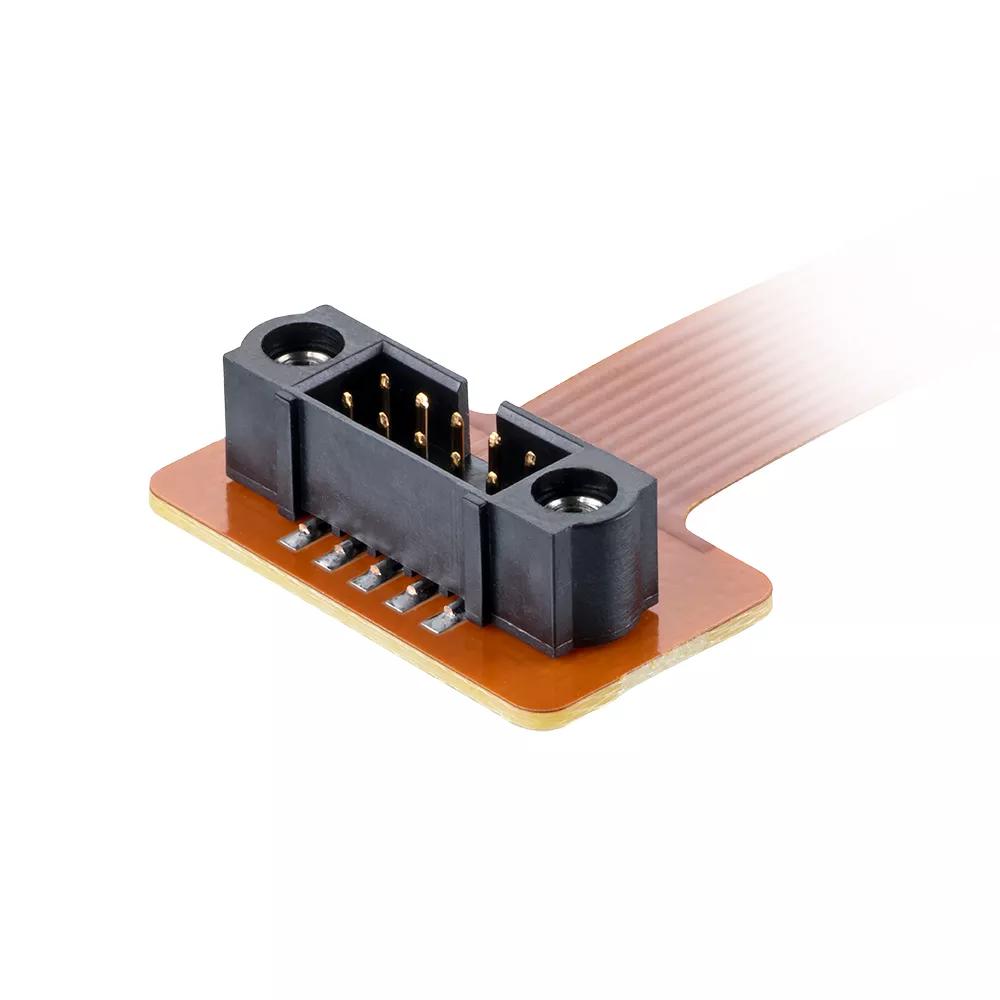

  • Manufactured with M80-5021042 male SMT connector (fitted with internal jackscrews) and M80-4021042 female SMT connector (fitted with floating hex slotted jackscrews). Gold finish on contact areas.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male & Female

Connection Type:

Flex Circuit Assembly

Mating Pin Size:

Ø0.5mm

Current Rating:

1A max per contact (25°C)

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender Male) and Floating Jackscrew with Hex Slotted Head (Standard Gender Female)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze (Male), Beryllium Copper contact clip and Brass shell (Female)

Housing Material:

PPS (connector only)

Housing Colour:

Black (connector only)

Housing Material UL Rating:

UL94V-0 (connector only)

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

3.65g

Overall Dimensions (L x W x D) in mm:

100.00 x 23.00 x 10.00

Thread Size:

M2

Availability

50 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
