Home > M80-9480000
Active

M80-9480000

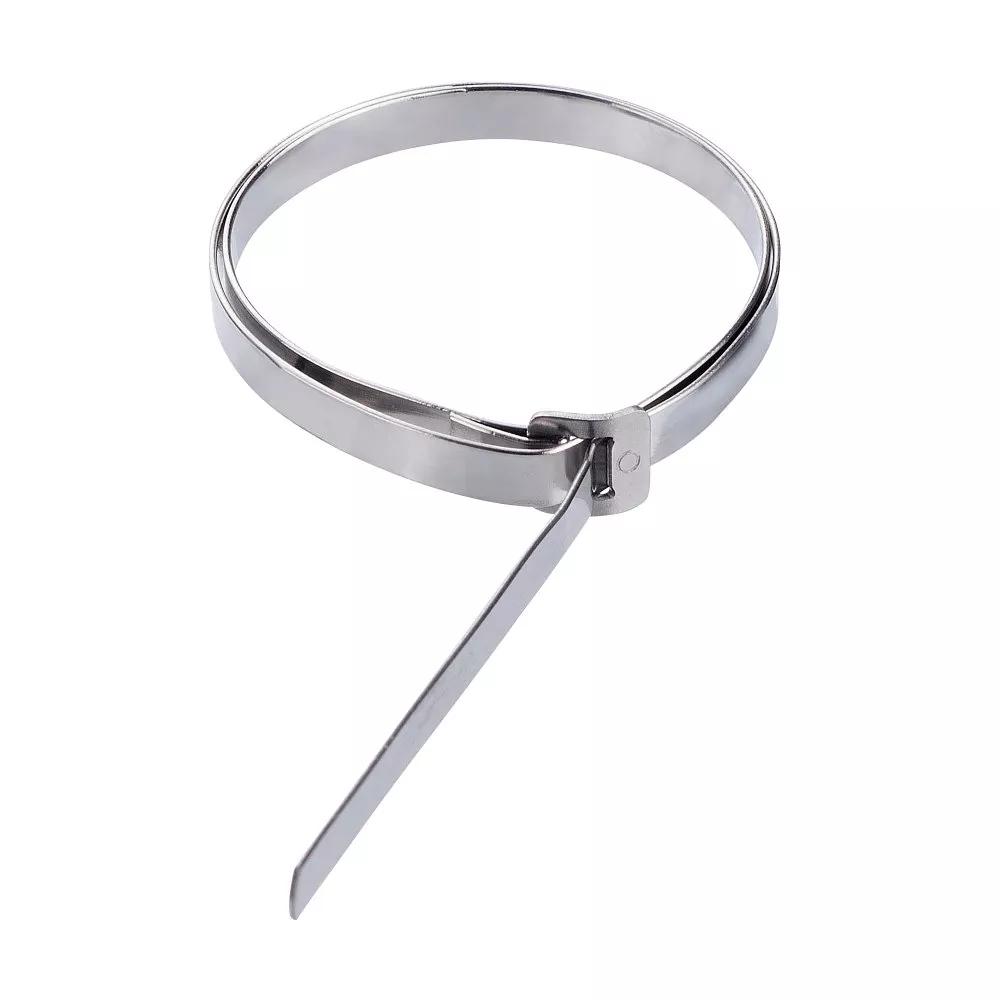

BAND-IT tie for Female Metal Backshell

High-Reliability Connector Accessory

  • BAND-IT tie for use with larger Datamate and Gecko cable Metal Backshell kits. Use with M80-945 and M80-946 for Datamate, G125-964 for Gecko.
  • Required to to affix metal braid to rear of backshell for full shielded cable assemblies. 362mm (14.3″) length.
  • Requires BAND-IT Tie Dex II A30199 Micro-Band Tool for permanent fixing (not available from Harwin).
Add to Favorites

Technical Details

Specification

Contact Gender:

Accessory

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Housing Material:

Stainless Steel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

2.95g

Overall Dimensions (L x W x D) in mm:

362.00 x 4.00 x 0.40

Availability

694 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 100
Distributor Farnell
Location Europe
Quantity (Updated Daily) 97
Distributor Newark
Location USA
Quantity (Updated Daily) 97

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 400

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-948.pdf

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Datamate Metal Backshells range

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-42 - Datamate Metal Backshells M80-945, M80-946 Instruction Sheet

PDF

IS-45 - Gecko-SL Metal Backshells G125-964 Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Datamate Mix-Tek Metal Backshells

PDF

Catalog page - Datamate J-Tek Female Metal Backshell

PDF

Catalog page - Gecko Screw-Lok Female Metal Backshell

PDF

Catalog page - Gecko Screw-Lok Male Metal Backshell

PDF

Catalog page - Gecko-MT Female Metal Backshell

PDF

Catalog page - Gecko-MT Male Metal Backshell

PDF

Product Change Notification 20-Jan-2020 - M80-947-948-Band-it-ties

PDF

Product Summary - Datamate Metal Backshells for J-Tek and Mix-Tek

PDF

Product Summary - Gecko-SL Metal Backshells
