M80-9470000

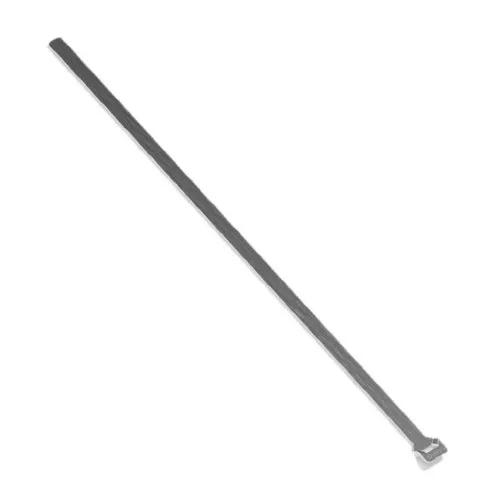

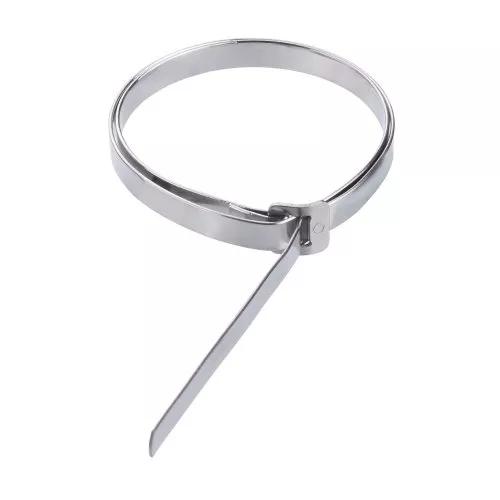

BAND-IT tie for Female Metal Backshell

2.00mm Pitch High-Reliability Connector - Datamate

  • BAND-IT tie for use with smaller Datamate Metal Backshell, female backshell kits, product ranges M80-945 and M80-946.
  • Required to to affix metal braid to rear of backshell for full shielded cable assemblies. 206.8mm (8.14″) length.
  • Requires BAND-IT Tie Dex II A30199 Micro-Band Tool for permanent fixing (not available from Harwin).
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Accessory

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Housing Material:

Stainless Steel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.84g

Overall Dimensions (L x W x D) in mm:

206.80 x 4.00 x 0.40

Availability

Limited availability or made-to-order
Distributor Location Quantity
Digi-Key
Global
Status265
Harwin
Europe
Status6
Harwin Inc
USA
Status419
Newark
USA
Status100

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-947.pdf

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 5.12) - Company Summary Statement

PDF

Material composition for M80-9470000 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Datamate Metal Backshells range

PDF

IS-42 - Datamate Metal Backshells M80-945, M80-946 Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Datamate Mix-Tek Metal Backshells

PDF

Catalog page - Datamate J-Tek Female Metal Backshell

PDF

Catalog page - Datamate Introduction

PDF

Product Change Notification 20-Jan-2020 - M80-947-948-Band-it-ties
