2.00mm Pitch High-Reliability Connector - Datamate

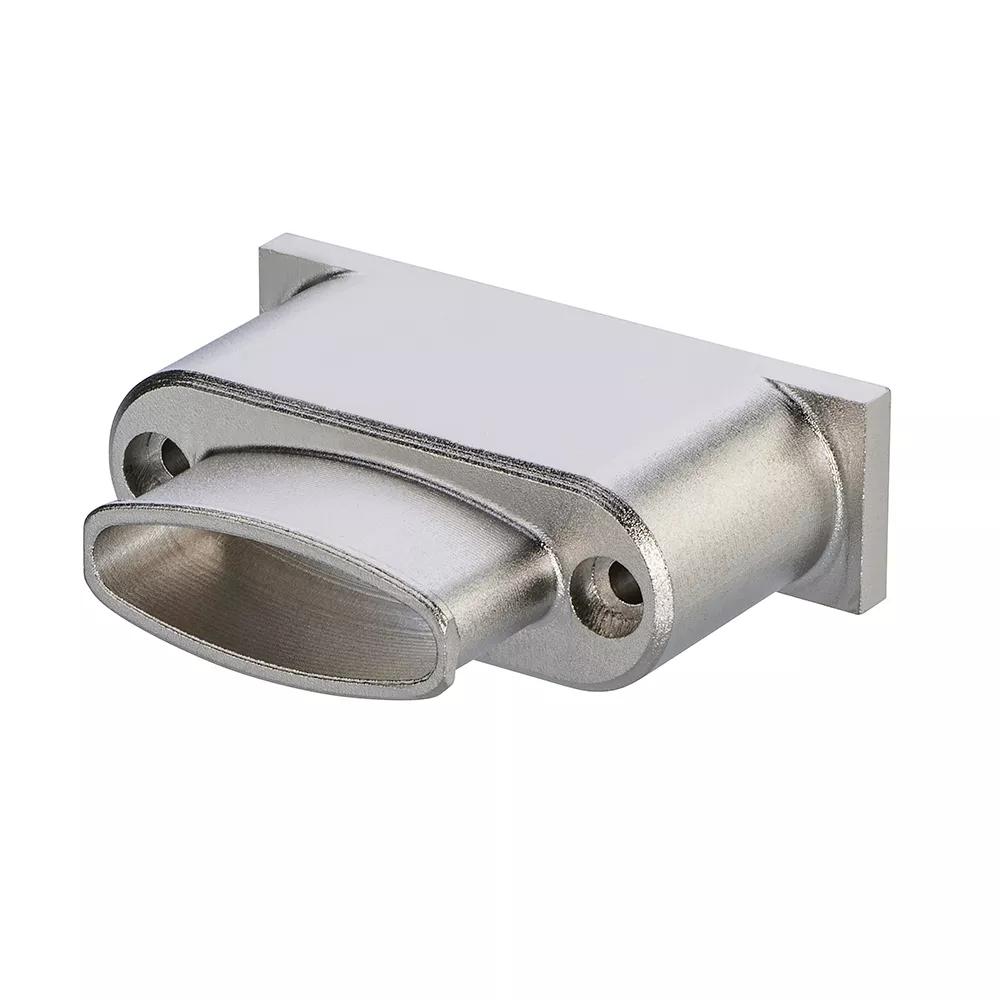

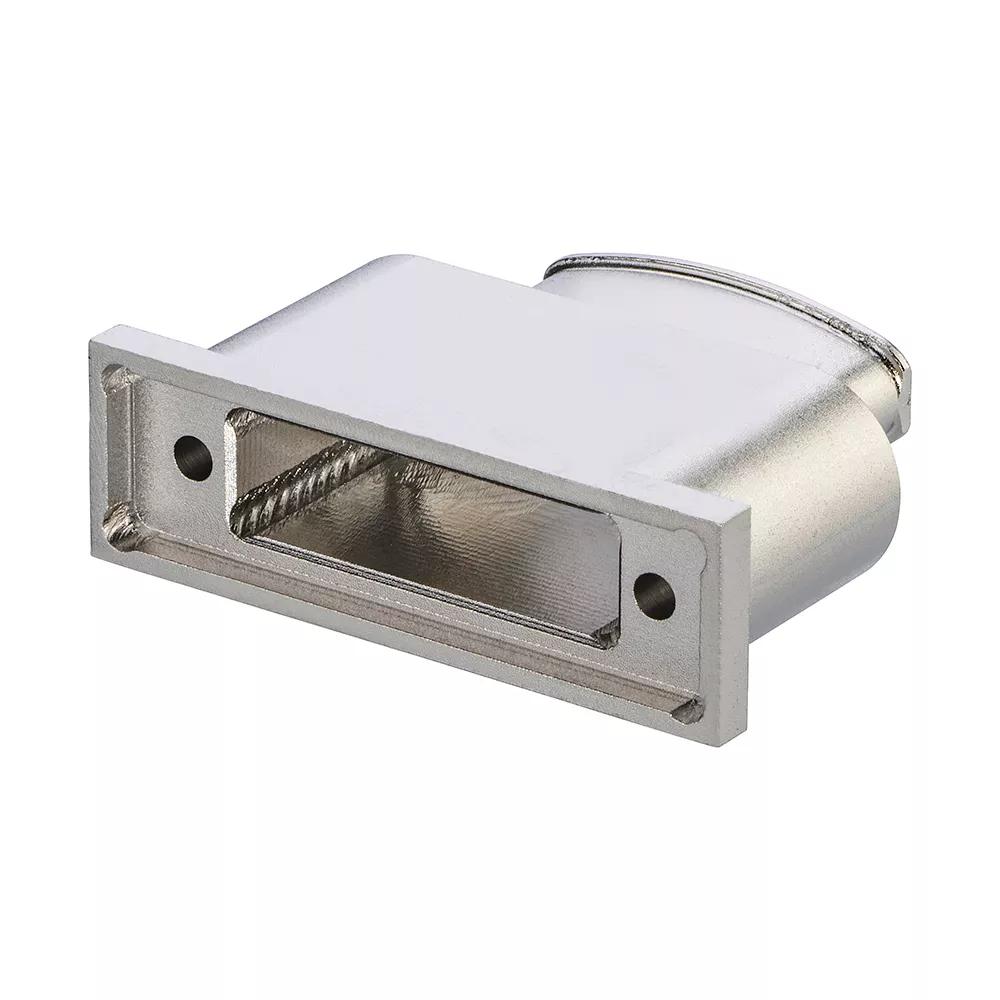

Female kit includes aluminium alloy backshell (nickel plated), 2 x hex socket jackscrew, 4 x e-clip (2 as spare).
For use with female cable connectors, both J-Tek and Mix-Tek designs. Suitable for J-Tek (all signal contacts) with 20 (10+10) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
Accessory kit only - connectors to be purchased separately. BAND-IT tie M80-9470000 or M80-9480000 to be purchased separately (for attaching braid to rear of connector, see instruction sheet IS-42).
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Screw Fixing (floating) with Hex Socket Head
Number of Rows:
2
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
20
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable:
No
Materials
Housing Material:
Aluminium Alloy
Packaging Style:
Bulk/Loose
Housing Colour:
Nickel
Dimensions
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Weight:
10.682g
Dimensions:
34.20 x 30.00 x 10.70
Thread Size:
M2
Downloads
Technical Drawing / Datasheet - M80-946.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Product Training Module - Overview of the Datamate Metal Backshells range
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Panel Mount with Datamate
Product Training Module - Cable Products from Harwin
IS-42 - Datamate Metal Backshells M80-945 + M80-946 Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Datamate range: signal connectors (HRi)
Product Datasheet - Datamate Mix-Tek range (HRi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material Composition for M80-946 series
RoHS - M80-9462002
