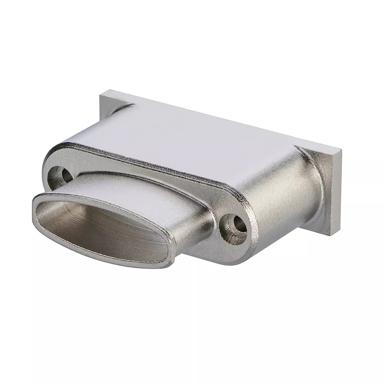

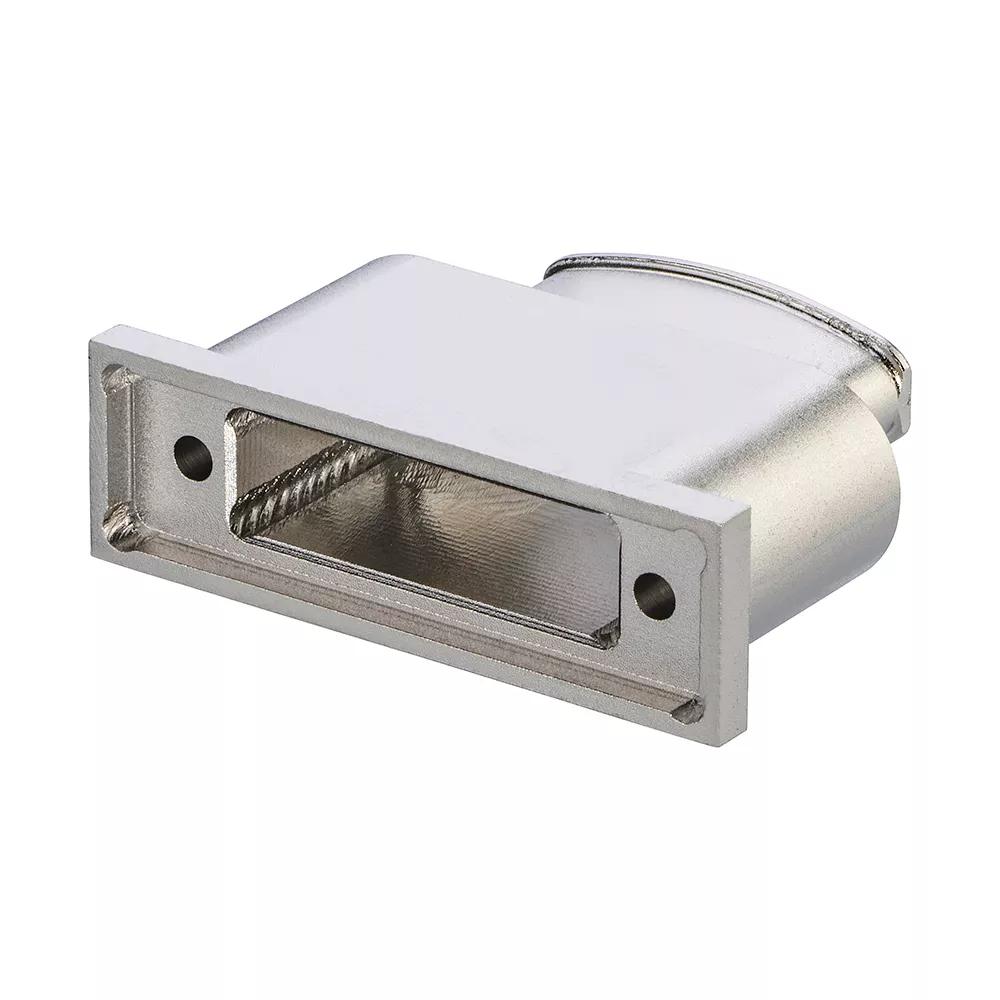

Female kit includes aluminium alloy backshell (nickel plated), 2 x slotted jackscrew, 4 x e-clip (2 as spare).
For use with female cable connectors, both J-Tek and Mix-Tek designs. Suitable for J-Tek (all signal contacts) with 20 (10+10) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
Accessory kit only - connectors to be purchased separately. BAND-IT tie M80-9470000 or M80-9480000 to be purchased separately (for attaching braid to rear of connector, see instruction sheet IS-42).
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Screw Fixing (floating) with Slotted Head
Number of Rows
2
Connector Orientation
Straight
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
20
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable
No
Materials
Housing Material
Aluminium Alloy
Packaging Style
Bulk/Loose
Housing Colour
Nickel
Dimensions
Contact Pitch
2.00mm/4.00mm (0.079"/0.157")
Weight
10.744g
Dimensions
34.20 x 30.00 x 10.70
Thread Size
M2
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-945.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Product Information
Product Training Module - Overview of the Datamate Metal Backshells range
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Panel Mount with Datamate
Product Training Module - Cable Products from Harwin
IS-42 - Datamate Metal Backshells M80-945 + M80-946 Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Datamate range: signal connectors (HRi)
Product Datasheet - Datamate Mix-Tek range (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material Composition for M80-945 series
RoHS Declaration - M80-9452002
Discover our new Cable Configurator
Specify hi-rel cable assemblies for your 'must not fail' applications.
