M80-9423405

M80-9423405

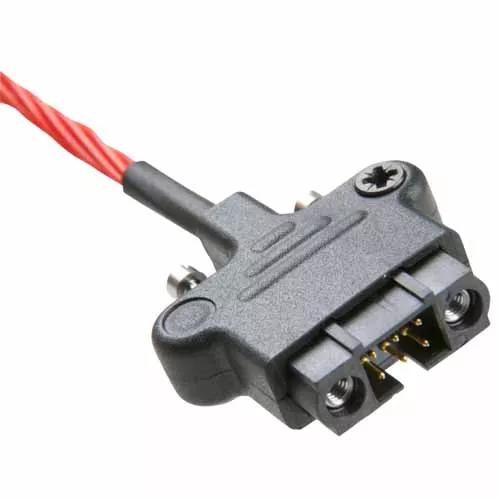

Datamate J-Tek DIL Male Small Bore (24-28 AWG) Crimp Connector, gold, with hoods + jackscrews, 17+17 contacts

HRi

Traceparts account required

M80-9423405

Datamate J-Tek DIL Male Small Bore (24-28 AWG) Crimp Connector, gold, with hoods + jackscrews, 17+17 contacts


2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Complete kit: housing with long jackscrews fitted, hood, screws and 34 x contacts loose - Gold finish on contact area and termination.

  • Small Bore - suitable for 24 to 28 AWG cable (√ò1.1mm max insulation). Spare contacts = M80-1950005.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    2.00mm (0.079")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Crimp)

  • Wire Size:

    24-28 AWG

  • Mating Pin Size:

    Ø0.5mm

  • Style of Jackscrews:

    Internal Thread Jackscrew (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    34

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Brass

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable (Crimp)

  • Current Rating:

    Dependent on mating contact

  • Weight:

    7.713g

  • Dimensions:

    53.50 x 23.55 x 7.40

  • Operating Temperature:

    -55°C to +125°C

Downloads

    Environmental Compliance

  • M80-9423405

  • Material composition for M80-942 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-942.pdf

  • Plating thickness on Datamate signal contacts & T-Contact

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • IS-26 - M80-94X Datamate Cable Hood Instruction Sheet

  • IS-25 - Z80-280 Assembly Tool Instruction Sheet

  • IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Test Reports

  • Test Report HT006 - Datamate L-Tek and J-Tek Male Crimp Retention and Integrity (Pull-Off Force)

  • Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

  • Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok

  • Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests

  • Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
