M80-9422005
10+10 Pos. Male DIL 24-28AWG Cable Conn. Kit with Hood/Backshell, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
48 in stock Check availability
5 similiar products View products
Samacsys account required
No login is required
Product Description
- Complete kit: housing with long jackscrews fitted, hood, screws and 20 x contacts loose – Gold finish on contact area and termination.
- Small Bore – suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-1950005.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Cable Conductor Size:
24-28AWG
Mating Pin Size:
Ø0.5mm
Current Rating:
Dependent on mating contact
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
Internal Thread Jackscrew (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
20
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
5.813g
Overall Dimensions (L x W x D) in mm:
39.50 x 23.55 x 7.40
Thread Size:
M2
Frequently Asked Questions Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
Was this answer useful?
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Was this answer useful?

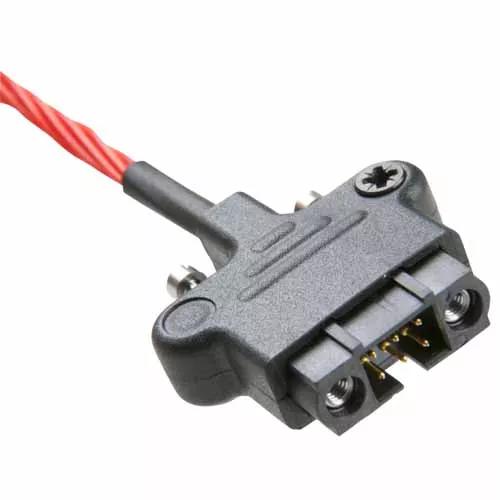

Does this part comes with wire crimped to it as shown in picture?
No it does not come pre-crimped, the photo is for illustration purposes to demonstrate a completed assembly. If you have a look at the description of the product, it mentions “Complete kit: housing with long slotted jackscrews fitted; hood, screws and crimp contacts loose”. We can assist with cable assemblies for you – please use the Contact Us form to talk to one of our Technical team about your request.
Was this answer useful?
