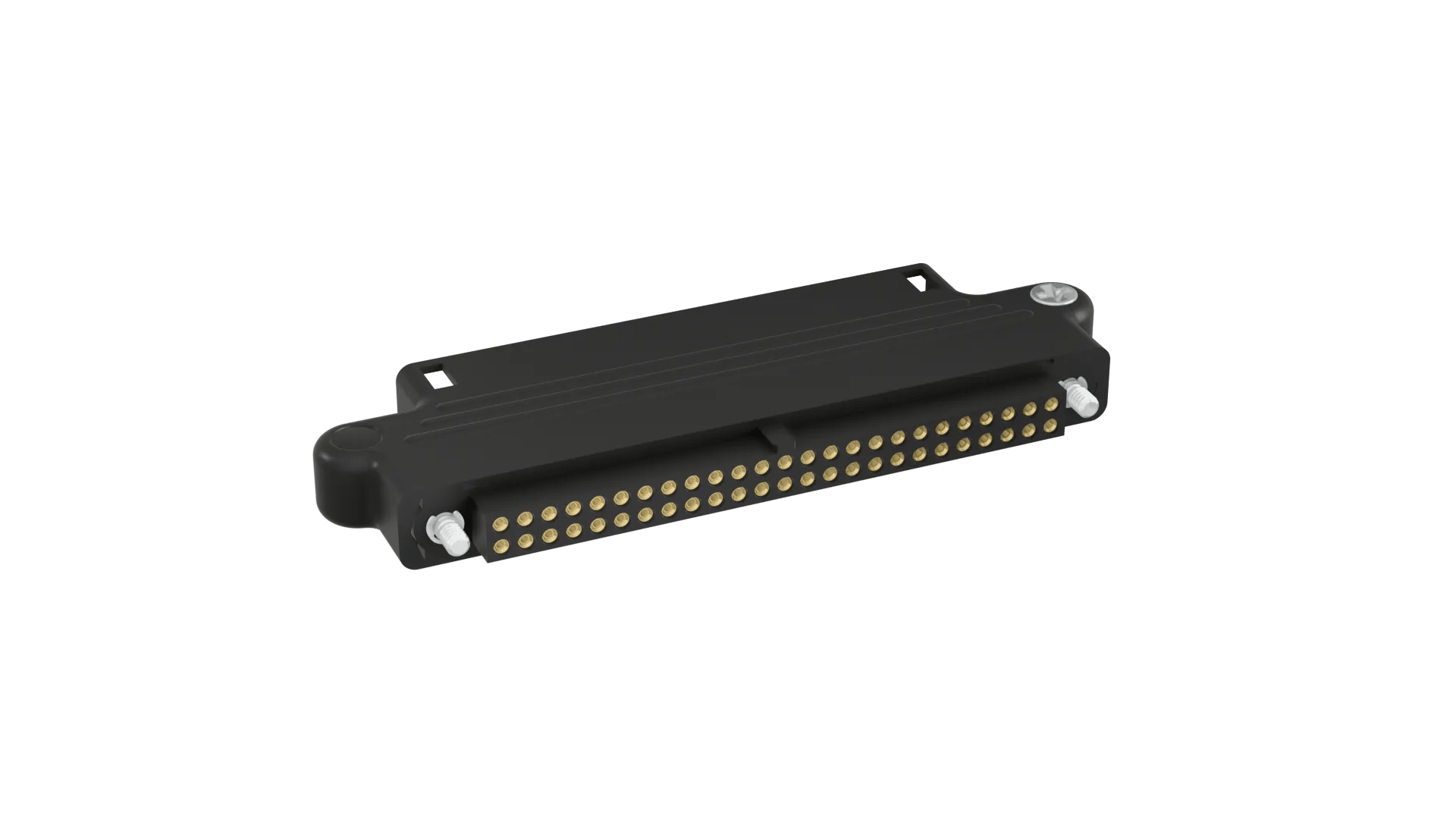

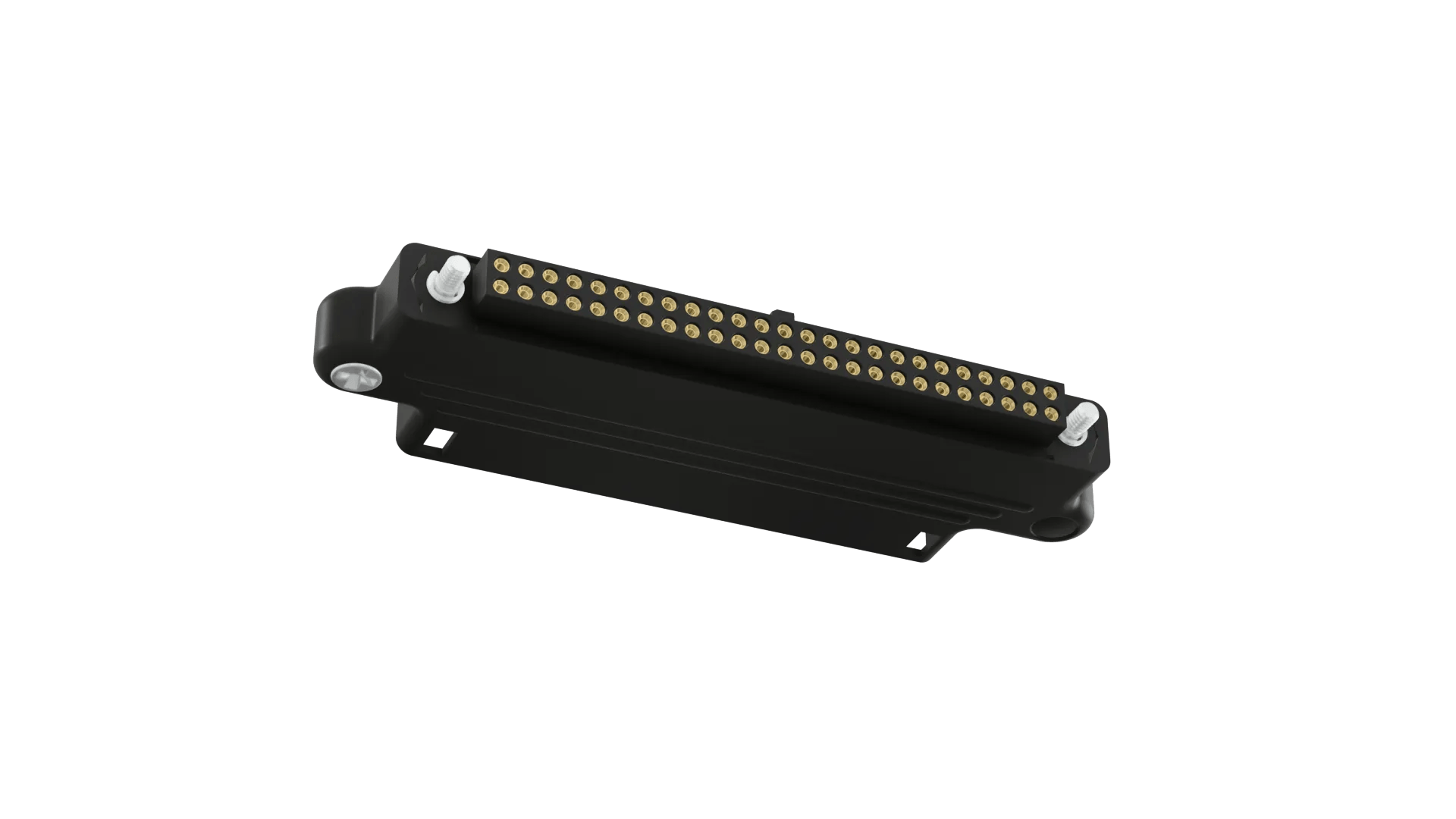

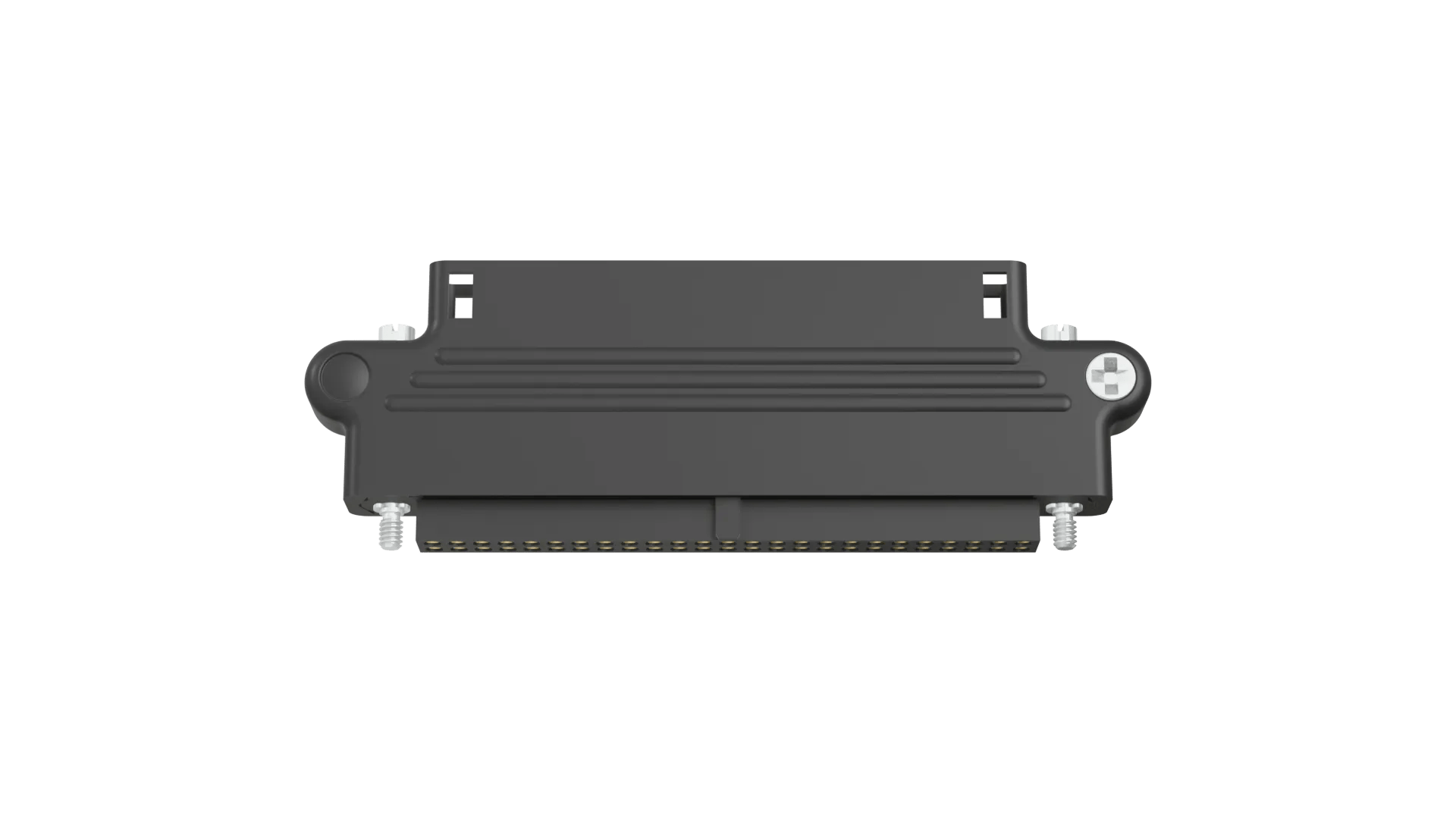

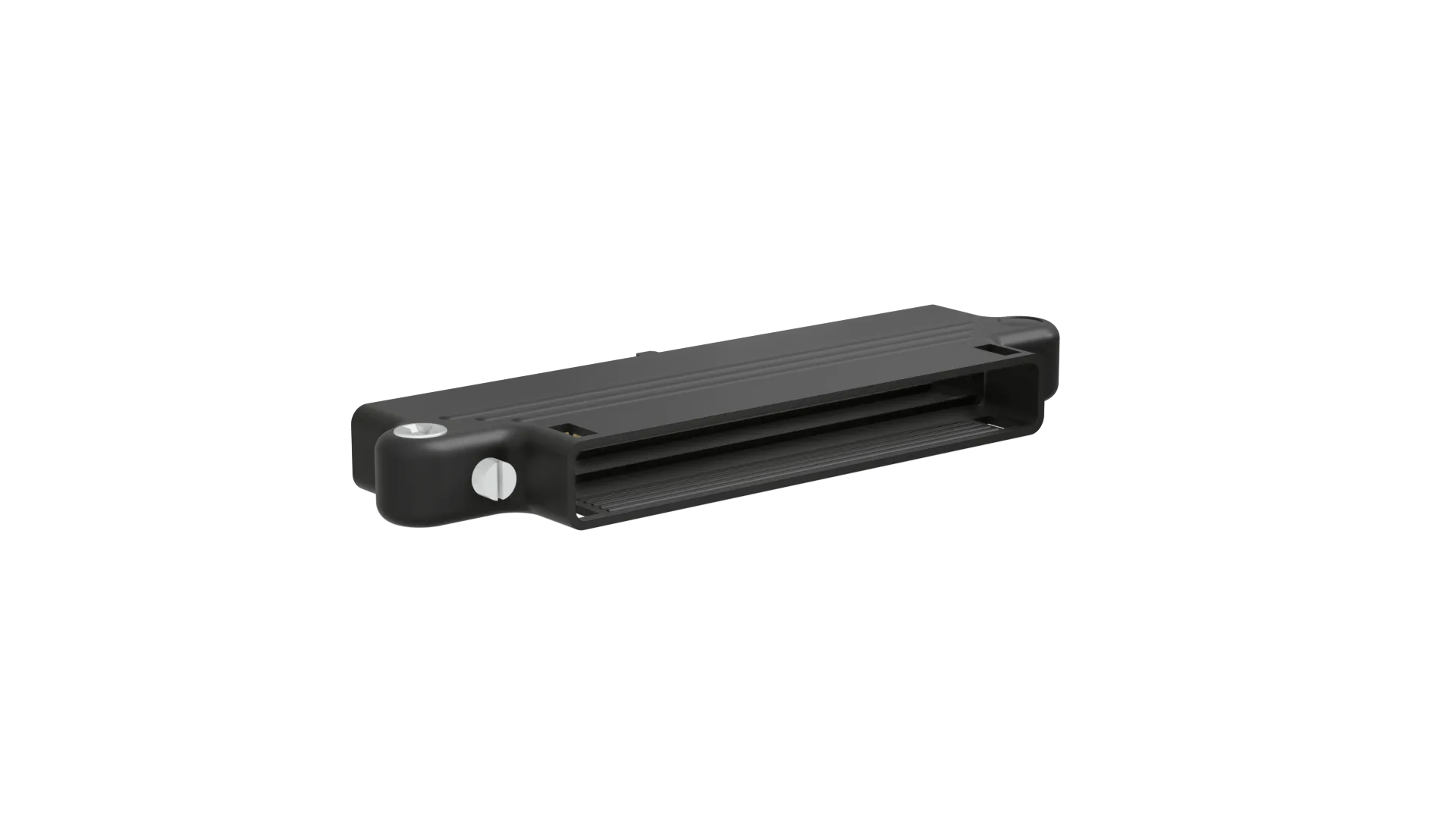

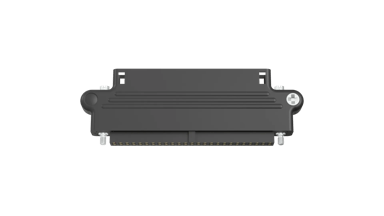

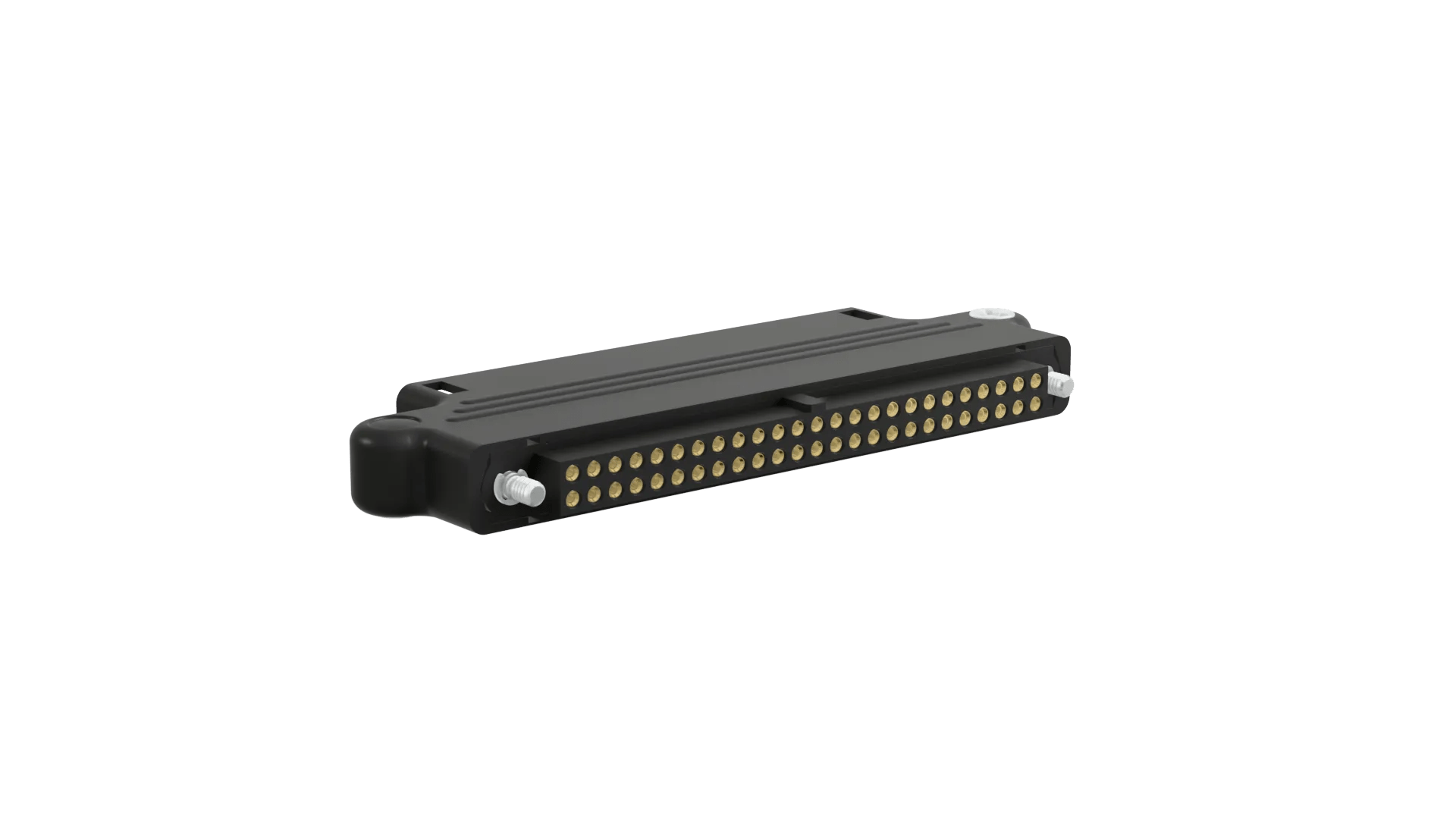

25+25 Pos. Female DIL 22AWG Cable Conn. Kit with Hood/Backshell, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Complete kit: housing with long slotted jackscrews fitted; hood, screws and 50 x barrel crimp contacts loose – Gold finish on contact clip and crimp shell.
- Large Bore – suitable for 22AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0110005.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
-55°C to +125°C
Style of Jackscrews:
Slotted, suitable for Hood
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
69.50 x 23.80 x 7.40
AvailabilityLimited availability or made-to-order
Questions & Answers Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Does this part comes with wire crimped to it as shown in picture?
No it does not come pre-crimped, the photo is for illustration purposes to demonstrate a completed assembly. If you have a look at the description of the product, it mentions “Complete kit: housing with long slotted jackscrews fitted; hood, screws and crimp contacts loose”. We can assist with cable assemblies for you – please use the Contact Us form to talk to one of our Technical team about your request.
M80-9415005 CAD Model (ZIP file containing STP)Download
Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests
Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance
