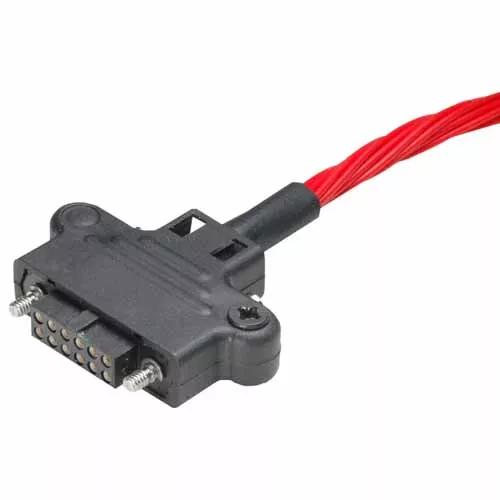

21+21 Pos. Female DIL 22AWG Cable Conn. Kit with Hood/Backshell, Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Complete kit: housing with long slotted jackscrews fitted; hood, screws and 42 x barrel crimp contacts loose – Gold finish on contact clip and crimp shell.
- Large Bore – suitable for 22AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0110005.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
-55°C to +125°C
Style of Jackscrews:
Slotted, suitable for Hood
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
61.50 x 23.80 x 7.40
*Stock available: contact distributor to purchase
Questions & Answers Ask a Question
No questions have been asked yet
Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests
Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance
