M80-9230099
Female Contact with 24AWG wire, 300mm, double-end
2.00mm Pitch High-Reliability Connector - Datamate
602 in stock Check availability
6 similiar products View products
Samacsys account required
No login is required
Product Description

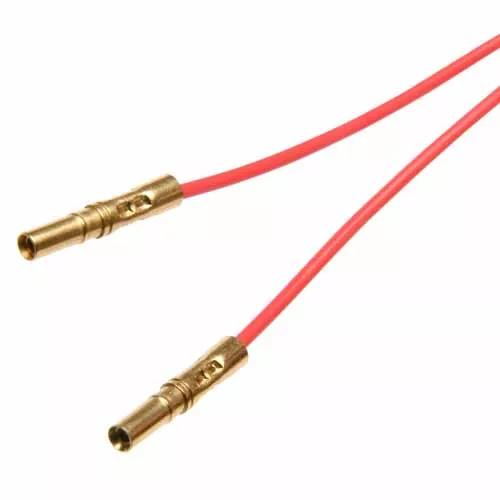

- Single Pre-Crimped Contact, Female-to-Female with red 24 AWG cable, 300mm long.
- Uses M80-0130005 crimp contact, can be used in any type of female Datamate (L-Tek, J-Tek, Mix-Tek, etc.).
- Gold finish on contact area.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Cable Conductor Size:
24AWG
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Number of Signal Contacts:
2
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.822g
Overall Dimensions (L x W x D) in mm:
300.00 x Ø1.46
Frequently Asked Questions Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
Was this answer useful?
Downloads
TECHNICAL DOCUMENTS
TEST REPORTS
INSTRUCTION SHEETS
OTHER DOWNLOADS
