M80-9190099

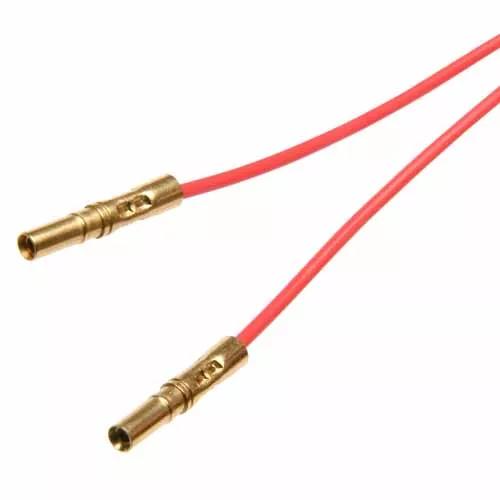

Datamate Female Crimp Contact with cable assembled, 24 AWG wire, 150mm long, double ended

HRi

Traceparts account required

M80-9190099

Datamate Female Crimp Contact with cable assembled, 24 AWG wire, 150mm long, double ended


2.00mm Pitch High-Reliability Connector - Datamate

  • Single Pre-Crimped Contact, Female-to-Female with red 24 AWG cable, 150mm (6") long.

  • Uses M80-0130005 crimp contact, can be used in any type of female Datamate (L-Tek, J-Tek, Mix-Tek, etc.).

  • Gold finish on contact area.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • Mating Pin Size:

    Ø0.5mm

  • Connector Orientation:

    Straight

  • Country of Origin:

    TW/US

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    3.3A max individual contact, 3A max simultaneous (25°C)

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper contact clip, Brass shell

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    Gold

Dimensions

  • Contact Pitch:

    2.00mm (0.079")

  • Weight:

    0.465g

  • Dimensions:

    150.00 x √ò1.46

  • Wire Size:

    24 AWG

Downloads

    Product Information

  • IS-25 - Z80-280 Assembly Tool Instruction Sheet

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-918-925.pdf

  • Plating thickness on Datamate signal contacts & T-Contact

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M80-9190099

  • Material composition for M80-918 to 921 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Test Reports

  • Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

  • Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
