Home > M80-9100099
Active Product

M80-9100099

Female Contact with 22AWG wire, 150mm, single-end

2.00mm Pitch High-Reliability Connector - Datamate

Add to Favorites

3,269 in stock   Check availability

5 similiar products View products

Samacsys account required

Download

No login is required

Product Description

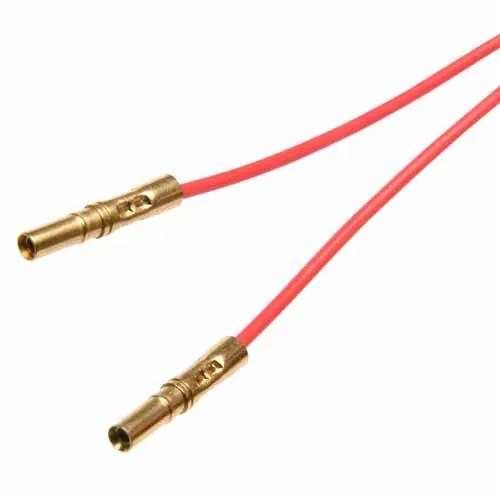

  • Single Pre-Crimped Contact, Female Single-Ended with red 22 AWG cable, 150mm long.
  • Uses M80-0110005 crimp contact, can be used in any type of female Datamate (L-Tek, J-Tek, Mix-Tek, etc.).
  • Gold finish on contact area.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.468g

Overall Dimensions (L x W x D) in mm:

150.00 x Ø1.46

Frequently Asked Questions Ask a Question

What’s the voltage rating for this wire?

The wire used for these pre-cabled contacts is manufactured to BS 3G 210 Type A wire. It has a voltage rating of 300Vrms.

Was this answer useful?

What is the wire specification for M80-9100099?

The wire specification is shown on the Technical Drawing, available via the Downloads section. The drawing states BS 3G 210 Type A, which is a silver-plated copper conductor wire with a PTFE insulation. The insulation color is red.

Was this answer useful?

When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
