M80-9064802
24+24 Pos. Male Vertical Metal Backshell for J-Tek or Mix-Tek
2.00mm Pitch High-Reliability Connector - Datamate
Made to order
3 similiar products View products
Samacsys account required
No login is required
Product Description

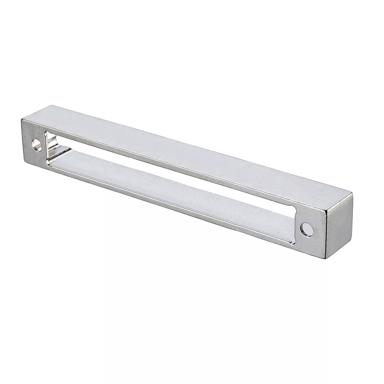

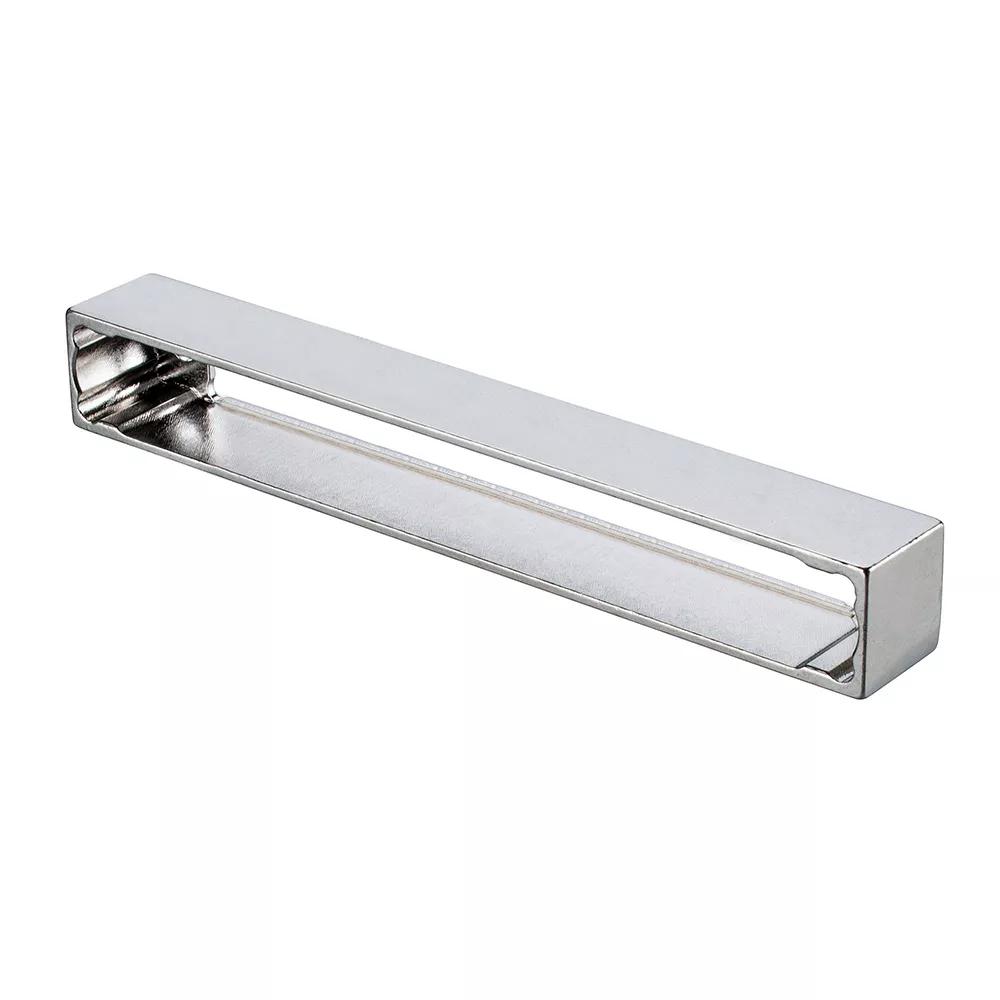

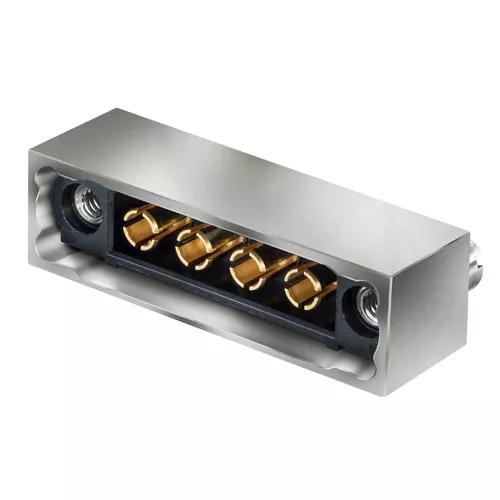

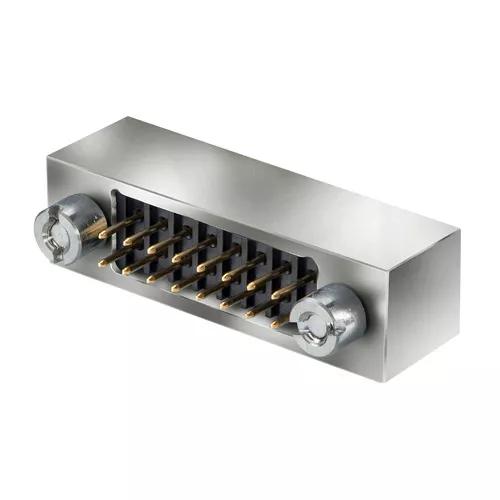

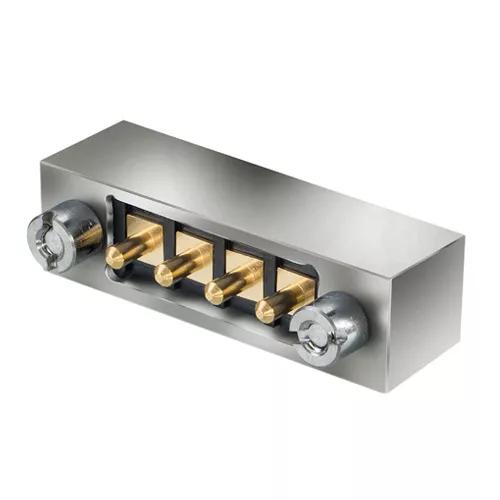

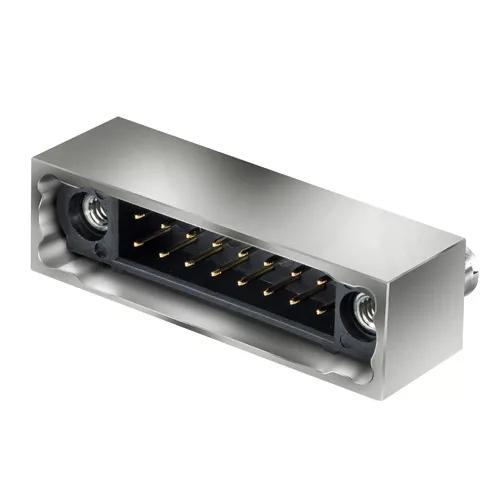

- Aluminium alloy Metal Backshell with nickel plating, for front panel mounted cable connectors or vertical PCB-mounted connectors.
- Suitable for J-Tek (all signal contacts) with 48 (24+24) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
- Accessory only – connectors to be purchased separately.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Connector Orientation:
Vertical
Connection Type:
Front Panel Mount or Board Mount
Operating Temperature:
-55°C to +125°C
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
48
Materials
Housing Material:
Aluminium Alloy
Housing Colour:
Nickel
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
2.607g
Overall Dimensions (L x W x D) in mm:
59.70 x 8.00 x 7.70
Height of Connector above PCB:
8.00mm
