M80-9063602

18+18 Pos. Male Vertical Metal Backshell for J-Tek or Mix-Tek

2.00mm Pitch High-Reliability Connector - Datamate

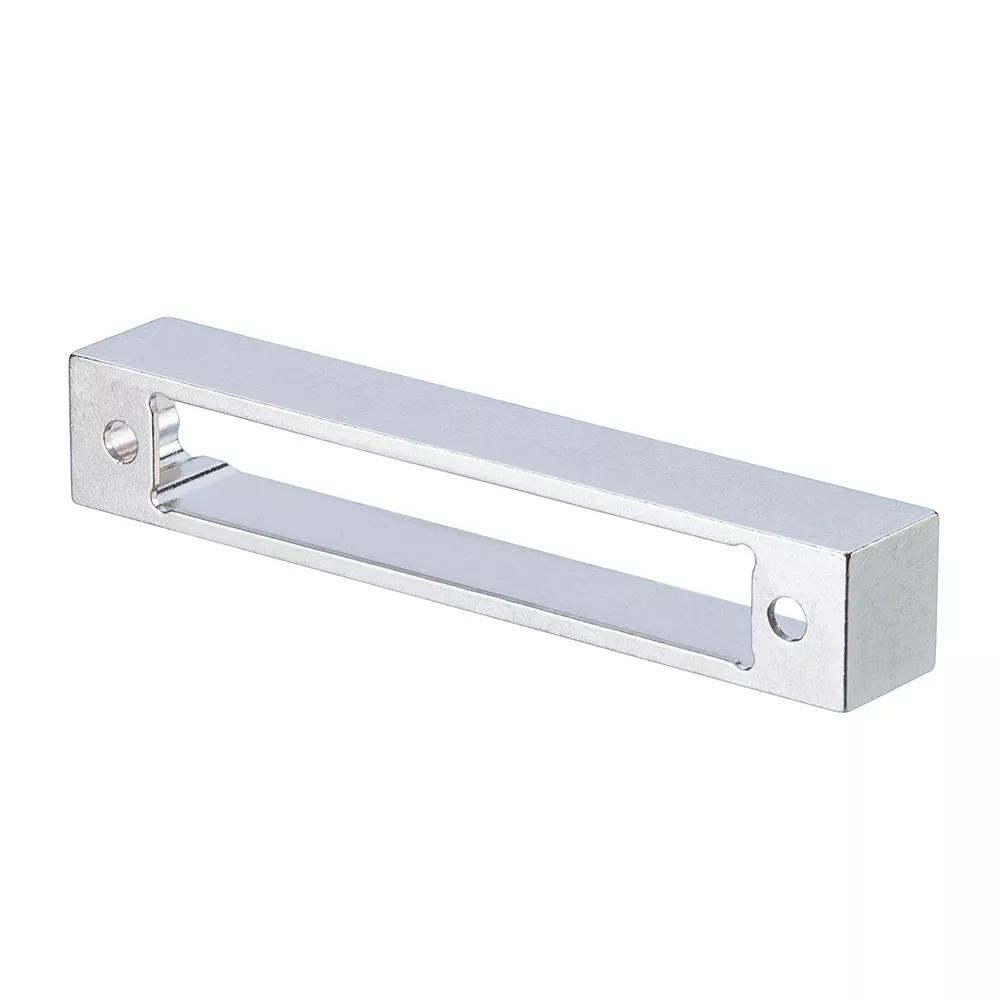

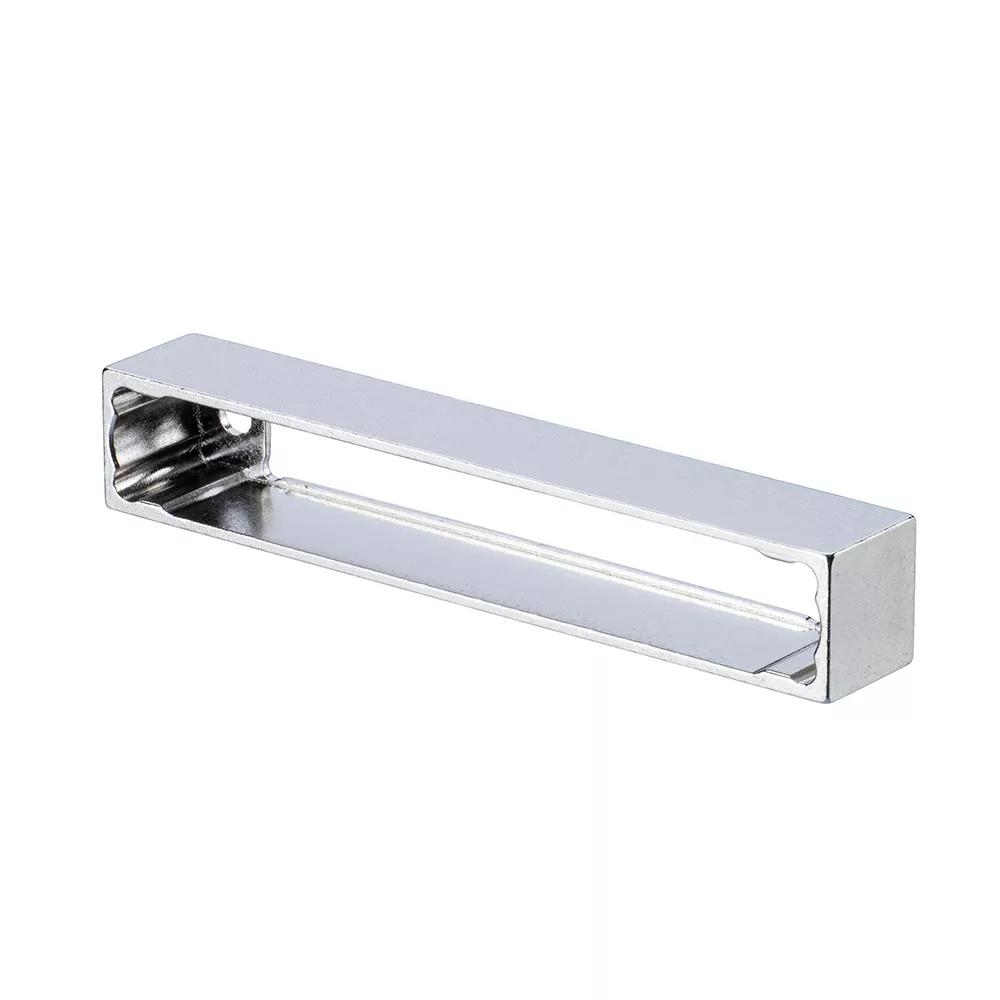

  • Aluminium alloy Metal Backshell with nickel plating, for front panel mounted cable connectors or vertical PCB-mounted connectors.

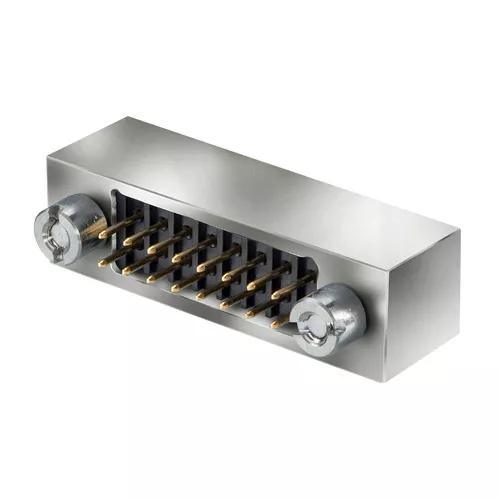

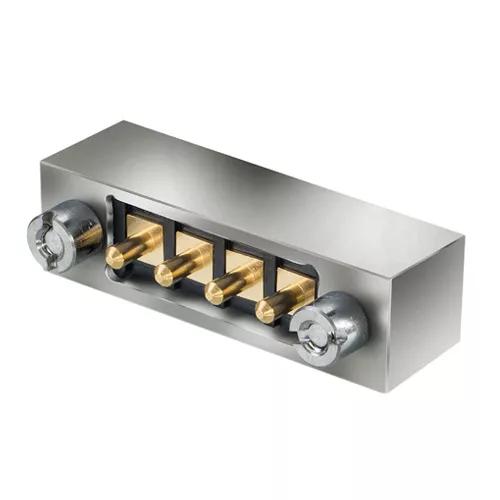

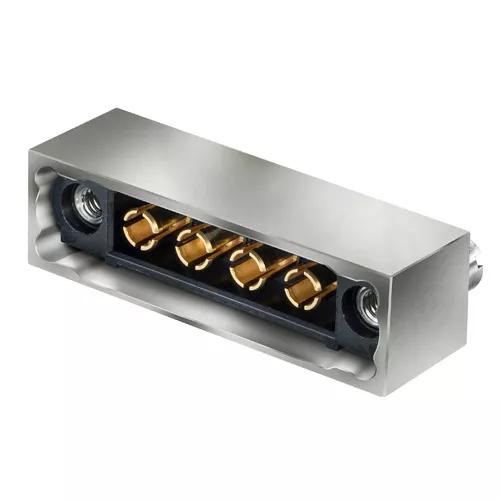

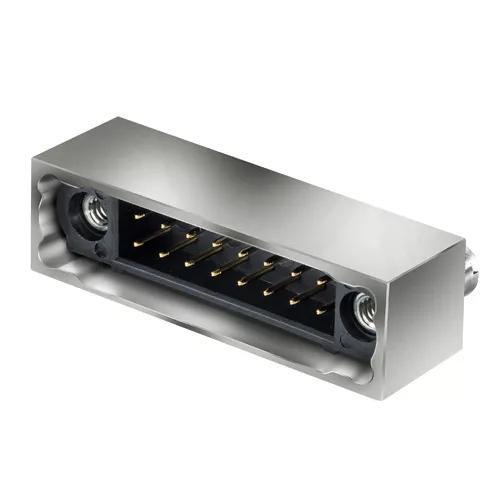

  • Suitable for J-Tek (all signal contacts) with 36 (18+18) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
  • Accessory only – connectors to be purchased separately.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Connector Orientation:

Straight

Connection Type:

Panel Mount or Board Mount

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

36

Materials

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

2.171g

Overall Dimensions (L x W x D) in mm:

47.70 x 8.00 x 7.70

Height of Connector above PCB:

8.00mm

Availability

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-906.pdf

ZIP

M80-9063602 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C042XX Component Specification - Datamate Metal Backshells (for J-Tek and Mix-Tek connectors)

TEST REPORTS

PDF

C042XX Component Specification - Datamate Metal Backshells (for J-Tek and Mix-Tek connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material Composition for M80-906 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Datamate Metal Backshells range

PDF

Product Training Module - Panel Mount with Datamate

OTHER DOWNLOADS

PDF

Catalog page - Datamate Mix-Tek Metal Backshells

PDF

Catalog page - Datamate J-Tek Male Metal Backshell

PDF

Catalog page - Datamate Introduction

PDF

Product Summary - Datamate Metal Backshells for J-Tek and Mix-Tek

PDF

Product Summary - Datamate J-Tek High-Reliability Connectors
