Home > M80-9062802
Active Product

M80-9062802

14+14 Pos. Male Vertical Metal Backshell for J-Tek or Mix-Tek

2.00mm Pitch High-Reliability Connector - Datamate

Add to Favorites

Loading…   Check availability

3 similar products View products

Traceparts account required

Product Description

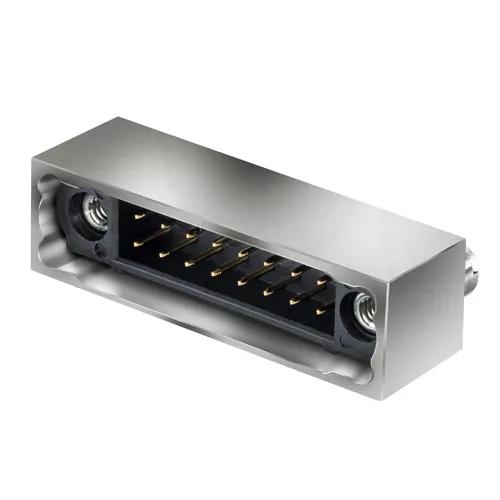

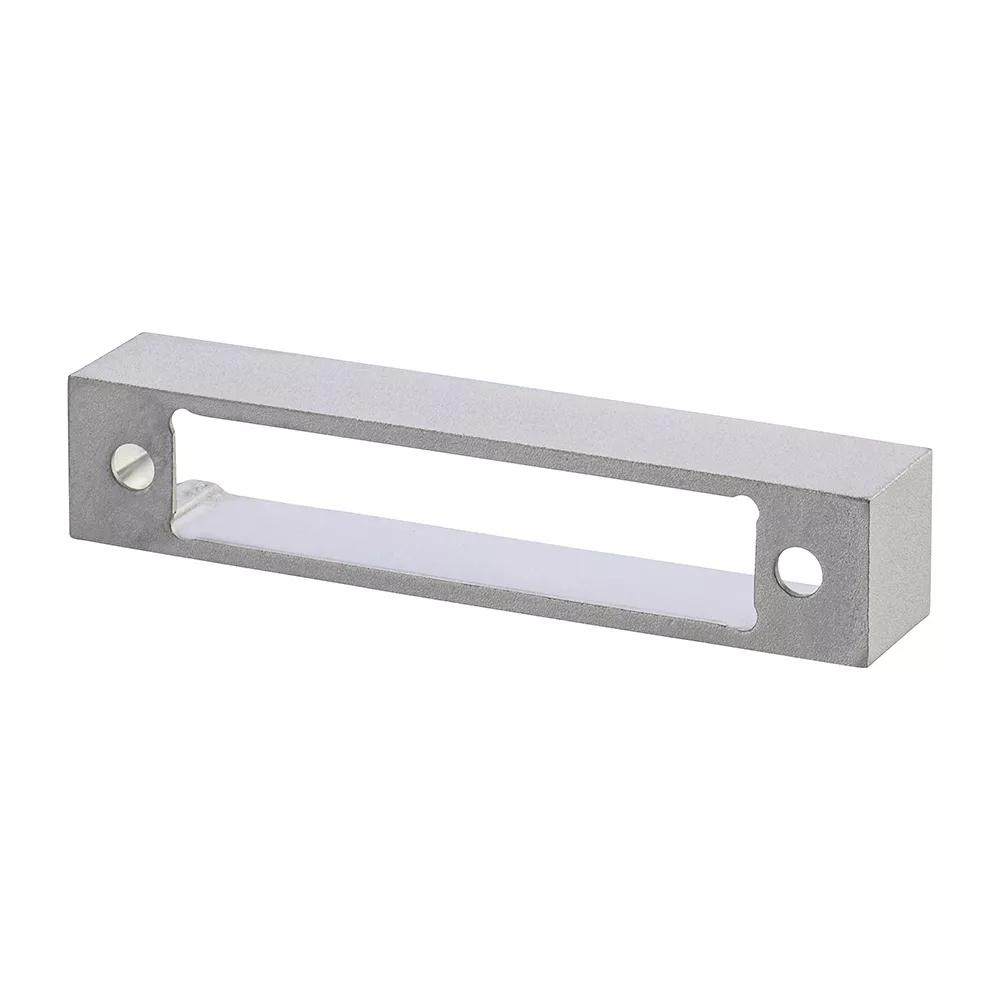

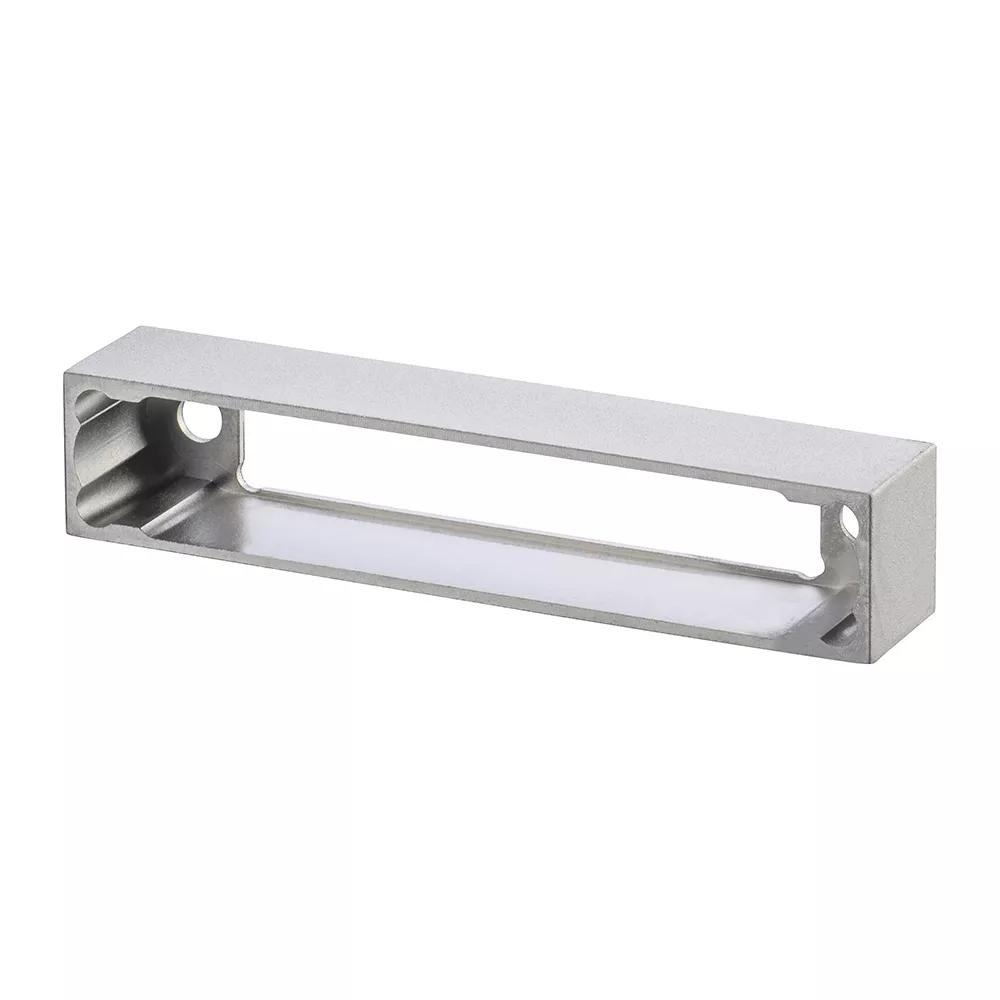

  • Aluminium alloy Metal Backshell with nickel plating, for front panel mounted cable connectors or vertical PCB-mounted connectors.

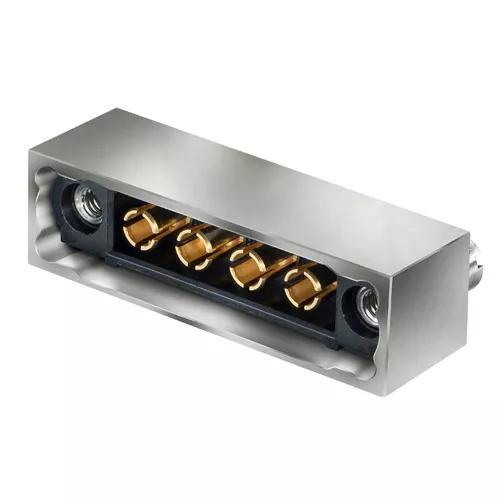

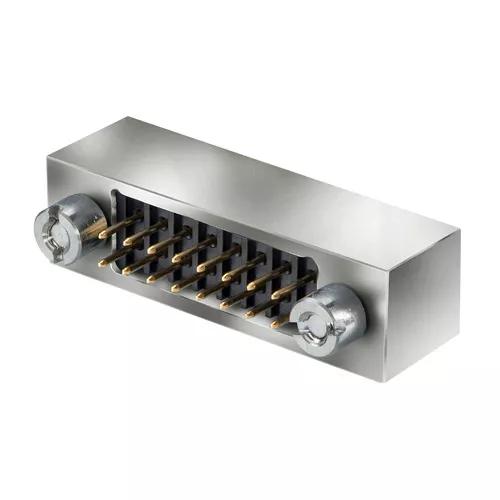

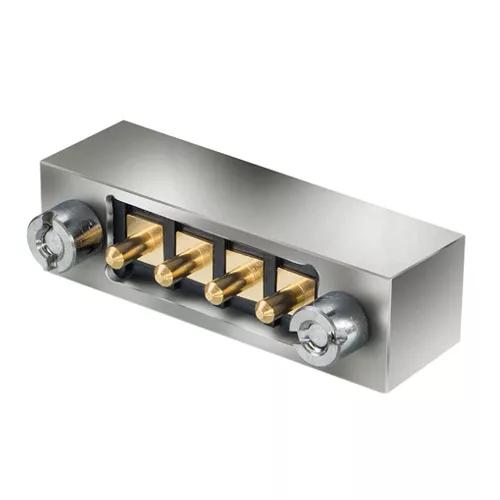

  • Suitable for J-Tek (all signal contacts) with 28 (14+14) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
  • Accessory only – connectors to be purchased separately.

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Connector Orientation:

Vertical

Connection Type:

Front Panel Mount or Board Mount

Operating Temperature:

-55°C to +125°C

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

28

Materials

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.826g

Overall Dimensions (L x W x D) in mm:

39.70 x 8.00 x 7.70

Height of Connector above PCB:

8.00mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
