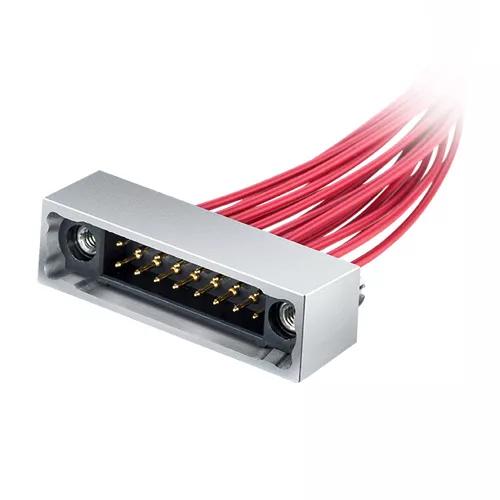

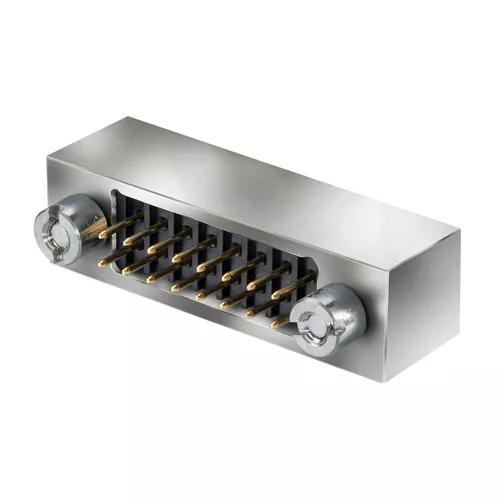

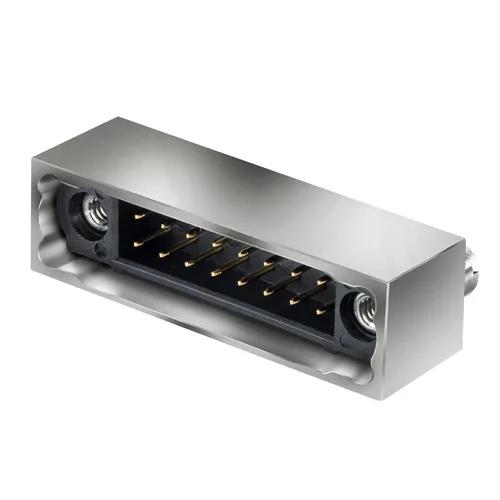

10+10 Pos. Male Metal Backshell for J-Tek or Mix-Tek
2.00mm Pitch High-Reliability Connector - Datamate

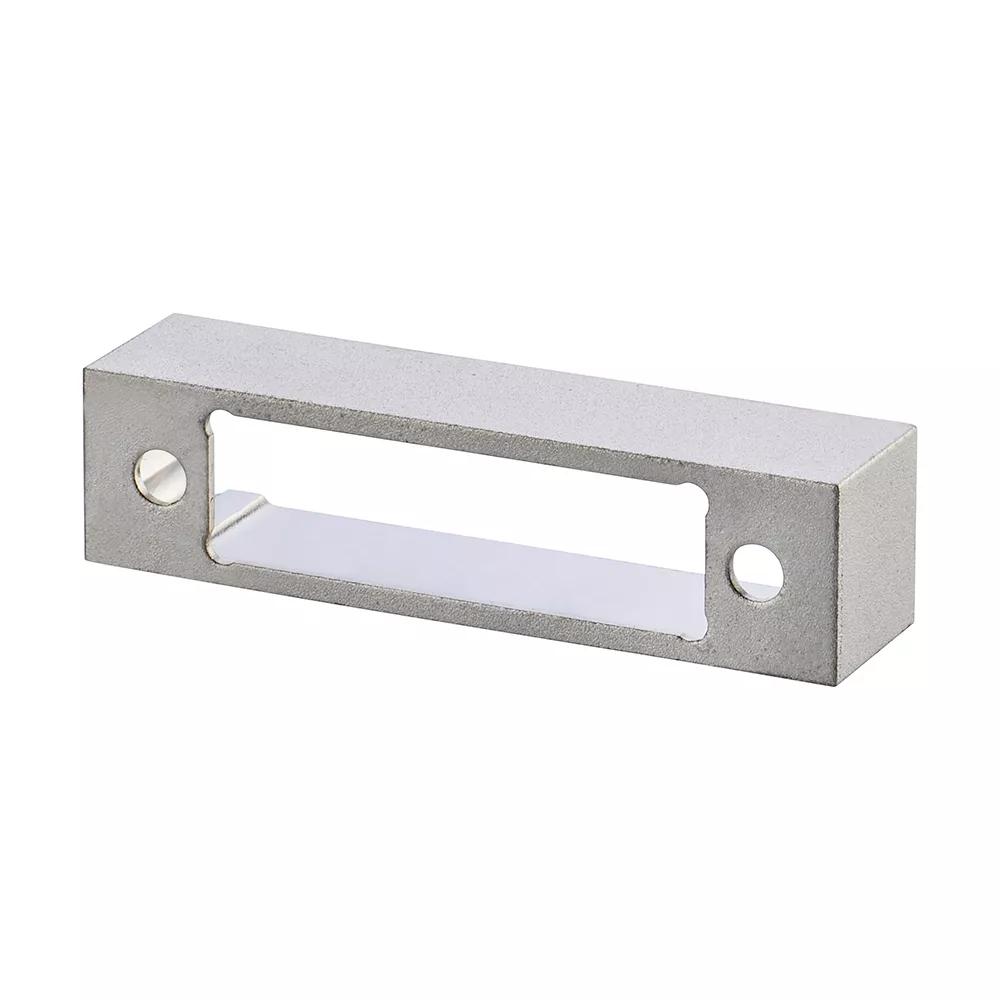

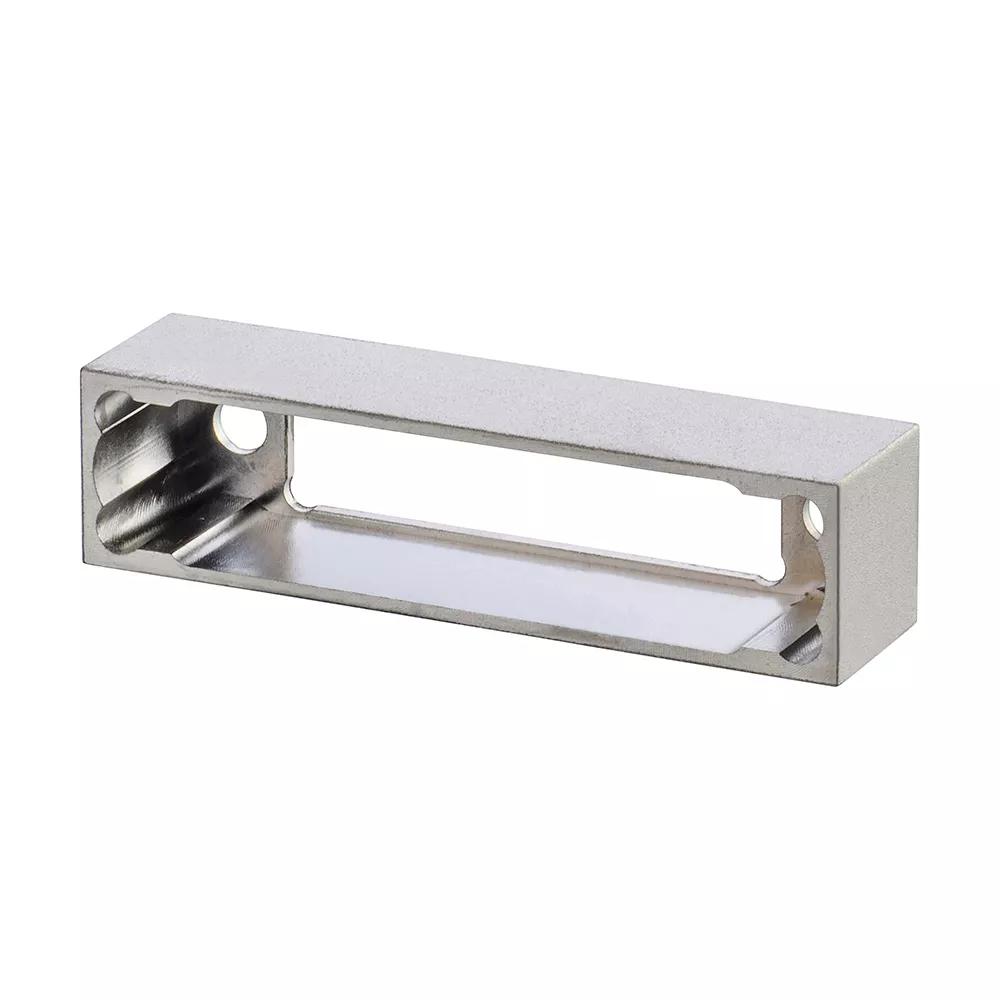

- Aluminium alloy Metal Backshell with nickel plating, for panel mount (cable and PCB connectors).

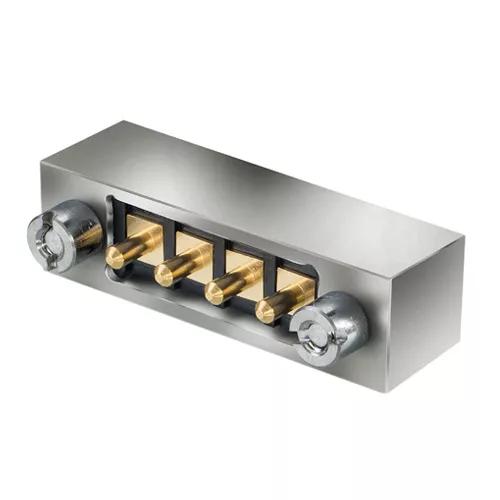

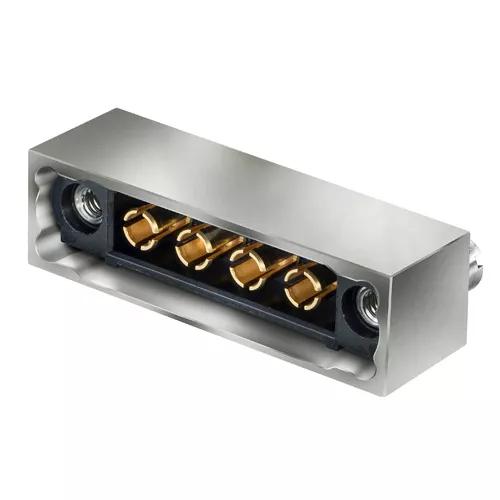

- Suitable for J-Tek (all signal contacts) with 20 (10+10) contacts, or equivalent sized Mix-Tek connectors.
- Accessory kit only – connectors to be purchased separately.
EU RoHS Status:
-55°C to +125°C
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
31.70 x 8.00 x 7.70
Height of Connector above PCB:
M80-9062002 CAD Model (ZIP file containing STP and IGES)Download
