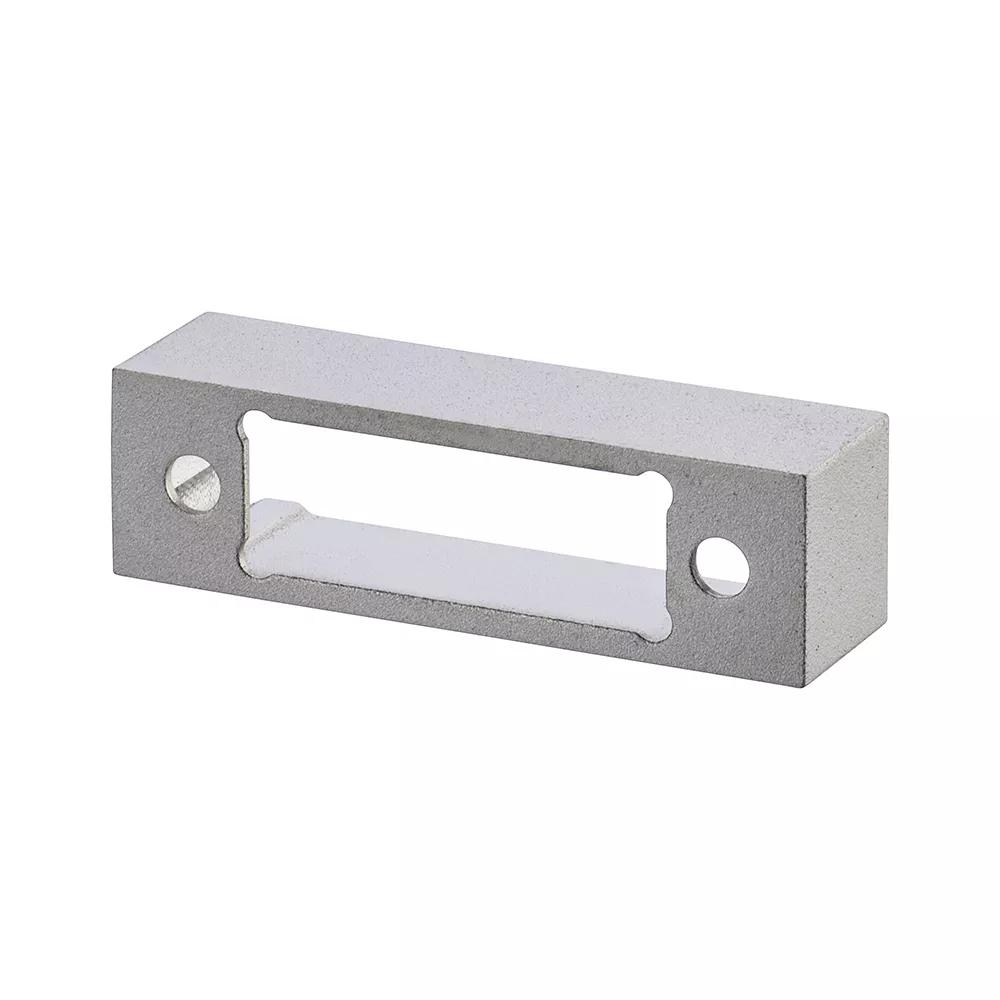

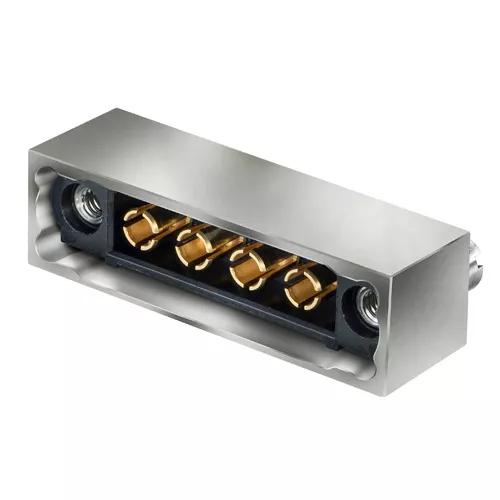

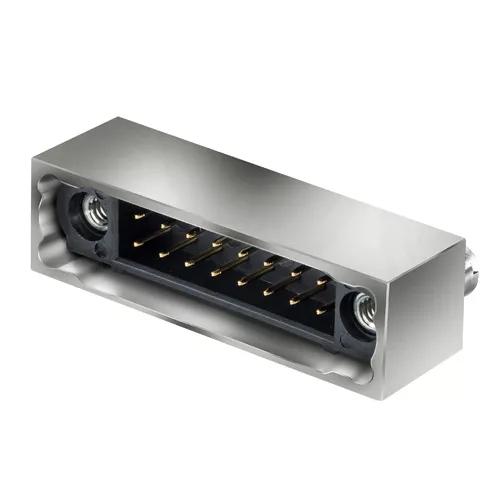

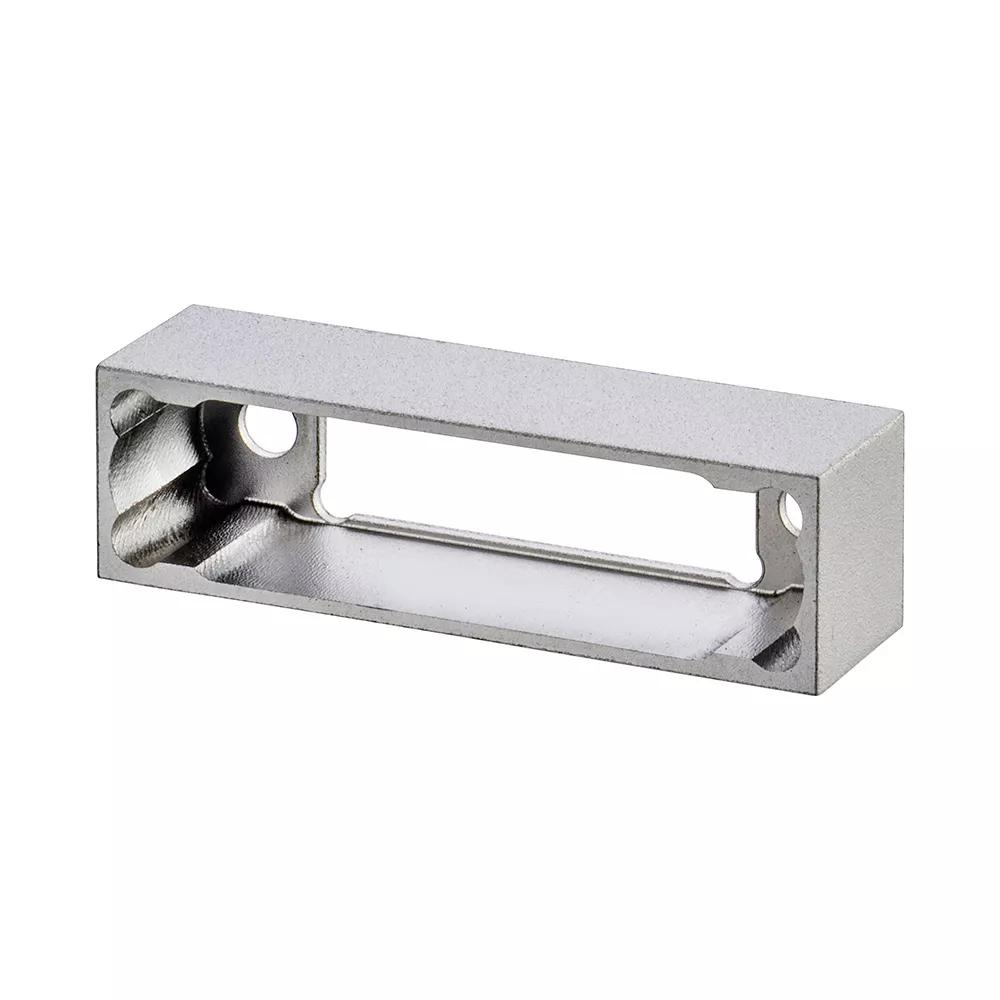

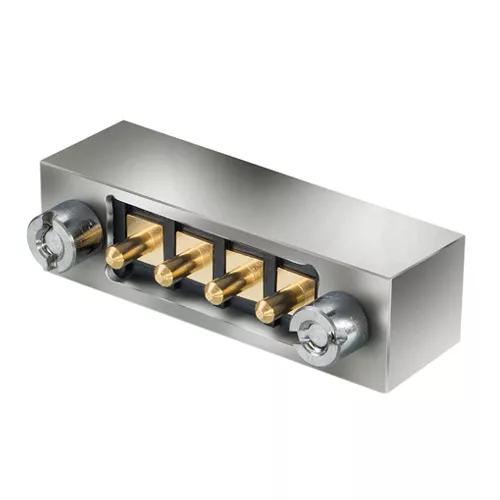

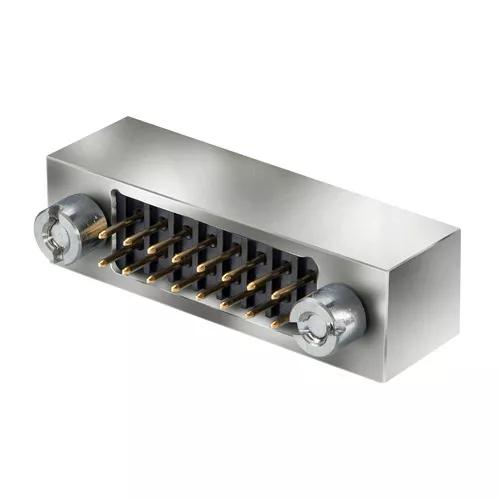

Aluminium alloy Metal Backshell with nickel plating, for front panel-mounted straight cable connectors or straight (vertical) throughboard PCB-mounted connectors. Not suitable for right-angle or surface mount connectors.
Suitable for Datamate J-Tek (all signal contacts) with 16 contacts (8+8), or equivalent-sized Datamate Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
Accessory only - connectors to be purchased separately. Compatible with connectors featuring 5mm board or panel-mount threaded jackscrew studs
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Compatible with Board Mount
Number of Rows
2
Connector Orientation
Straight
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
16
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable
No
Materials
Housing Material
Aluminium Alloy
Packaging Style
Bulk/Loose
Housing Colour
Nickel
Dimensions
Contact Pitch
2.00mm/4.00mm (0.079"/0.157")
Weight
1.398g
Dimensions
27.70 x 8.00 x 7.70
Height of Connector above PCB
8.00mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-906.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Product Information
Product Training Module - Overview of the Datamate Metal Backshells range
Product Training Module - Panel Mount with Datamate
Product Datasheet - Datamate range: signal connectors (HRi)
Product Datasheet - Datamate Mix-Tek range (HRi)
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material Composition for M80-906 series
Harwin REACH Statement - M80-9061602
RoHS Declaration - M80-9061602
Discover our new Cable Configurator
Specify hi-rel cable assemblies for your 'must not fail' applications.
