Image may be representative. Refer to the product title for more information.

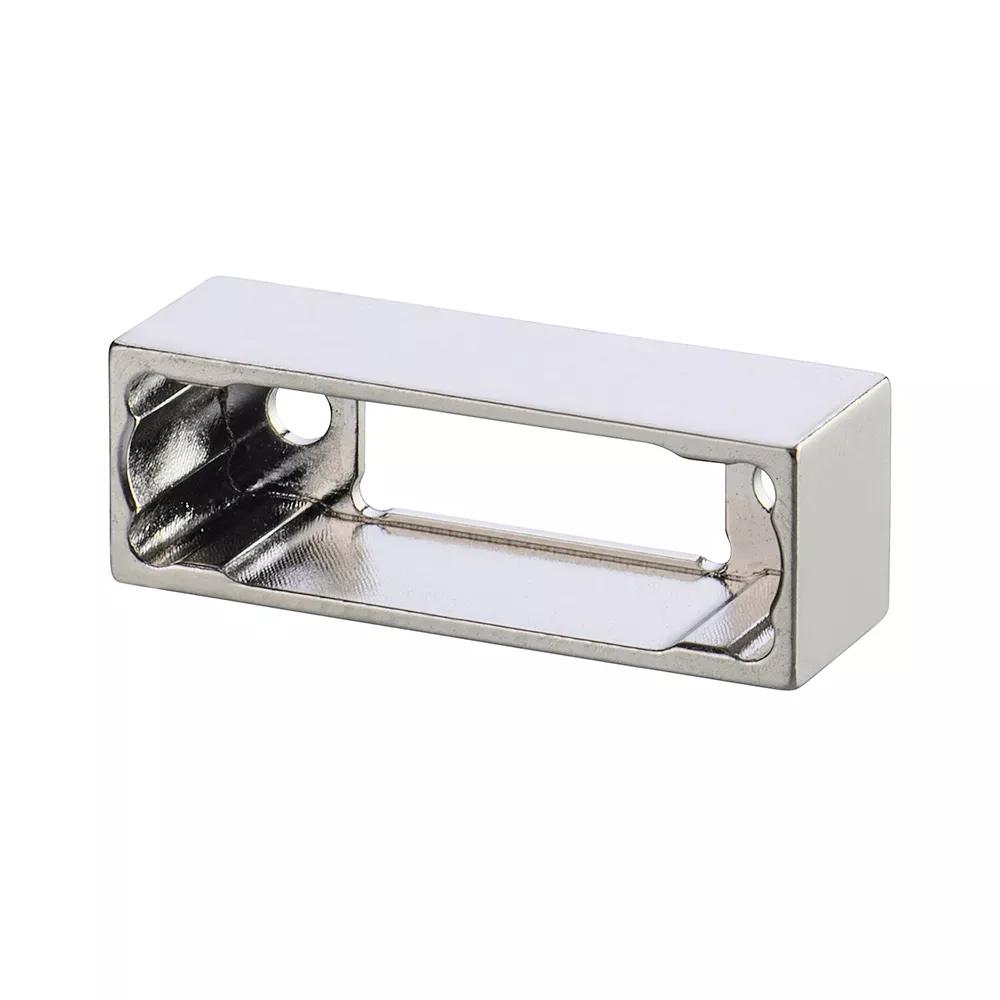

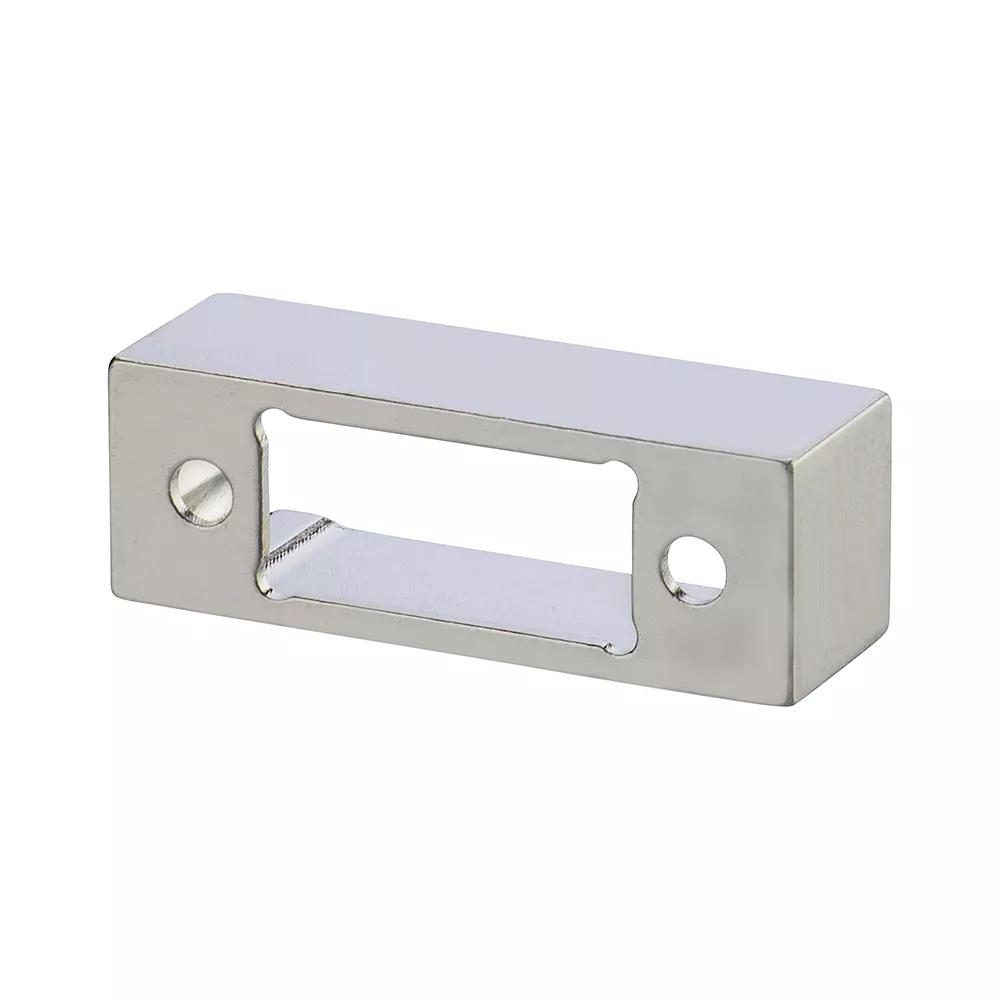

Aluminium alloy Metal Backshell with nickel plating, for front panel mounted cable connectors or vertical PCB-mounted connectors.

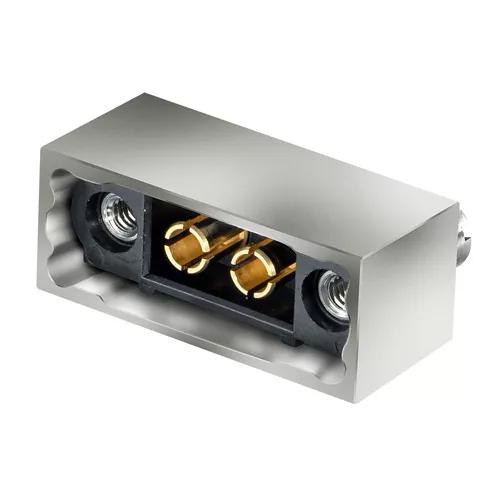

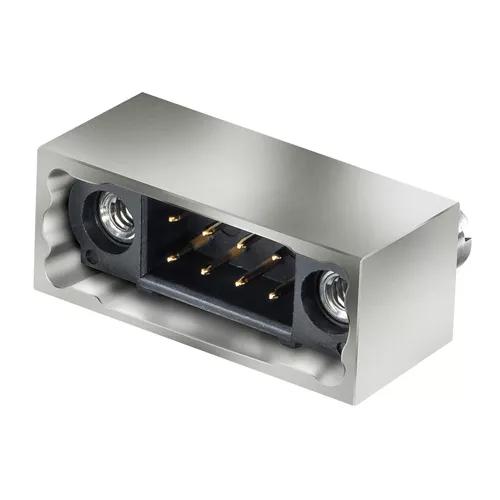

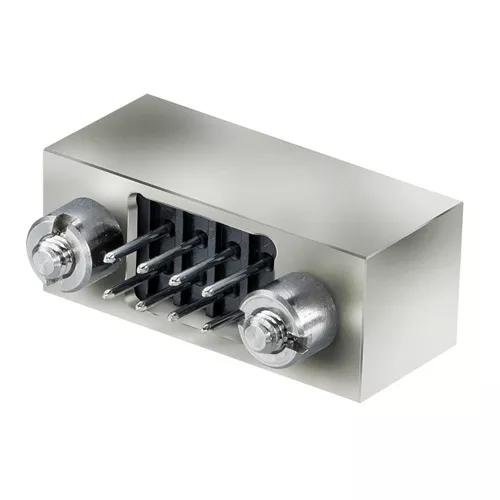

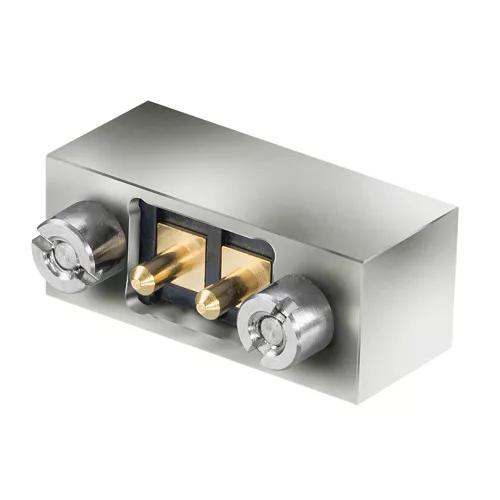

Suitable for J-Tek (all signal contacts) with 12 (6+6) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
Accessory only - connectors to be purchased separately.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Compatible with Board Mount
Number of Rows
2
Connector Orientation
Vertical
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
12
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable
No
Materials
Housing Material
Aluminium Alloy
Packaging Style
Bulk/Loose
Housing Colour
Nickel
Dimensions
Contact Pitch
2.00mm/4.00mm (0.079"/0.157")
Weight
1.255g
Dimensions
23.70 x 8.00 x 7.70
Height of Connector above PCB
8.00mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-906.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Product Information
Product Training Module - Overview of the Datamate Metal Backshells range
Product Training Module - Panel Mount with Datamate
Product Datasheet - Datamate range: signal connectors (HRi)
Product Datasheet - Datamate Mix-Tek range (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material Composition for M80-906 series
RoHS Declaration - M80-9061202
