M80-9061002

5+5 Pos. Male Vertical Metal Backshell for J-Tek or Mix-Tek


2.00mm Pitch High-Reliability Connector - Datamate

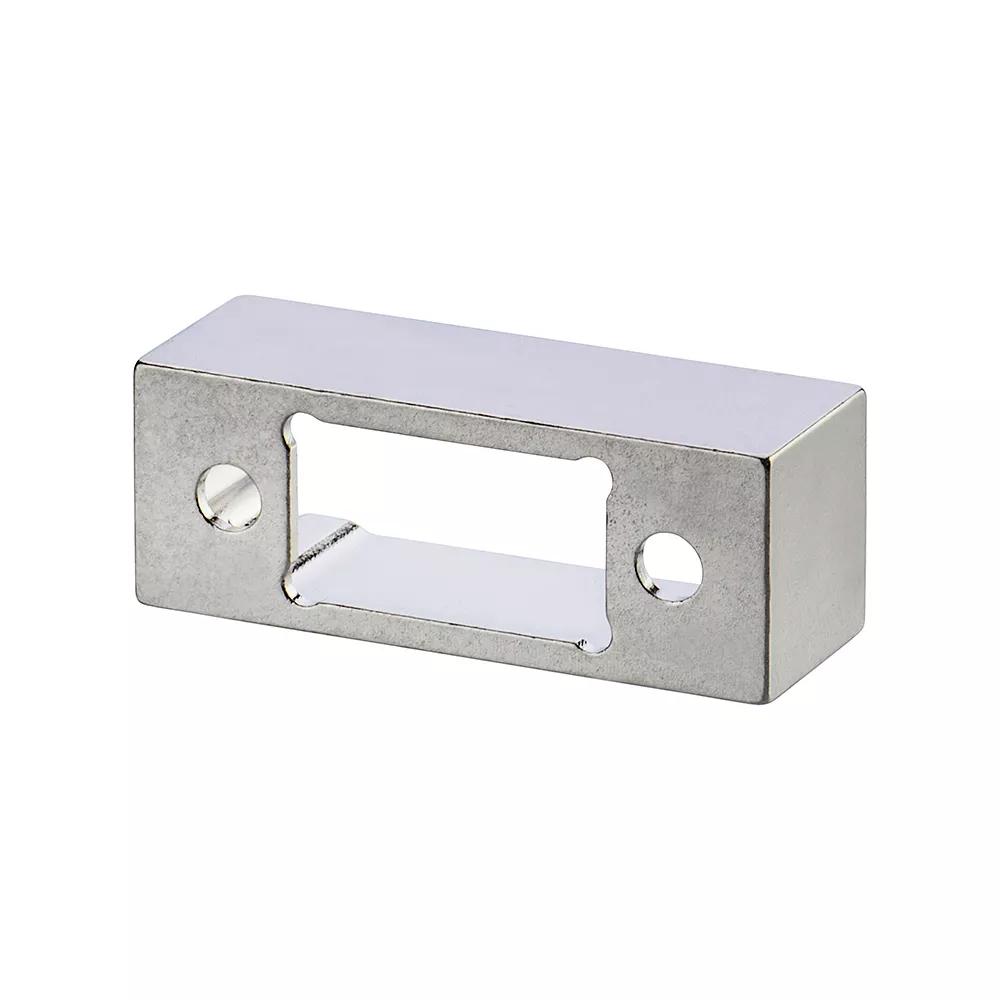

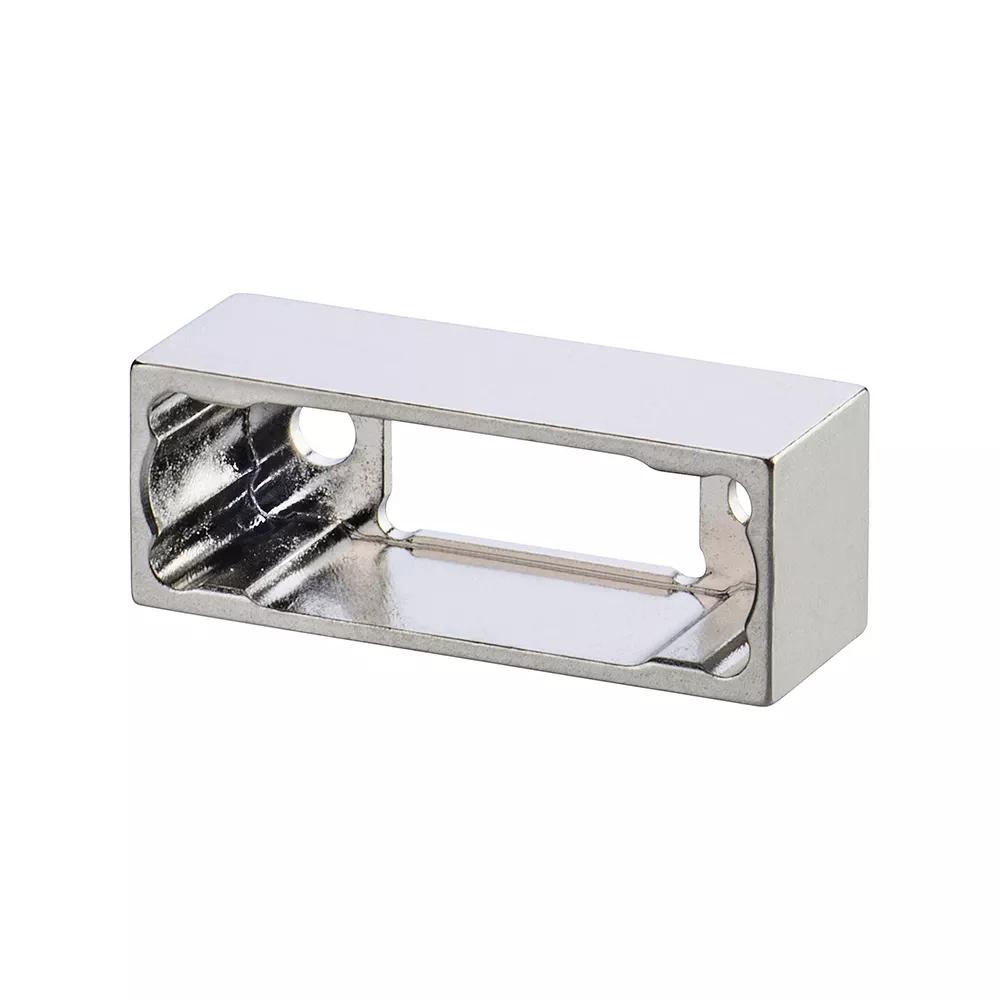

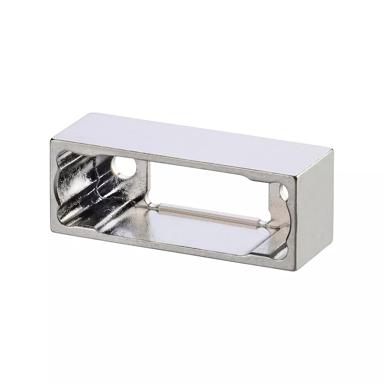

  • Aluminium alloy Metal Backshell with nickel plating, for front panel mounted cable connectors or vertical PCB-mounted connectors.

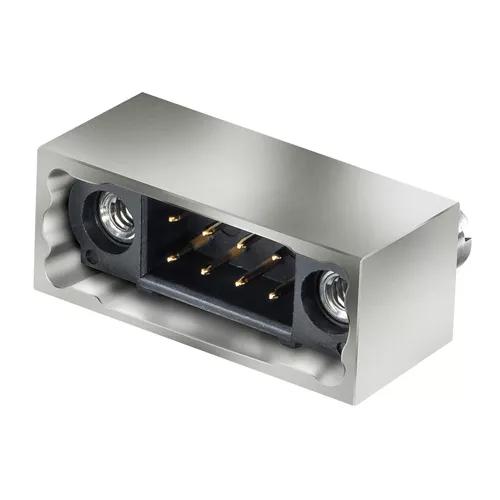

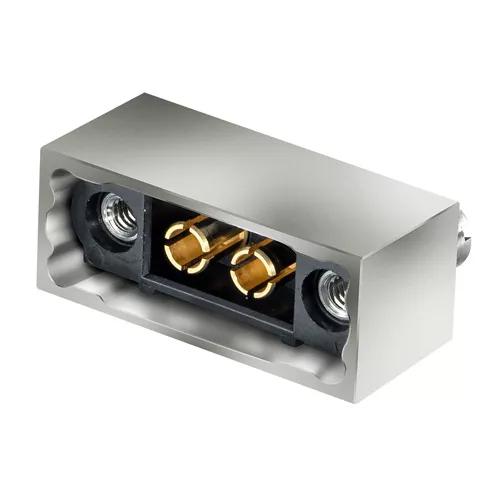

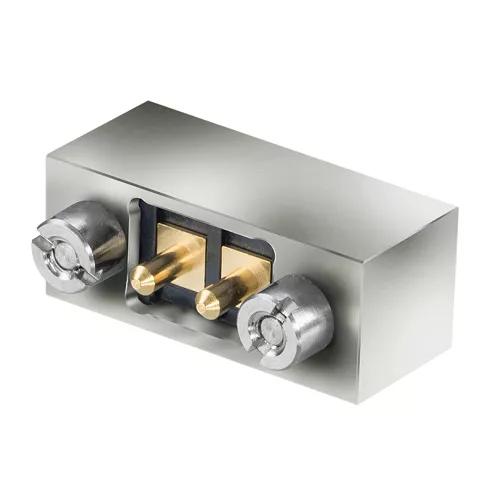

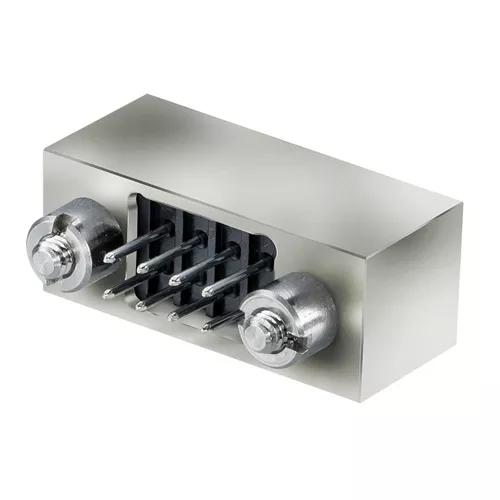

  • Suitable for J-Tek (all signal contacts) with 10 (5+5) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.

  • Accessory only - connectors to be purchased separately.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    2.00mm/4.00mm (0.079"/0.157")

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    Front Panel Mount or Board Mount

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    10

  • Housing Material:

    Aluminium Alloy

  • Packaging Style:

    Bulk/Loose

  • Height of Connector above PCB:

    8.00mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Front Panel Mount or Board Mount

  • Weight:

    1.184g

  • Dimensions:

    21.70 x 8.00 x 7.70

  • Operating Temperature:

    -55°C to +125°C

Downloads

    Environmental Compliance

  • M80-9061002

  • Material Composition for M80-906 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-906.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Training Module - Overview of the Datamate Metal Backshells range

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Product Training Module - Panel Mount with Datamate

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Test Reports

  • Test Report HT079 - Datamate Backshells and Shielded Cables Attenuation Testing
