M80-9060802

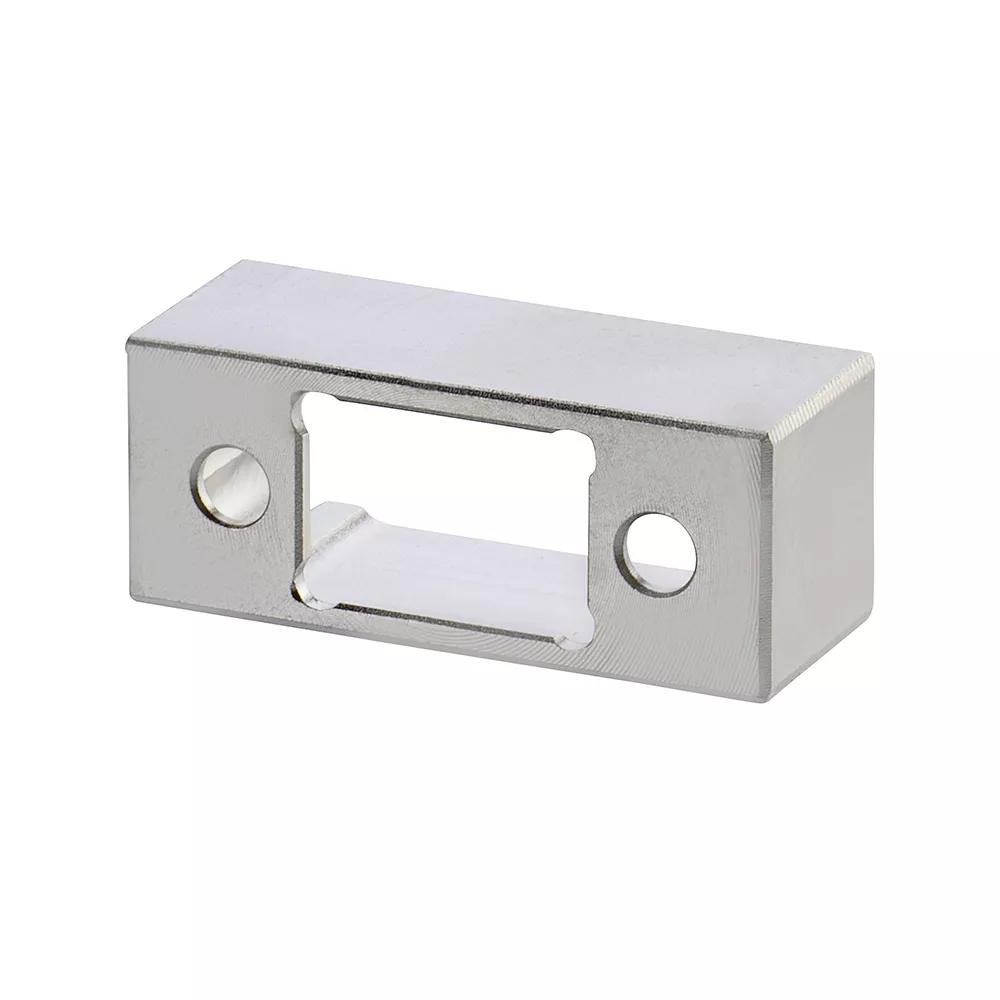

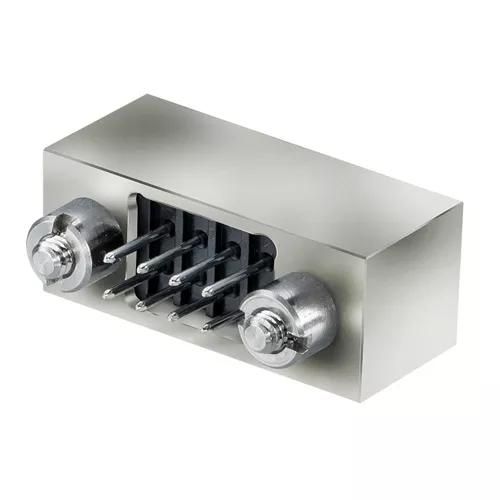

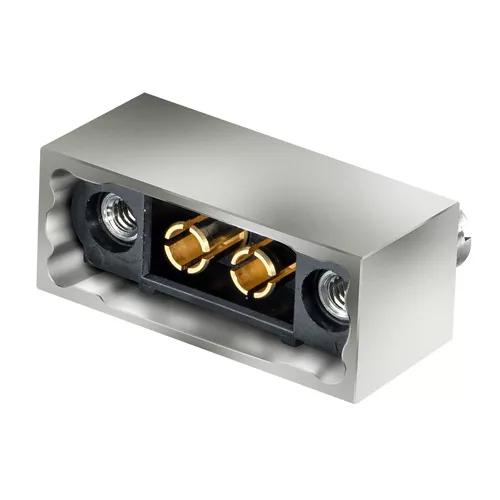

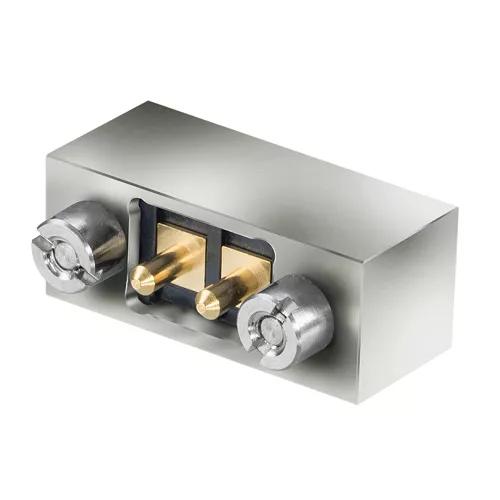

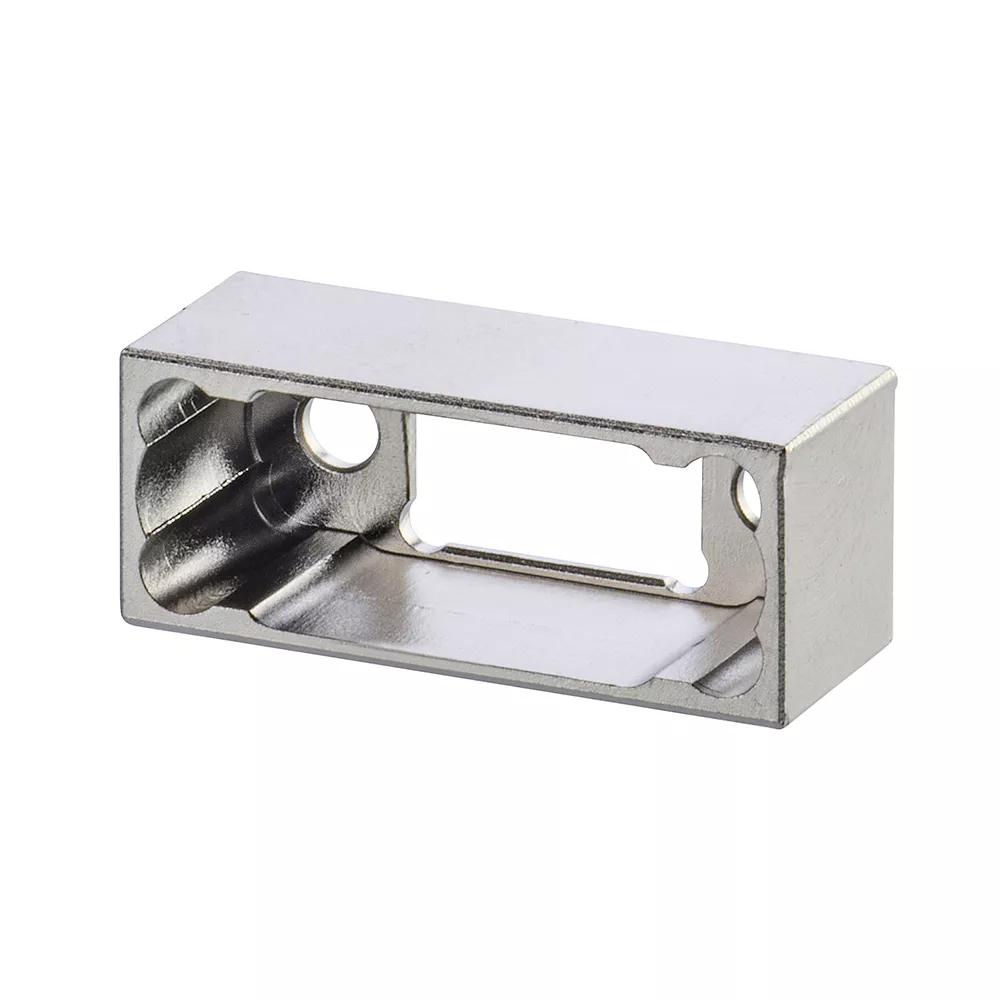

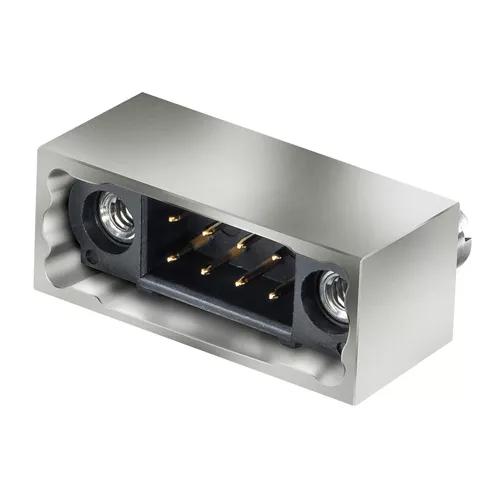

4+4 Pos. Male Metal Backshell for J-Tek or Mix-Tek

2.00mm Pitch High-Reliability Connector - Datamate

  • Aluminium alloy Metal Backshell with nickel plating, for panel mount (cable and PCB connectors).
  • Suitable for J-Tek (all signal contacts) with 8 (4+4) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
  • Accessory kit only – connectors to be purchased separately.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Accessory

Connector Orientation:

Straight

Connection Type:

Panel Mount

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

8

Materials

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.112g

Overall Dimensions (L x W x D) in mm:

19.70 x 8.00 x 7.70

Height of Connector above PCB:

8.00mm

Availability

235 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 50
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 32

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 153

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.
