M80-9053602
18+18 Pos. Male Horizontal Metal Backshell for J-Tek or Mix-Tek, Panel Mount
2.00mm Pitch High-Reliability Connector - Datamate
Made to order
3 similiar products View products
Samacsys account required
No login is required
Product Description

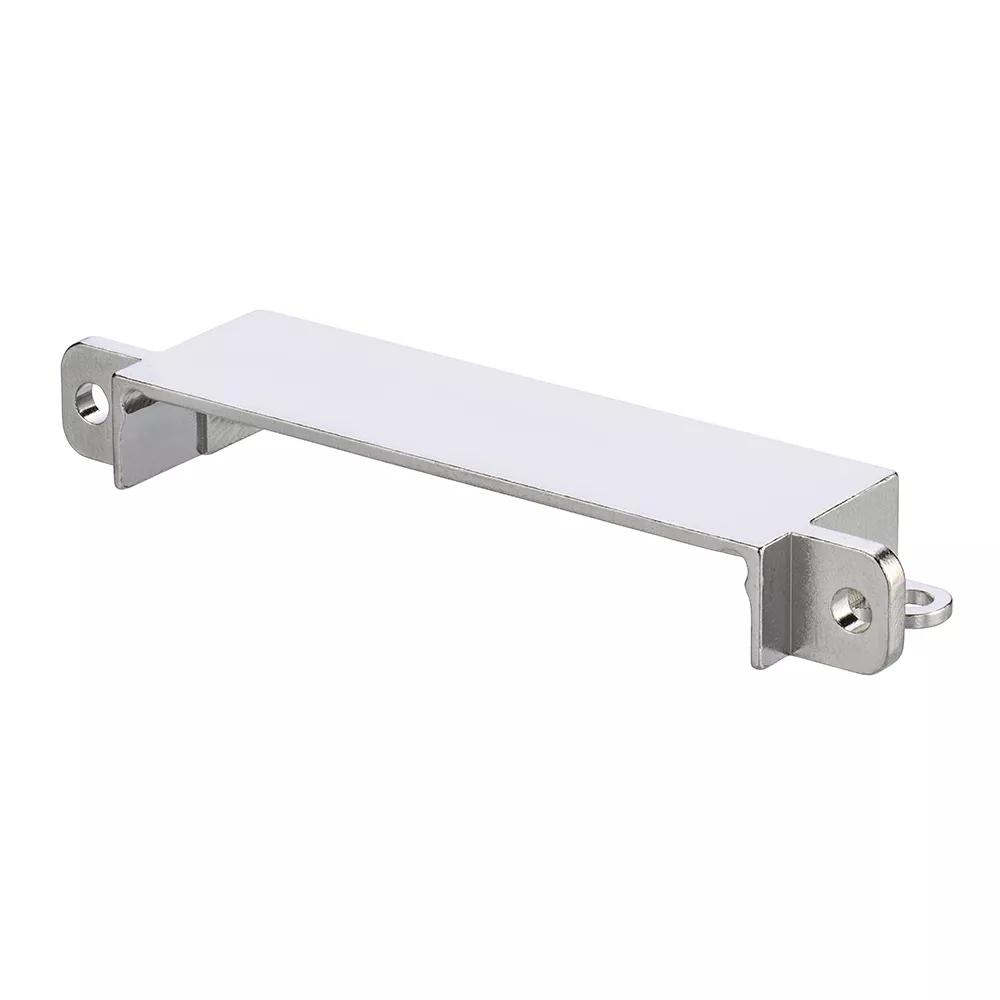

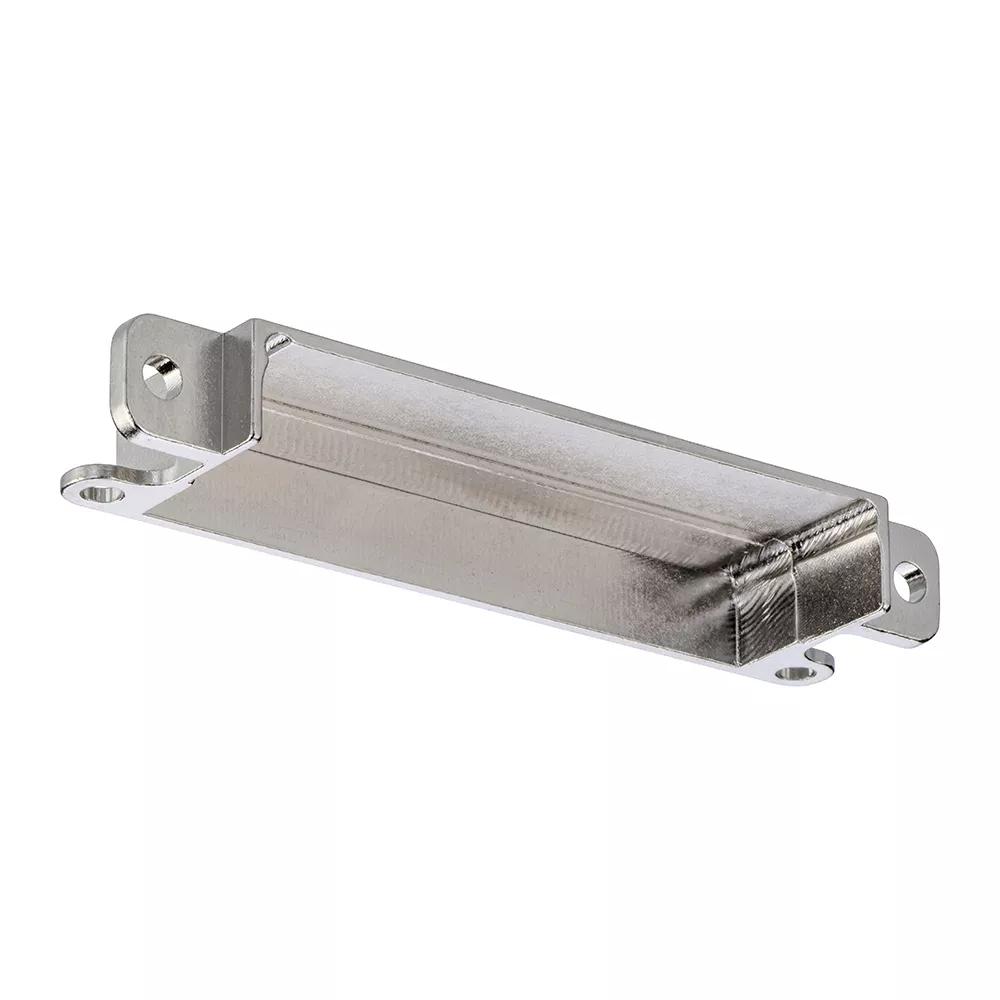

- Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors and rear panel mounting – Throughboard or Surface Mount. Accessory only – connectors to be purchased separately.

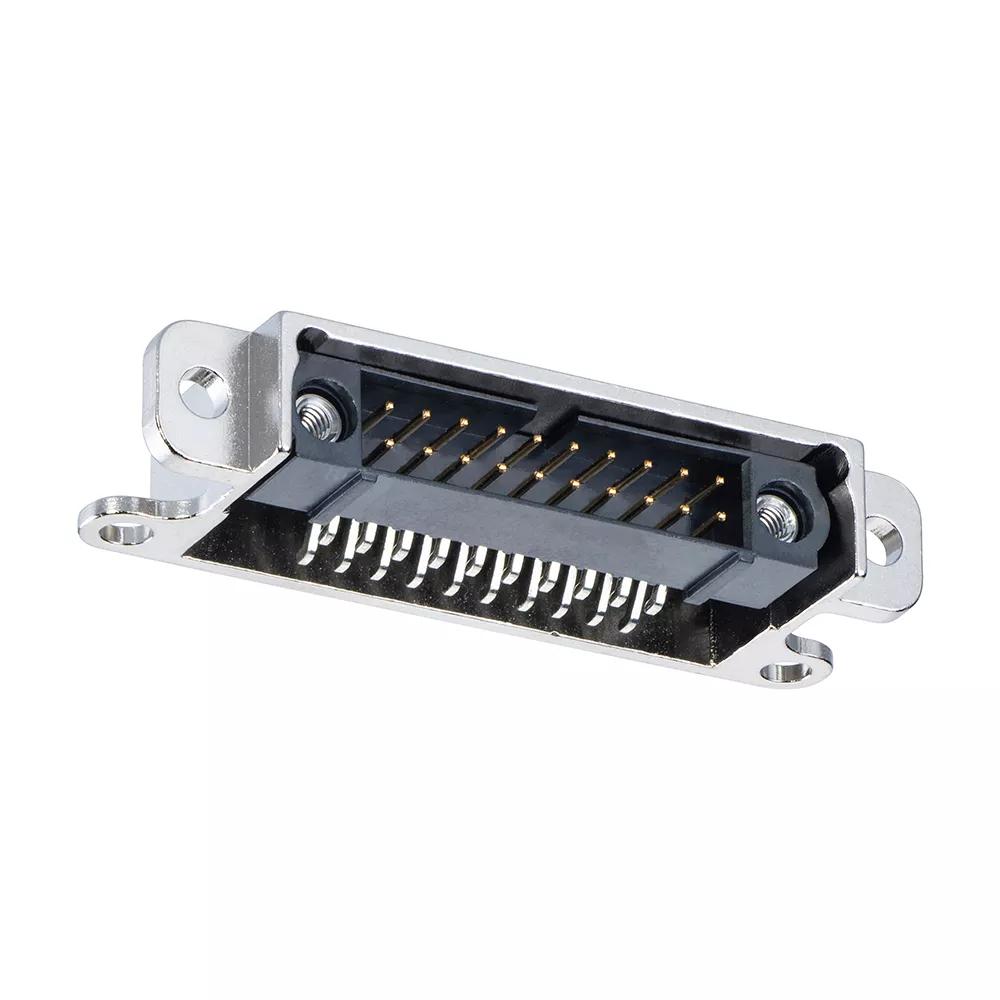

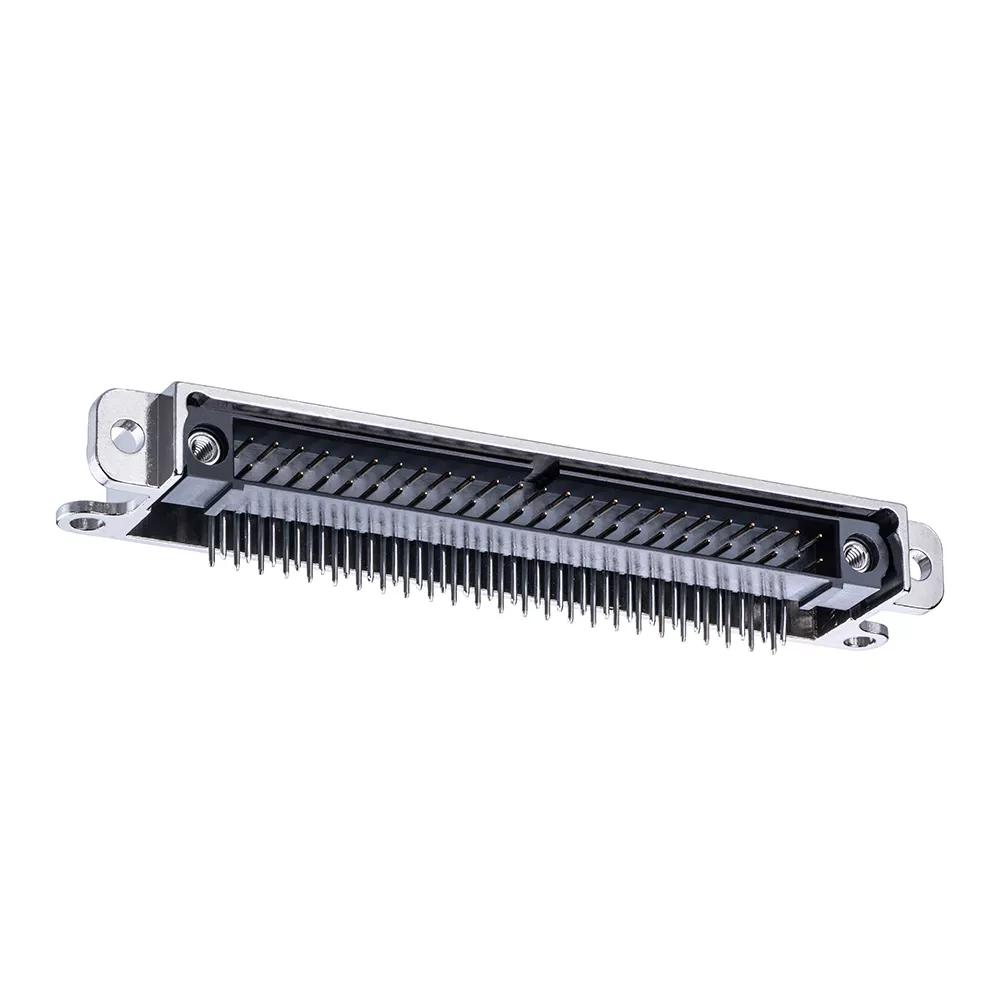

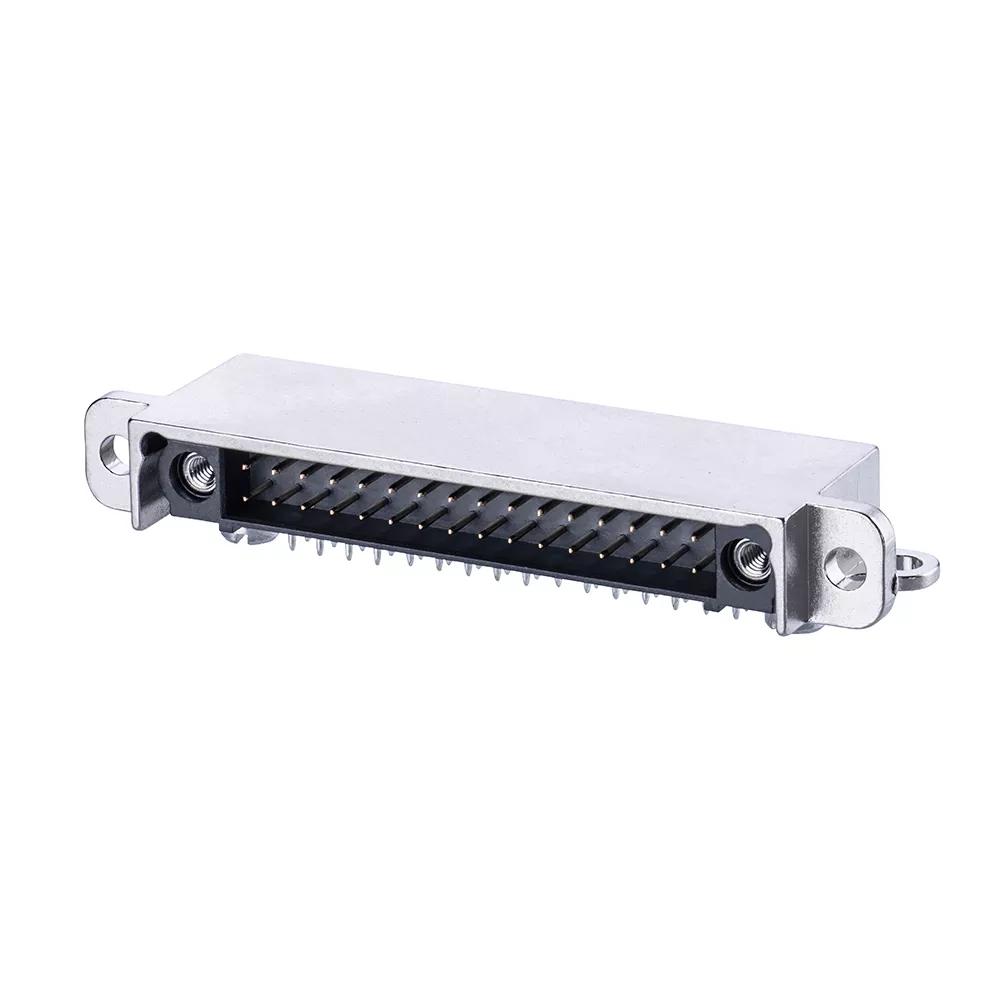

- Suitable for J-Tek (all signal contacts) with 36 (18+18) contacts, or equivalent sized Mix-Tek connectors. Connectors can be fitted with internal or board-mounting fixings..

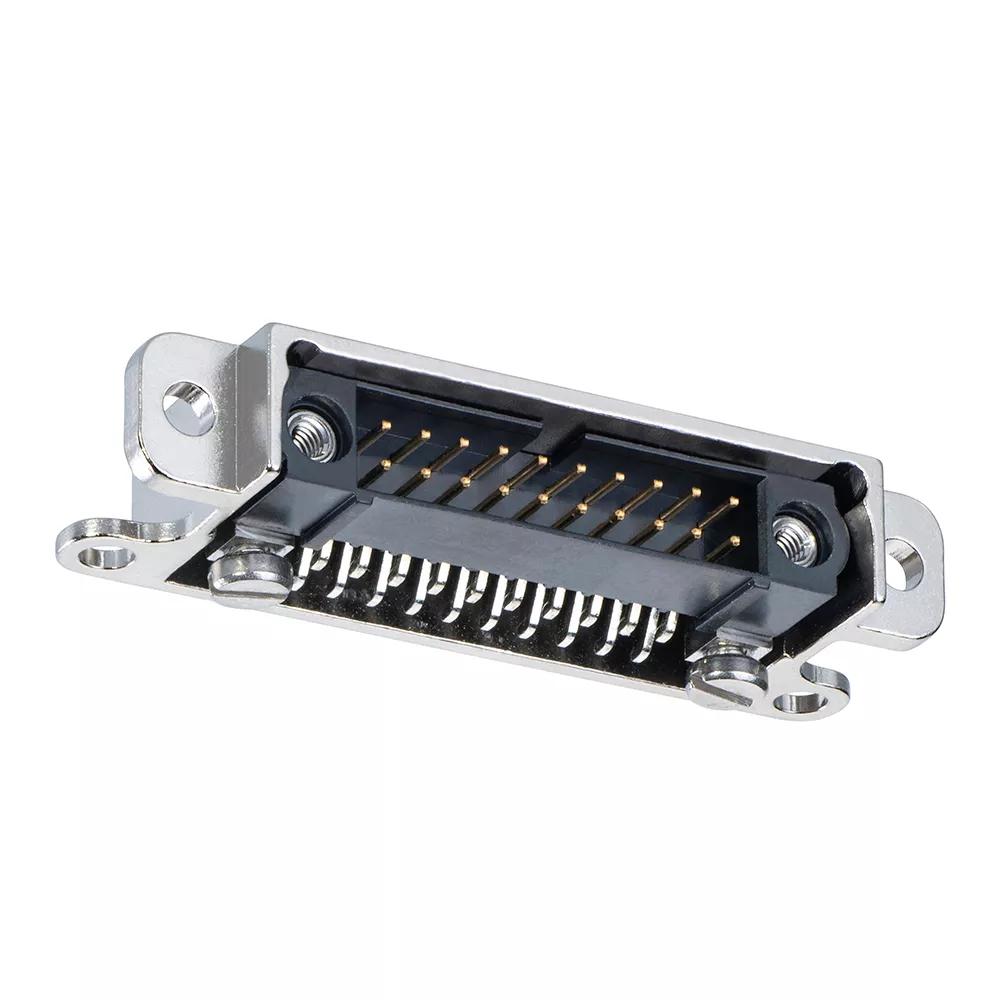

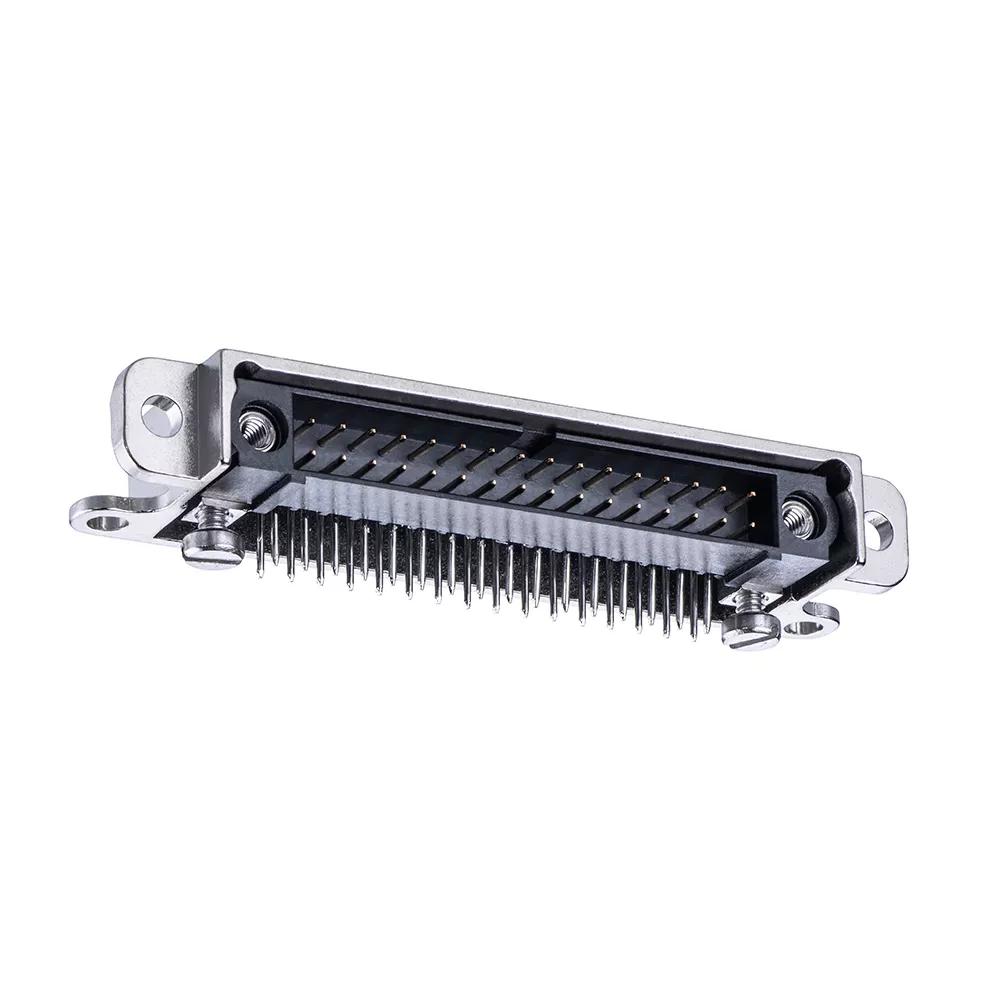

- Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B, combined with hex nut M80-2430000B or slotted nut M80-2130000B for mounting to PCBs up to 2mm thickness and mounting to panels up to 1.4mm thick.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Connector Orientation:
Horizontal
Connection Type:
Board Mount and Rear Panel Mount
Operating Temperature:
-55°C to +125°C
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
36
Materials
Housing Material:
Aluminium Alloy
Housing Colour:
Nickel
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
3.874g
Overall Dimensions (L x W x D) in mm:
60.80 x 14.00 x 7.40
Height of Connector above PCB:
7.40mm
