M80-9052402

M80-9052402

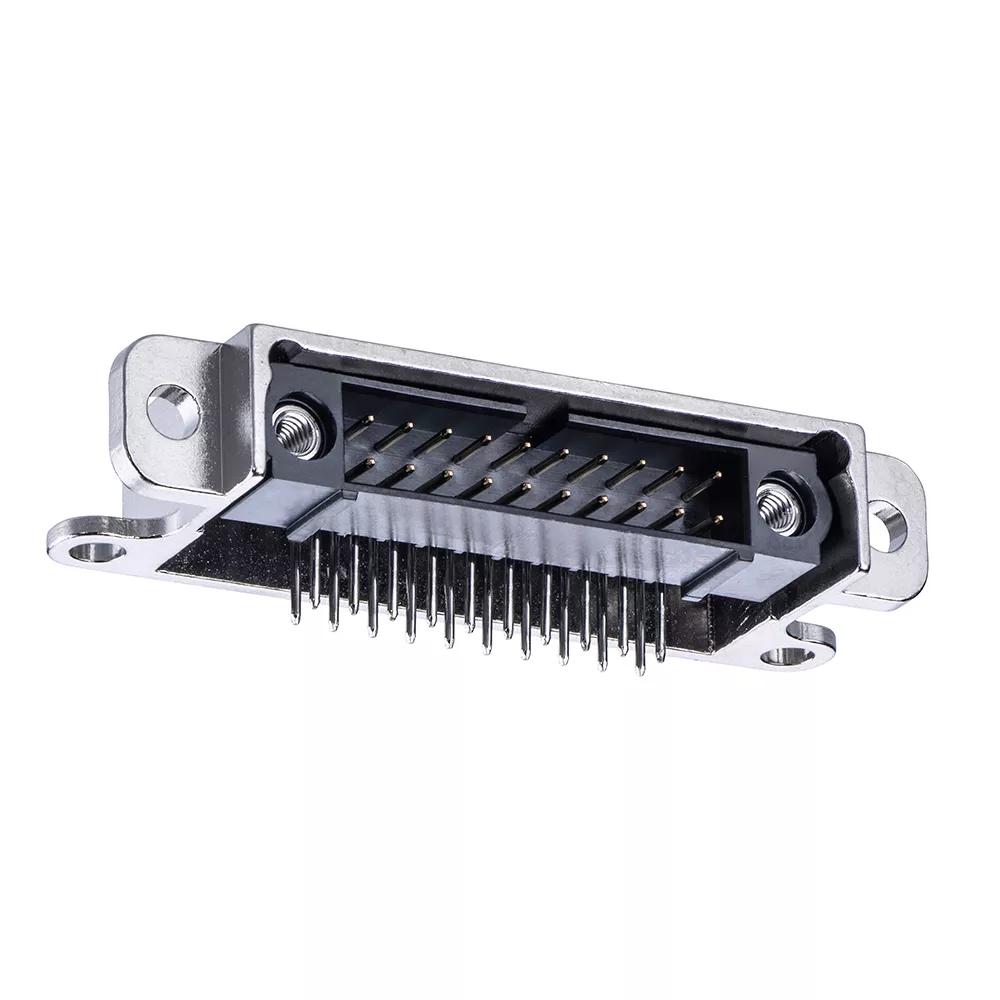

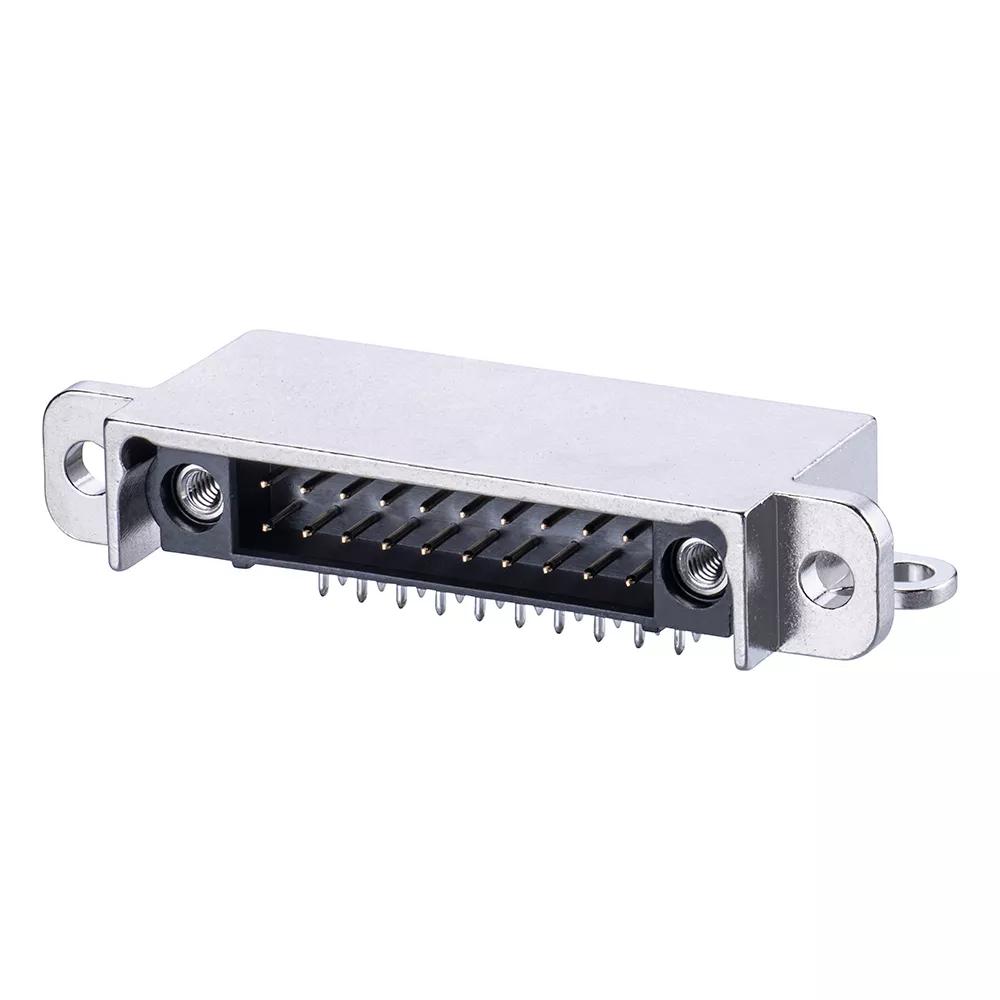

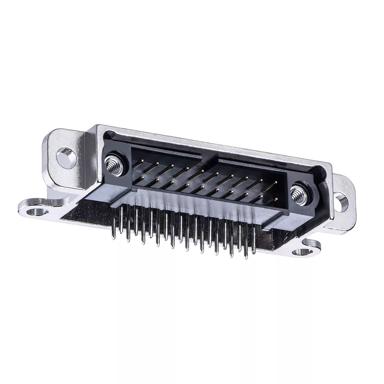

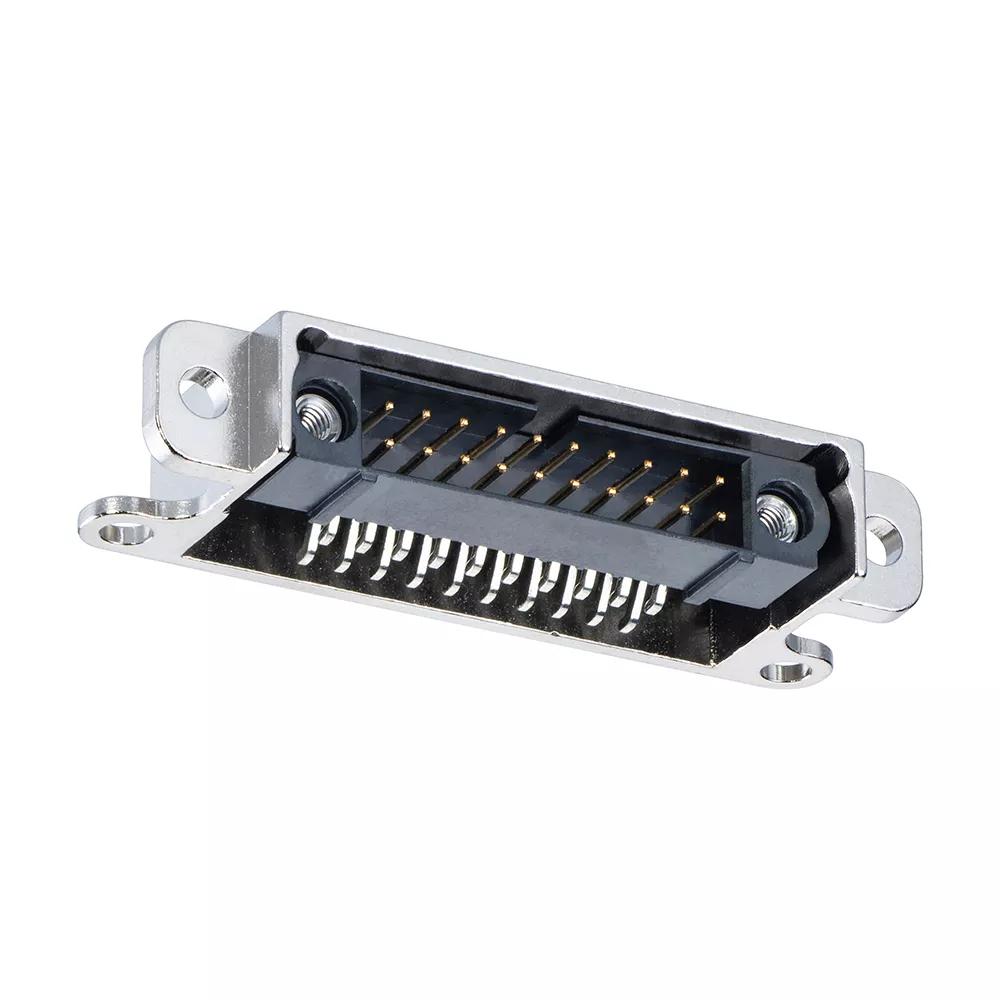

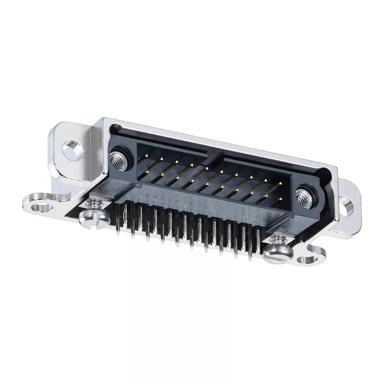

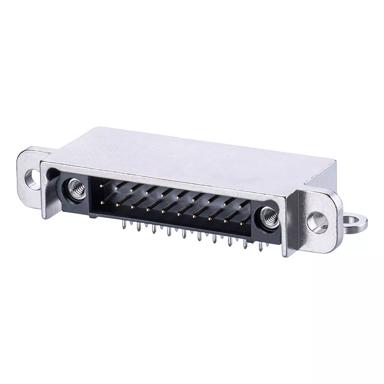

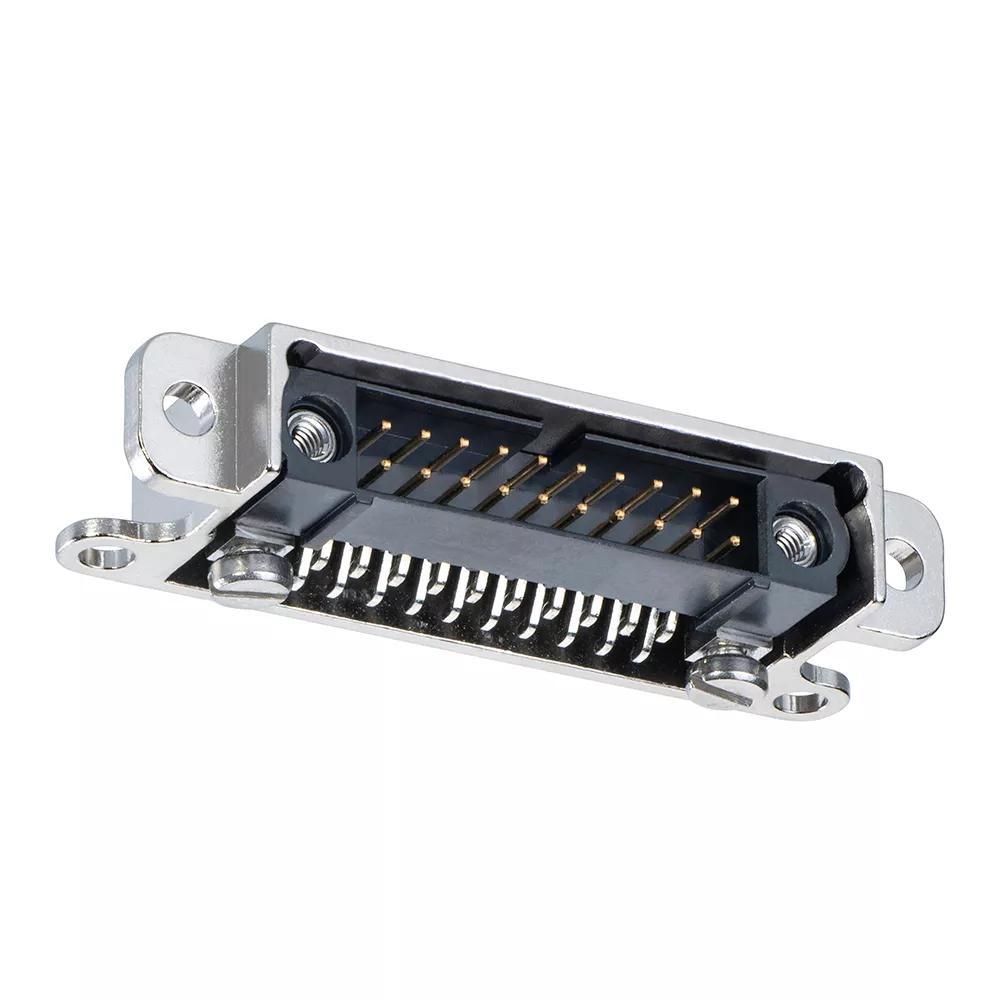

Datamate Metal Backshell for J-Tek or Mix-Tek connectors; male backshell for horizontal PCB connectors (throughboard and SMT) with rear panel mount, suitable for 24 (12+12) signal contacts or equivalent

HRi
HRi
HRi
HRi
HRi
HRi
HRi

Traceparts account required

M80-9052402

Datamate Metal Backshell for J-Tek or Mix-Tek connectors; male backshell for horizontal PCB connectors (throughboard and SMT) with rear panel mount, suitable for 24 (12+12) signal contacts or equivalent


2.00mm Pitch High-Reliability Connector - Datamate

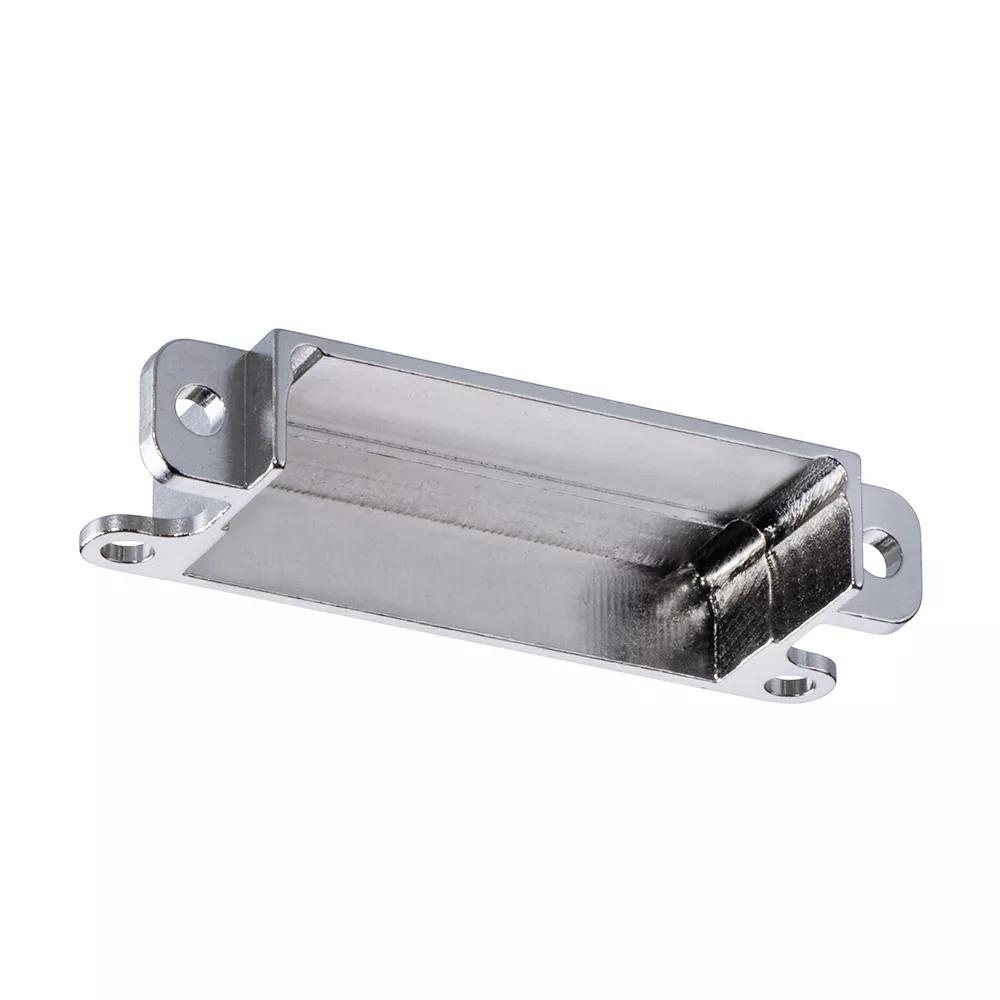

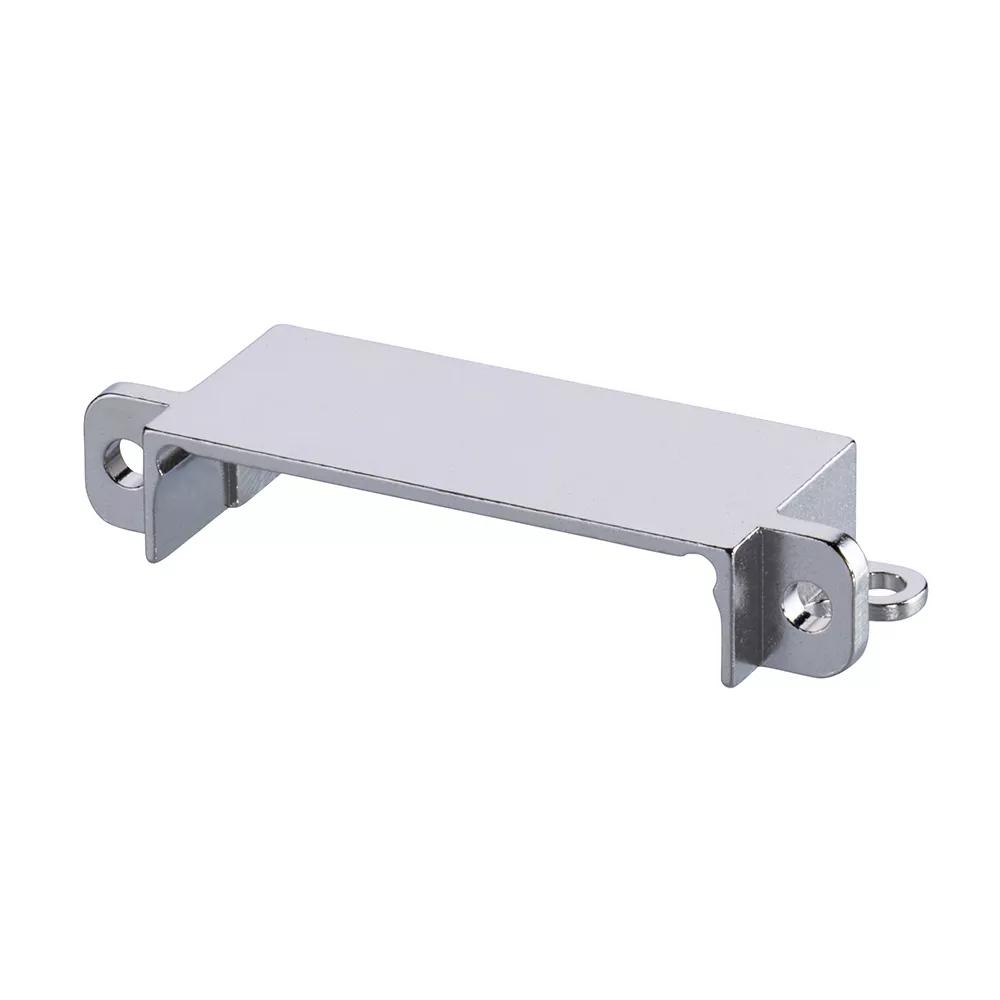

  • Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors and rear panel mounting - Throughboard or Surface Mount. Accessory only - connectors to be purchased separately.

  • Suitable for J-Tek (all signal contacts) with 24 (12+12) contacts, or equivalent sized Mix-Tek connectors. Connectors can be fitted with internal or board-mounting fixings..

  • Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B, combined with hex nut M80-2430000B or slotted nut M80-2130000B for mounting to PCBs up to 2mm thickness and mounting to panels up to 1.4mm thick.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Test Reports

Product Information

Technical Details

Specifications

  • Contact Pitch:

    2.00mm/4.00mm (0.079"/0.157")

  • Connector Orientation:

    Horizontal

  • PCB Mounting:

    Board Mount and Rear Panel Mount

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    24

  • Housing Material:

    Aluminium Alloy

  • Packaging Style:

    Bulk/Loose

  • Height of Connector above PCB:

    7.40mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Board Mount and Rear Panel Mount

  • Weight:

    3.089g

  • Dimensions:

    48.80 x 14.00 x 7.40

  • Operating Temperature:

    -55°C to +125°C

  • Country of Origin:

    GB

  • Cuttable:

    No

  • Housing Colour:

    Nickel

Downloads

    Environmental Compliance

  • RoHS - M80-9052402

  • Material_composition_for_M80-905.pdf

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-905.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Test Reports

  • Test Report HT079 - Datamate Backshells and Shielded Cables Attenuation Testing

  • Product Information

  • Product Training Module - Overview of the Datamate Metal Backshells range

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Product Datasheet - Datamate range: signal connectors (HRi)
