M80-9051802

9+9 Pos. Male Horizontal Metal Backshell for J-Tek or Mix-Tek, Panel Mount

2.00mm Pitch High-Reliability Connector - Datamate

Order Sample

Add to Favorites

In stock Check availability

3 similar products View products

Traceparts account required

Product Description

Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors and rear panel mounting – Throughboard or Surface Mount. Accessory only – connectors to be purchased separately.
Suitable for J-Tek (all signal contacts) with 18 (9+9) contacts, or equivalent sized Mix-Tek connectors. Connectors can be fitted with internal or board-mounting fixings..

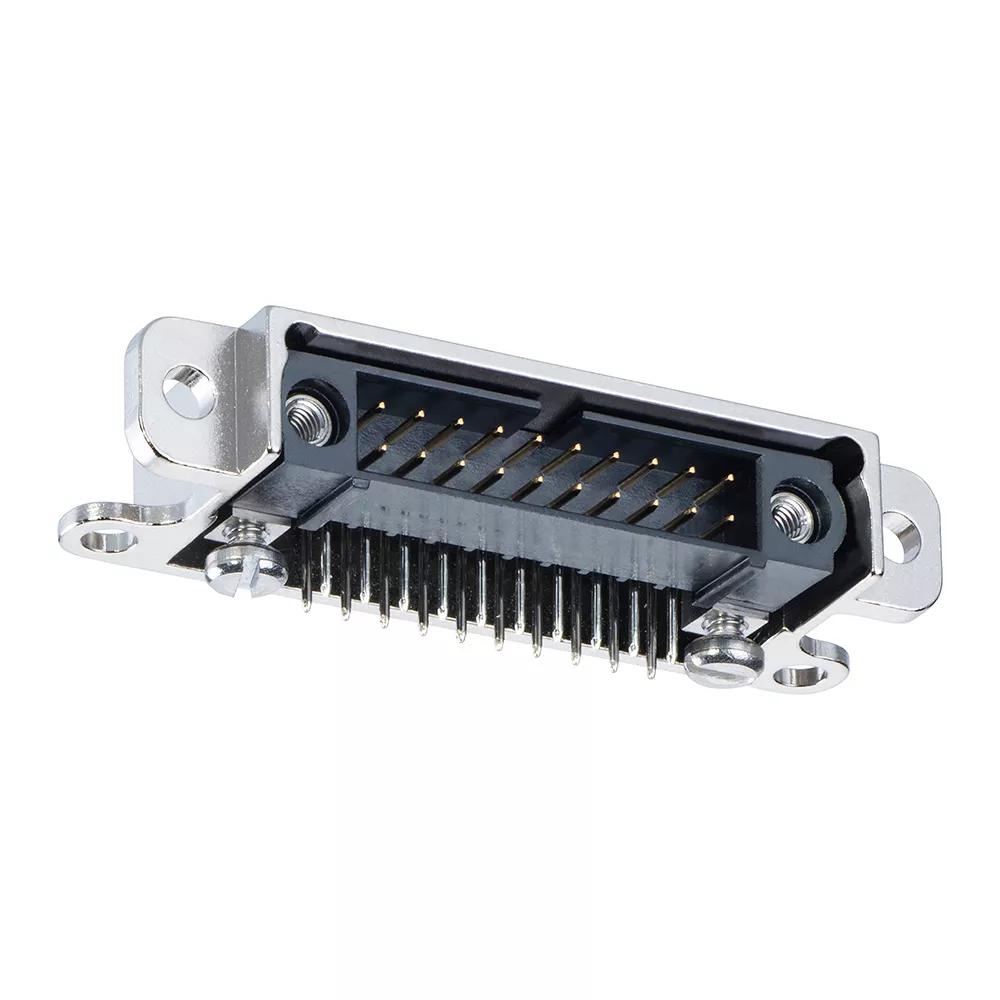

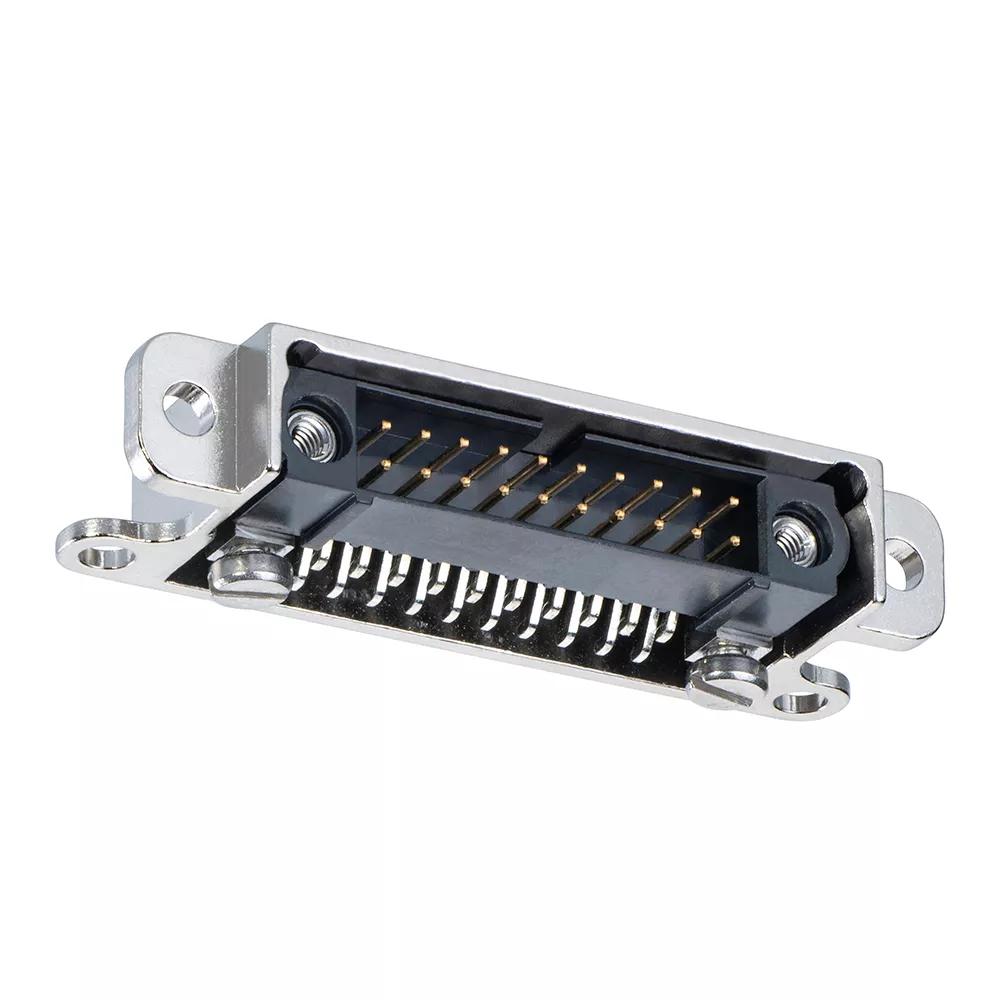

Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B, combined with hex nut M80-2430000B or slotted nut M80-2130000B for mounting to PCBs up to 2mm thickness and mounting to panels up to 1.4mm thick.

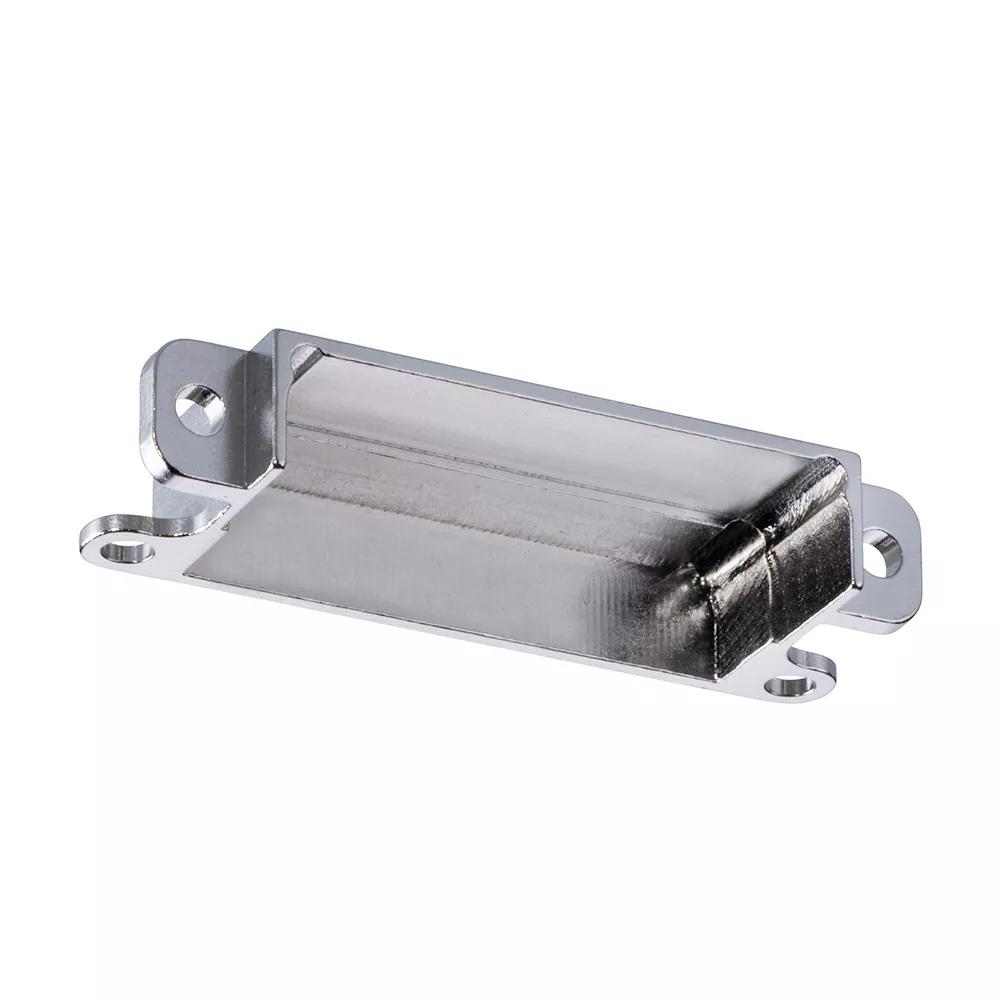

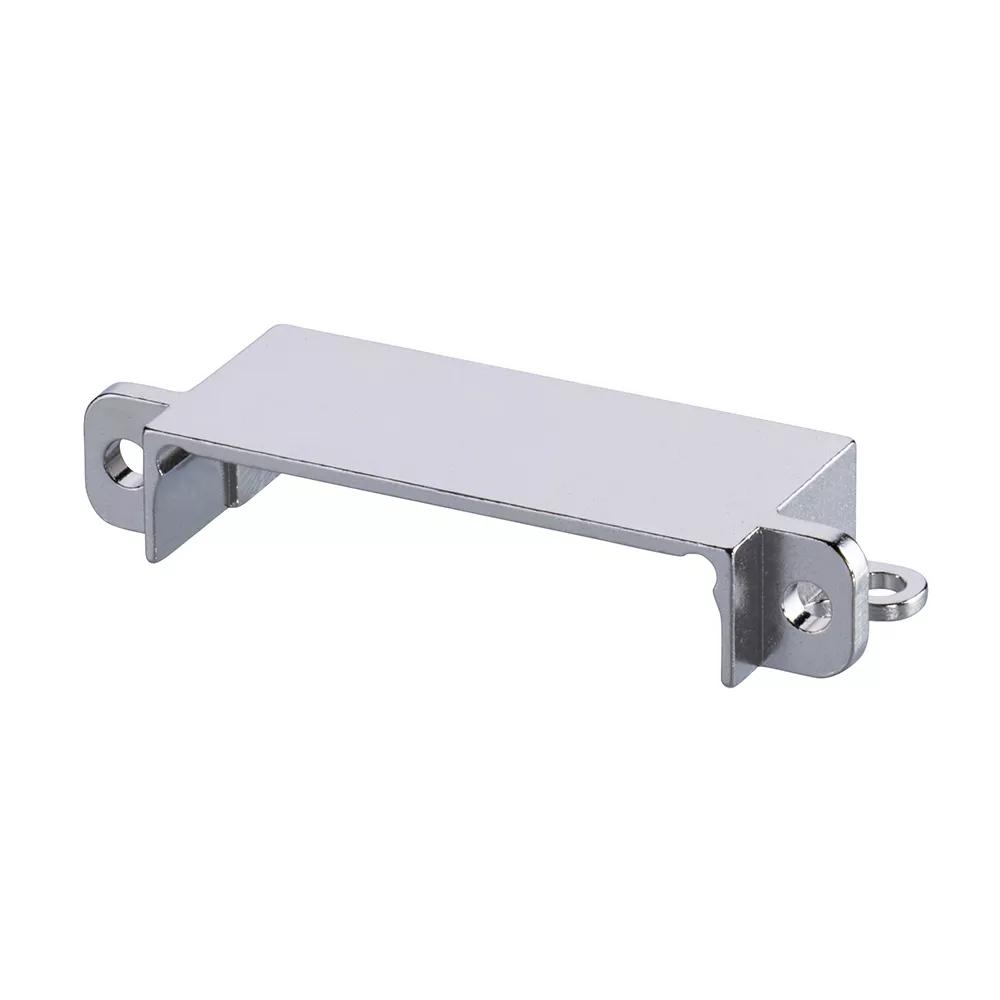

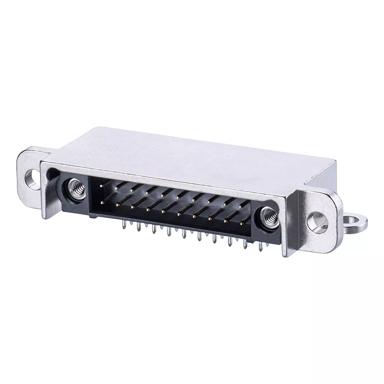

M80-9051802 - 9+9 Pos. Male Horizontal Metal Backshell for J-Tek or Mix-Tek, Panel Mount

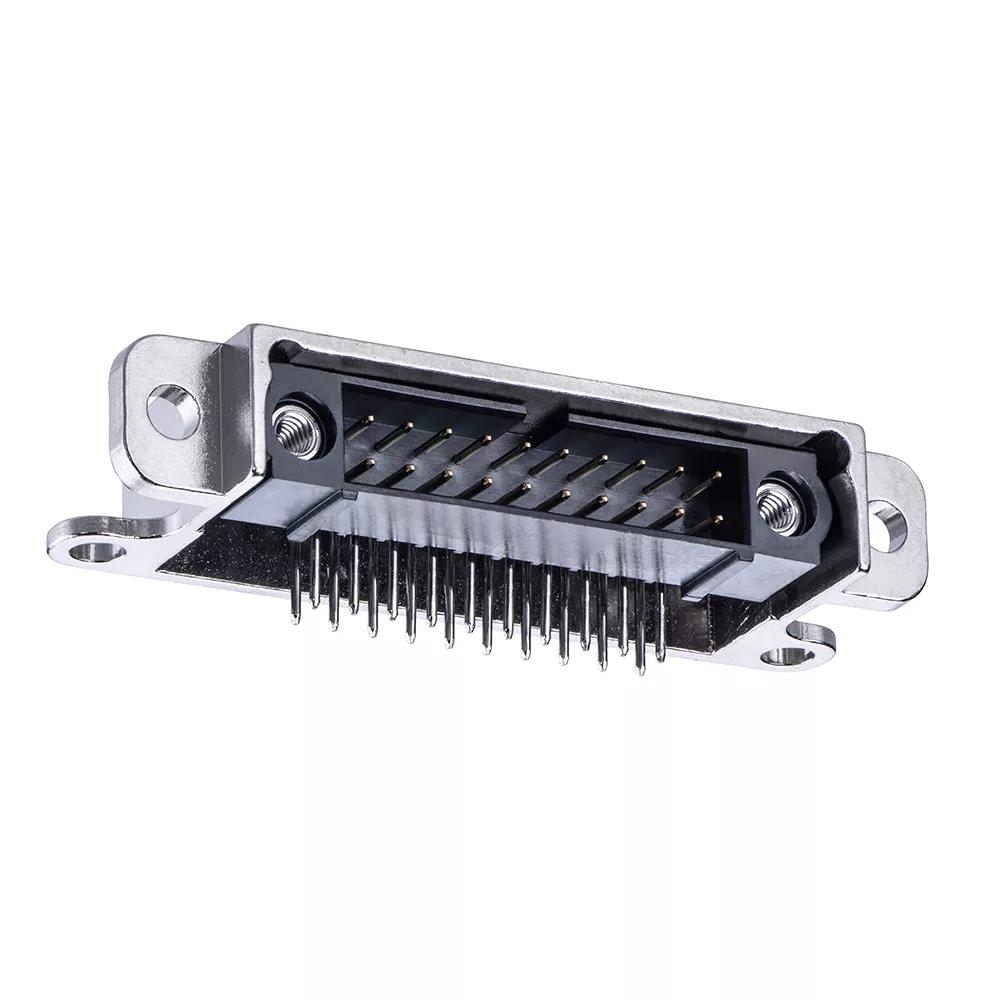

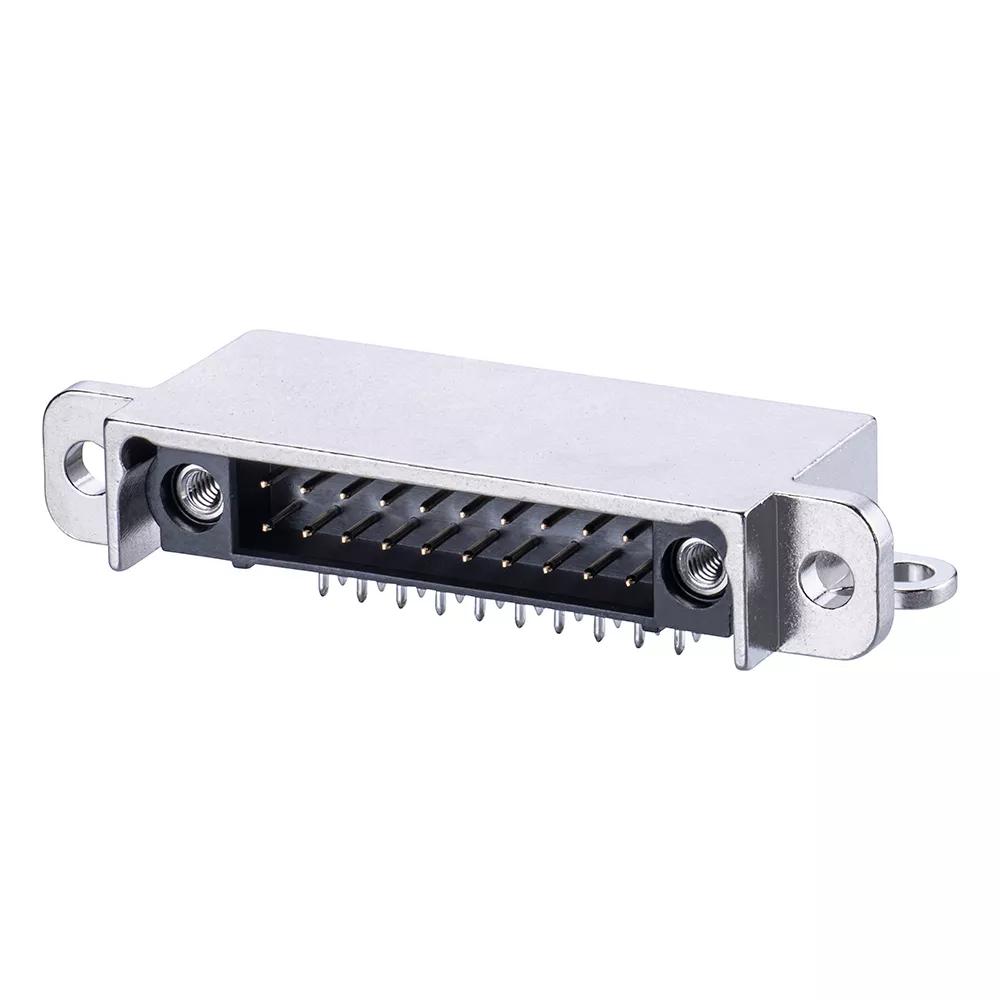

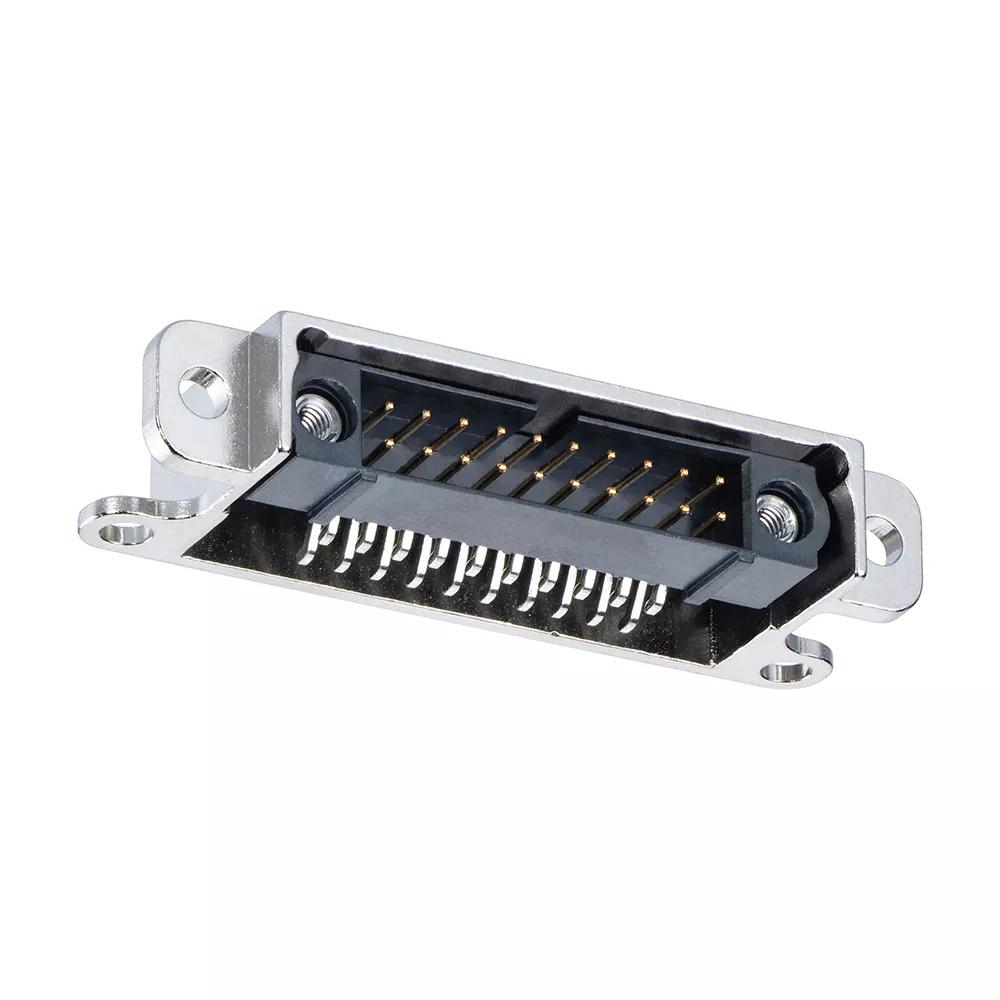

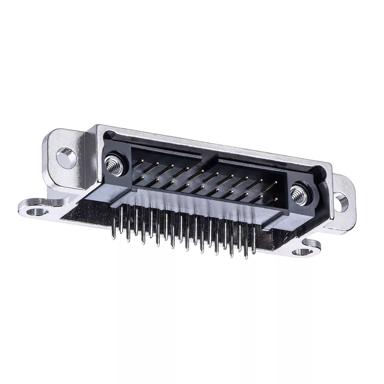

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Connector Orientation:

Horizontal

Connection Type:

Board Mount and Rear Panel Mount

Operating Temperature:

-55°C to +125°C

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Individual Part Weight:

2.697g

Overall Dimensions (L x W x D) in mm:

42.80 x 14.00 x 7.40

Height of Connector above PCB:

7.40mm
