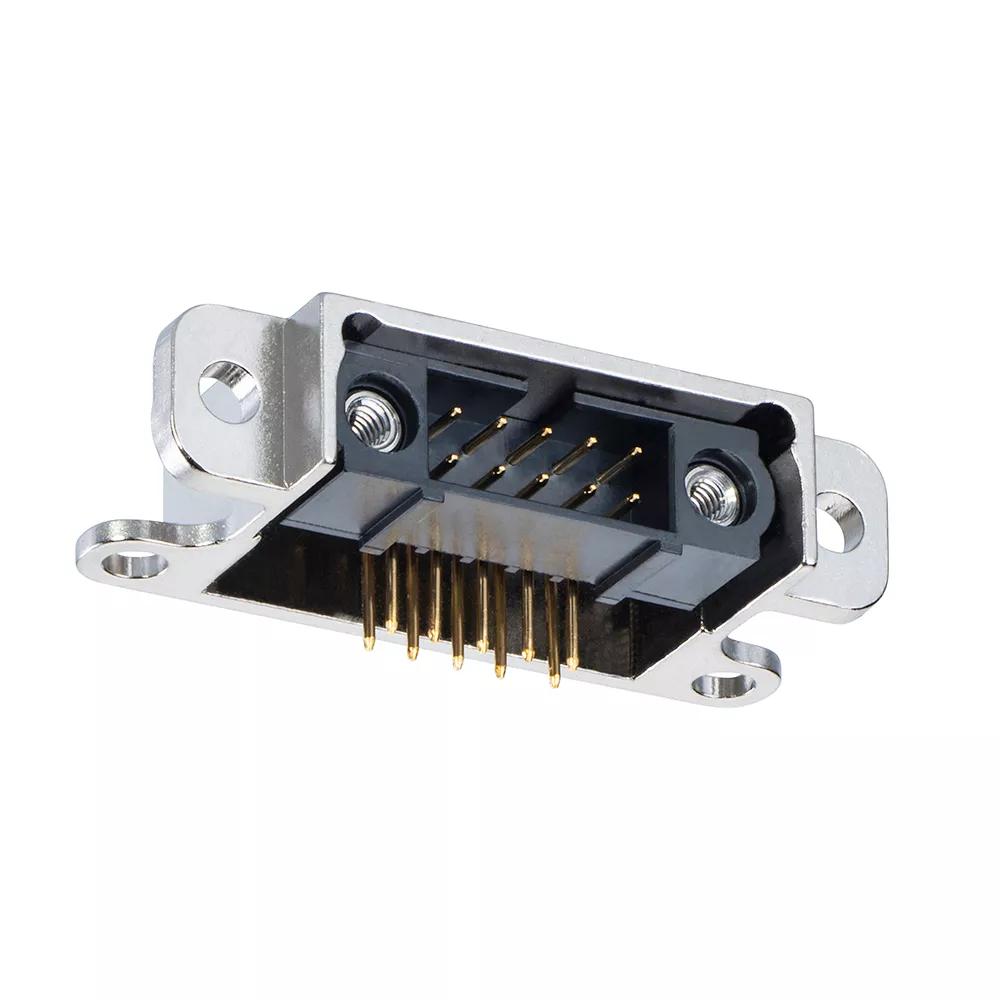

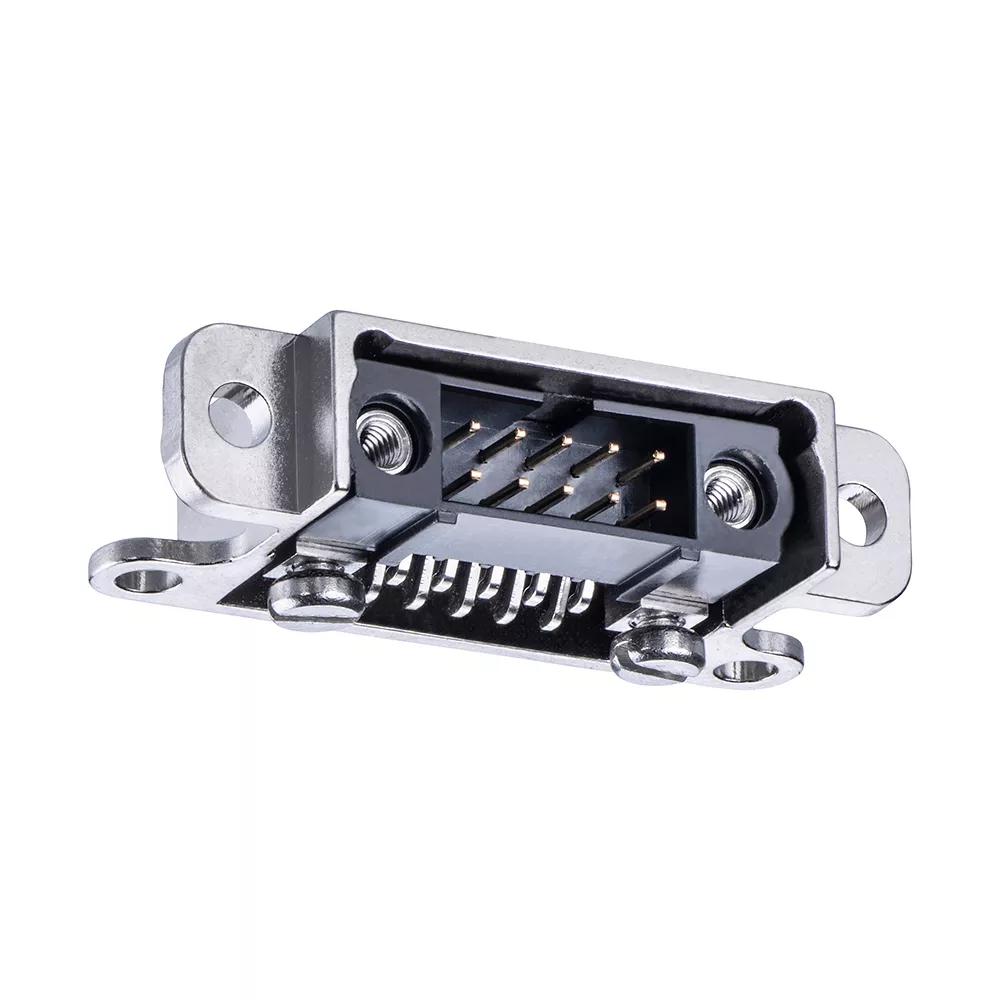

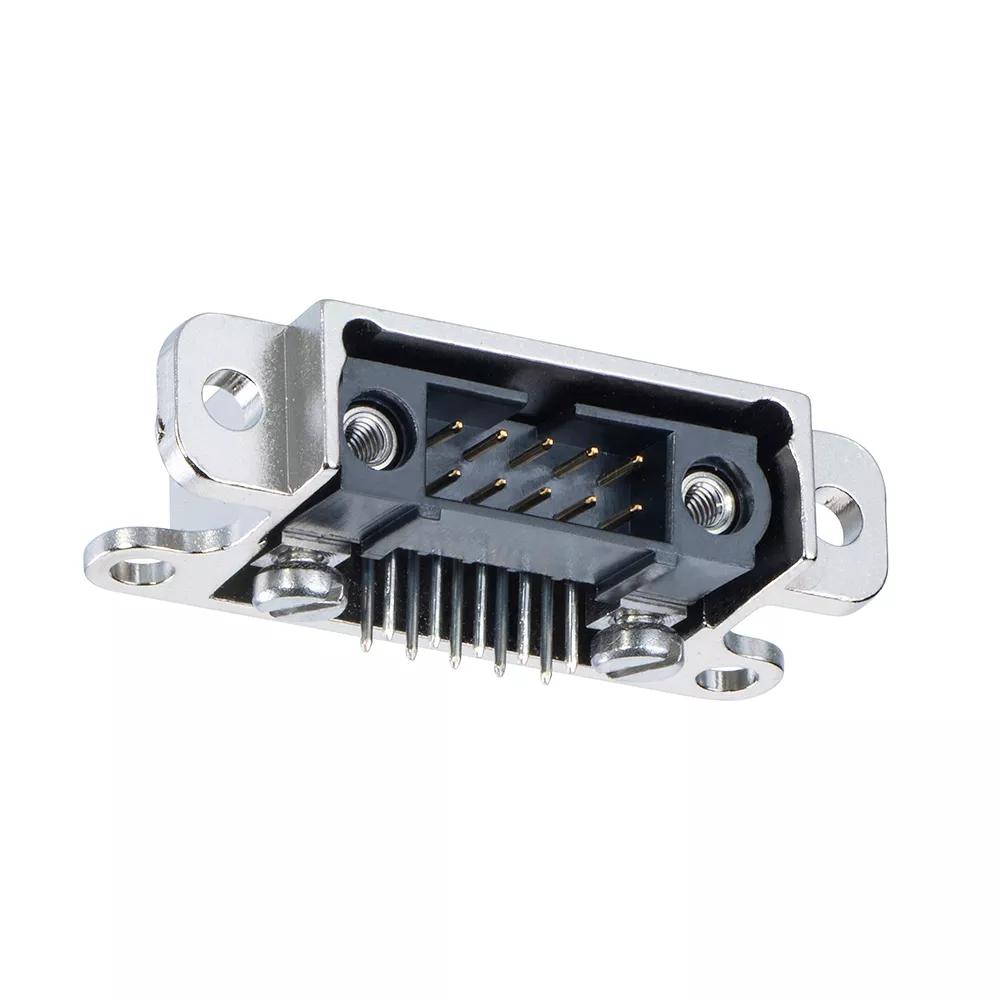

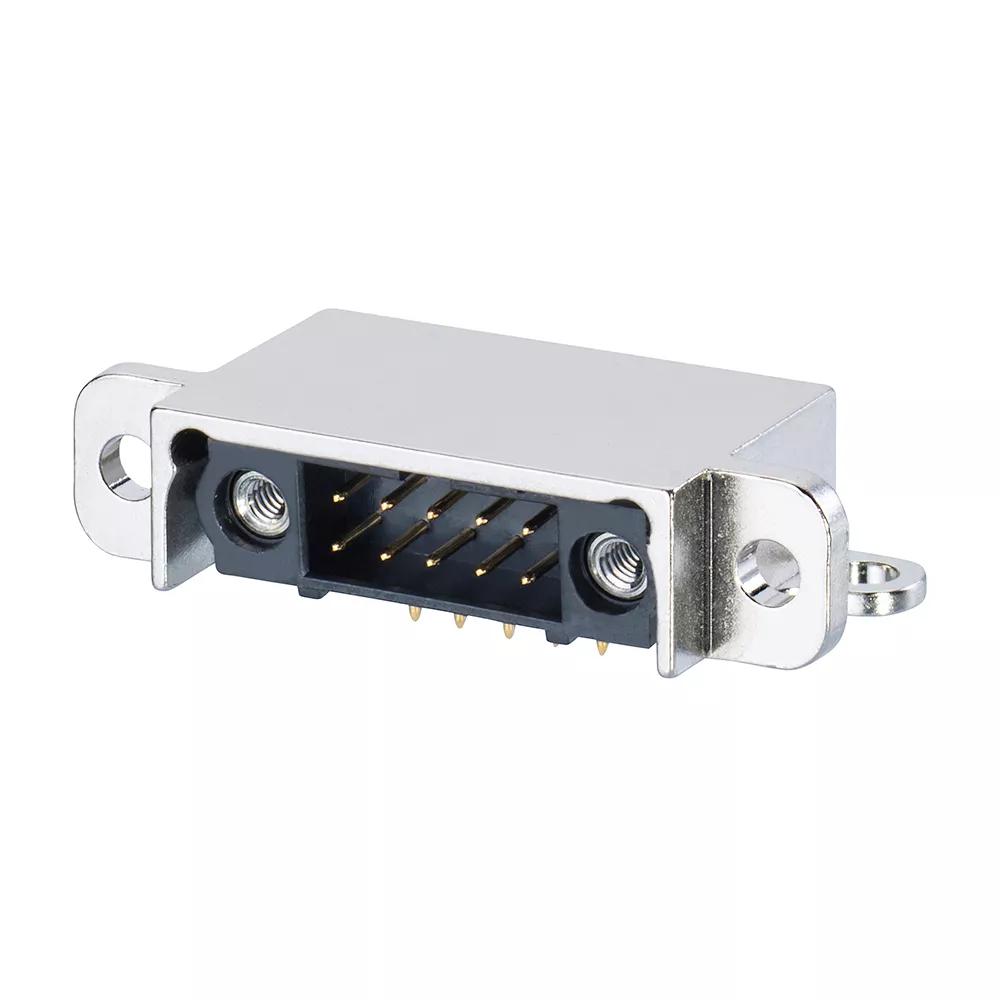

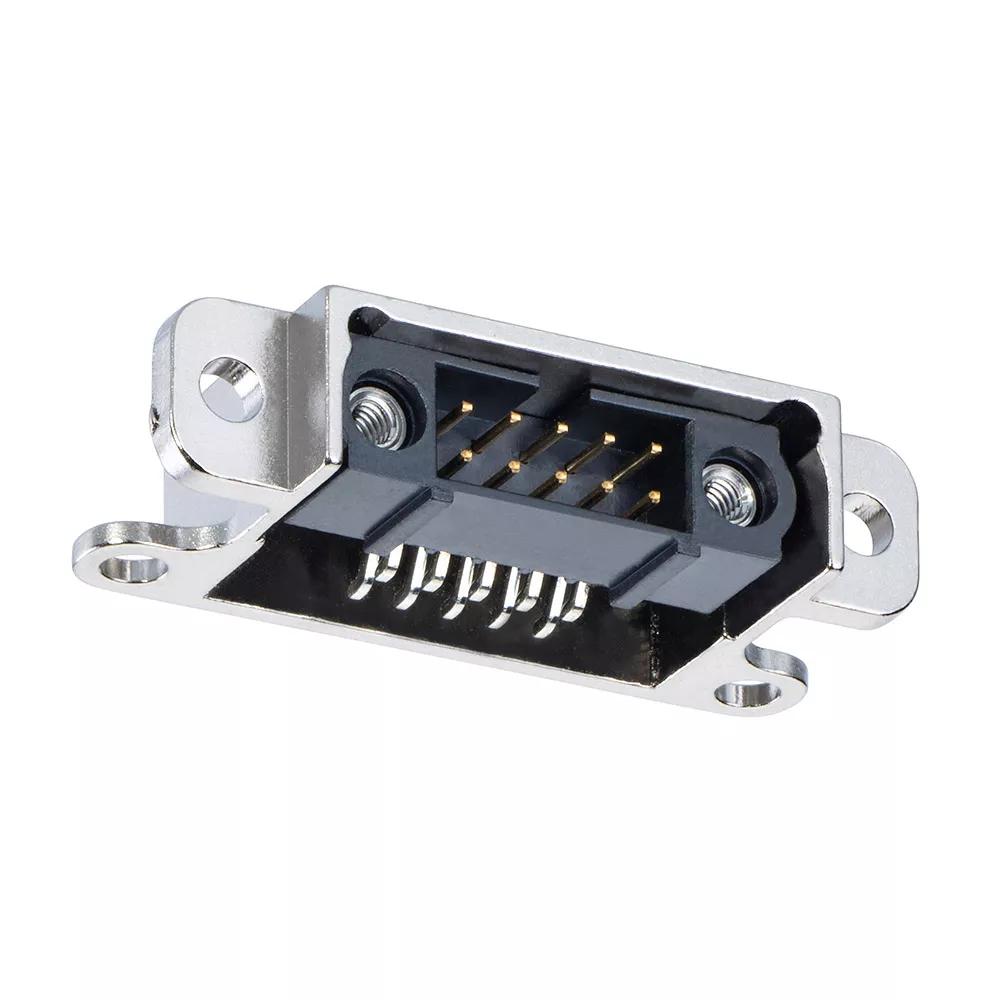

Image may be representative. Refer to the product title for more information.

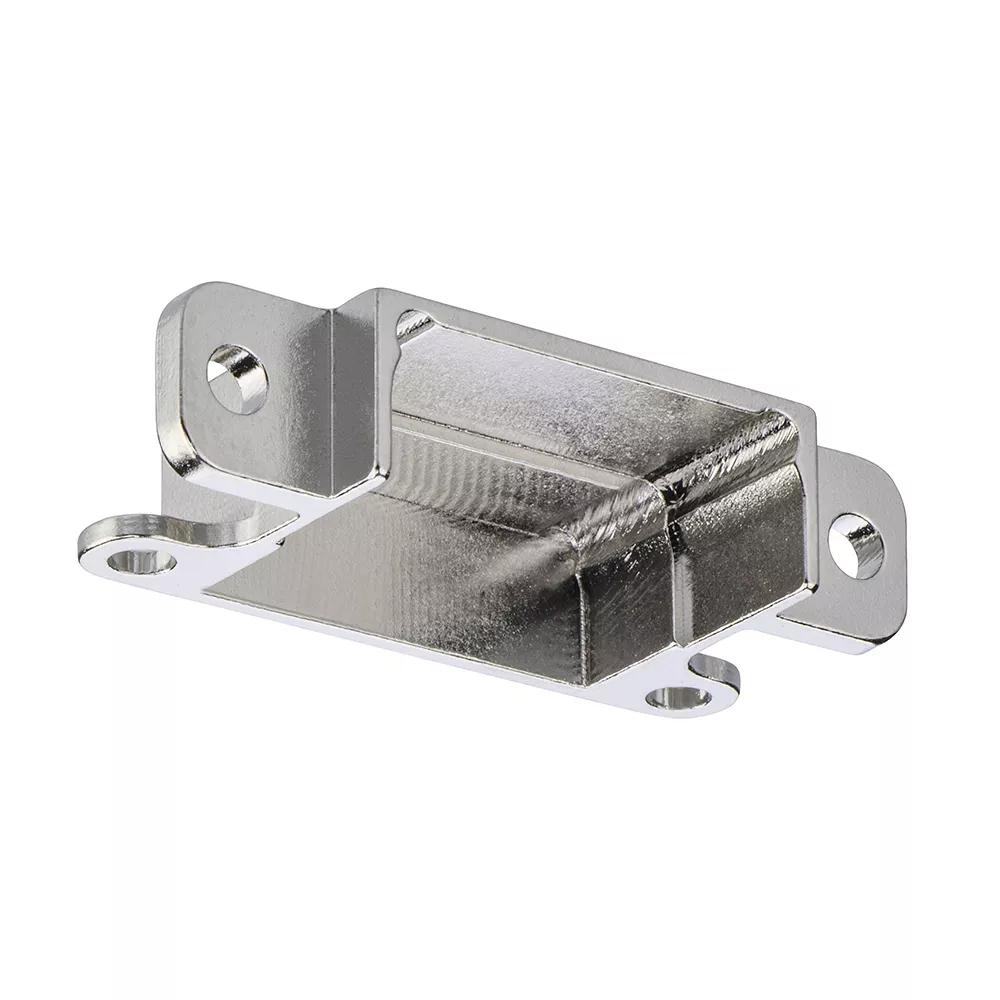

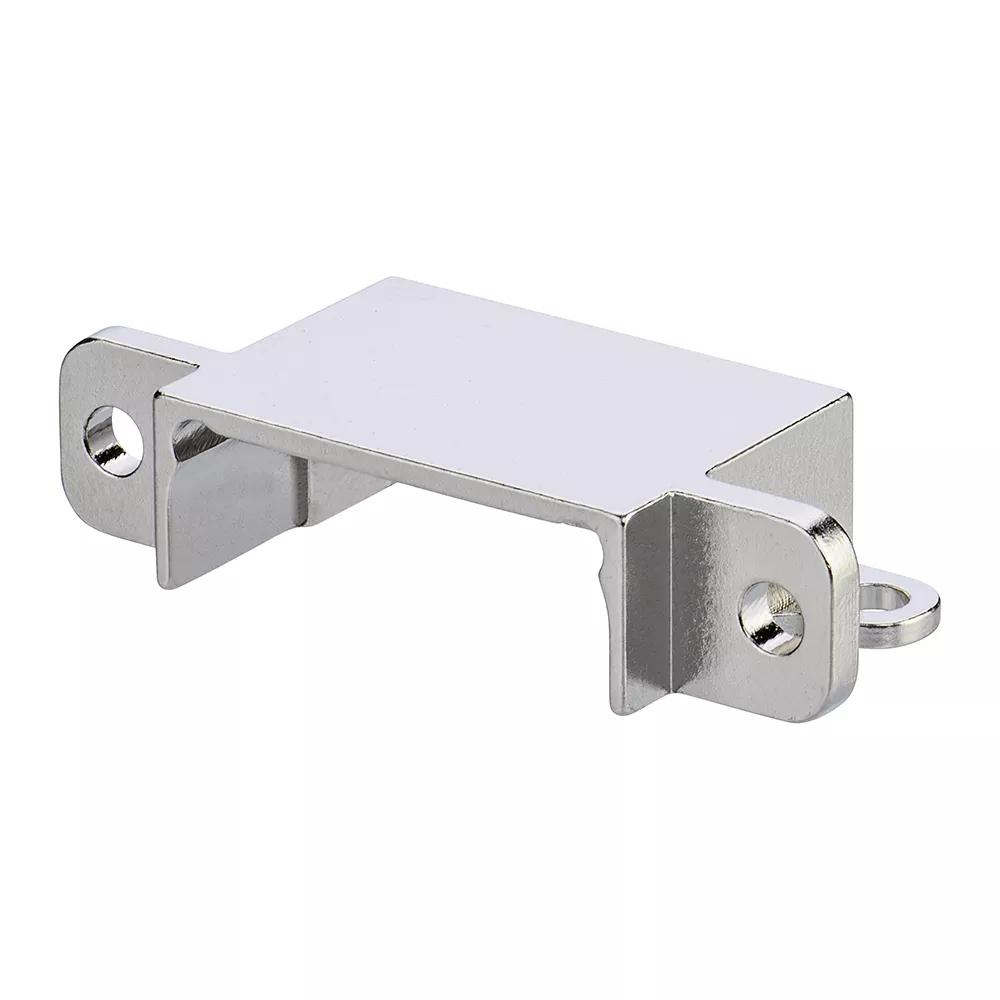

Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors and rear panel mounting - Throughboard or Surface Mount. Accessory only - connectors to be purchased separately.
Suitable for J-Tek (all signal contacts) with 8 (4+4) contacts, or equivalent sized Mix-Tek connectors. Connectors can be fitted with internal or board-mounting fixings..
Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B, combined with hex nut M80-2430000B or slotted nut M80-2130000B for mounting to PCBs up to 2mm thickness and mounting to panels up to 1.4mm thick.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Compatible with Board Mount/Rear Panel Mount
Number of Rows
2
Connector Orientation
Horizontal
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
8
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable
No
Materials
Housing Material
Aluminium Alloy
Packaging Style
Bulk/Loose
Housing Colour
Nickel
Dimensions
Contact Pitch
2.00mm/4.00mm (0.079"/0.157")
Weight
2.043g
Dimensions
32.80 x 14.00 x 7.40
Height of Connector above PCB
7.40mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-905.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Product Information
Product Training Module - Overview of the Datamate Metal Backshells range
Product Datasheet - Datamate range: signal connectors (HRi)
Product Datasheet - Datamate Mix-Tek range (HRi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material_composition_for_M80-905.pdf
RoHS Declaration - M80-9050802
