M80-9042202
11+11 Pos. Male Horizontal Metal Backshell for J-Tek or Mix-Tek
2.00mm Pitch High-Reliability Connector - Datamate
Made to order
3 similiar products View products
Samacsys account required
No login is required
Product Description

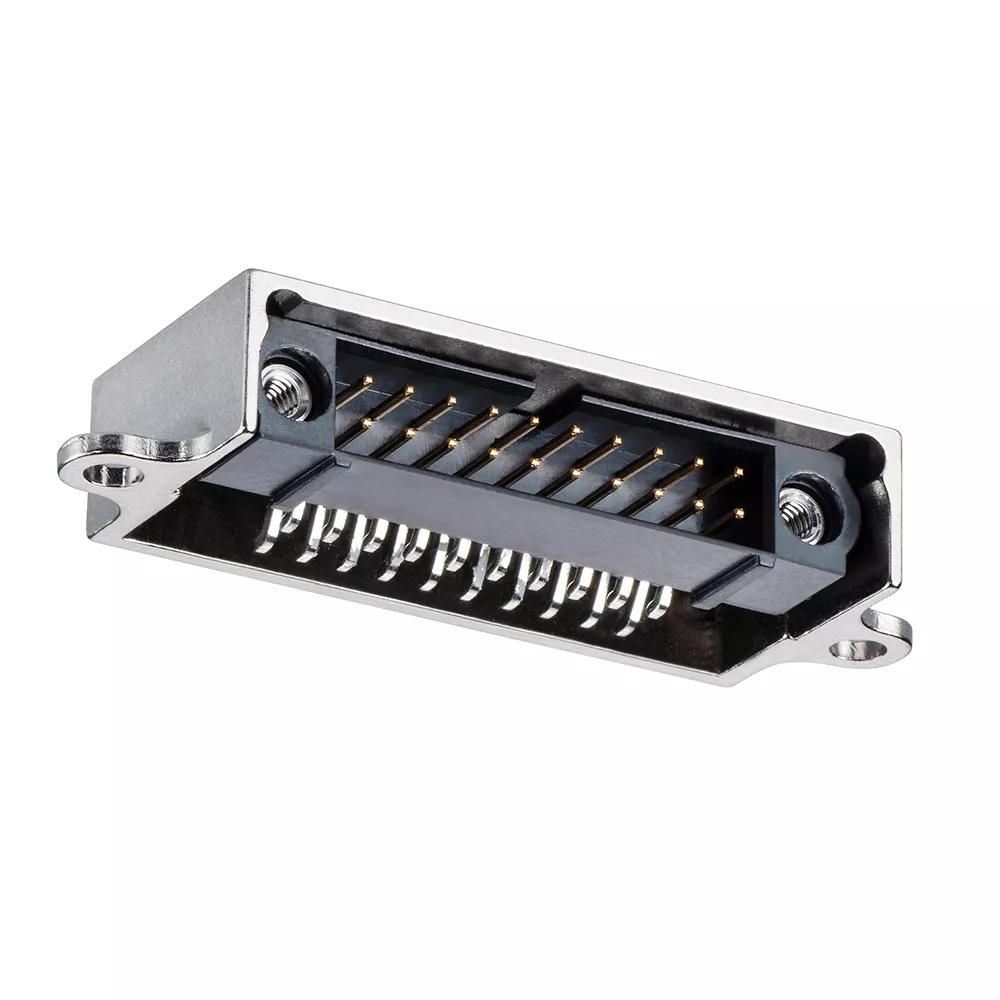

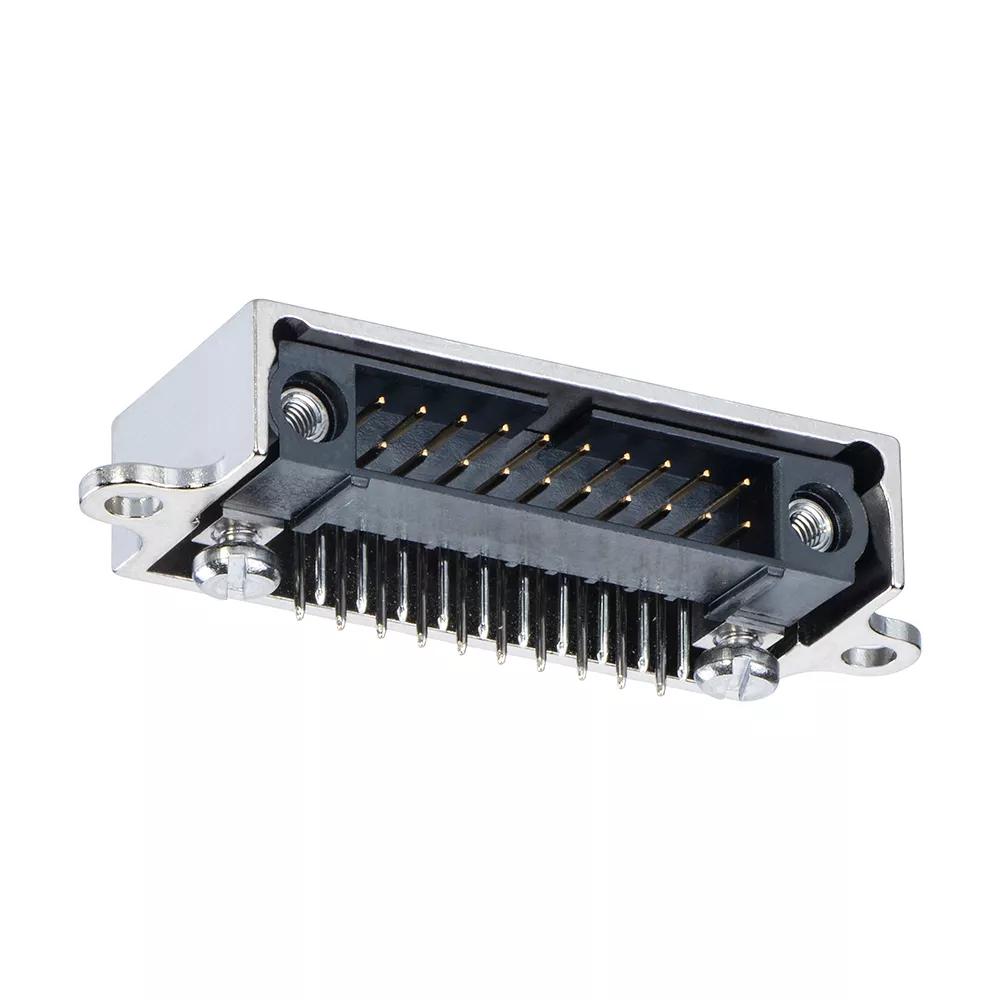

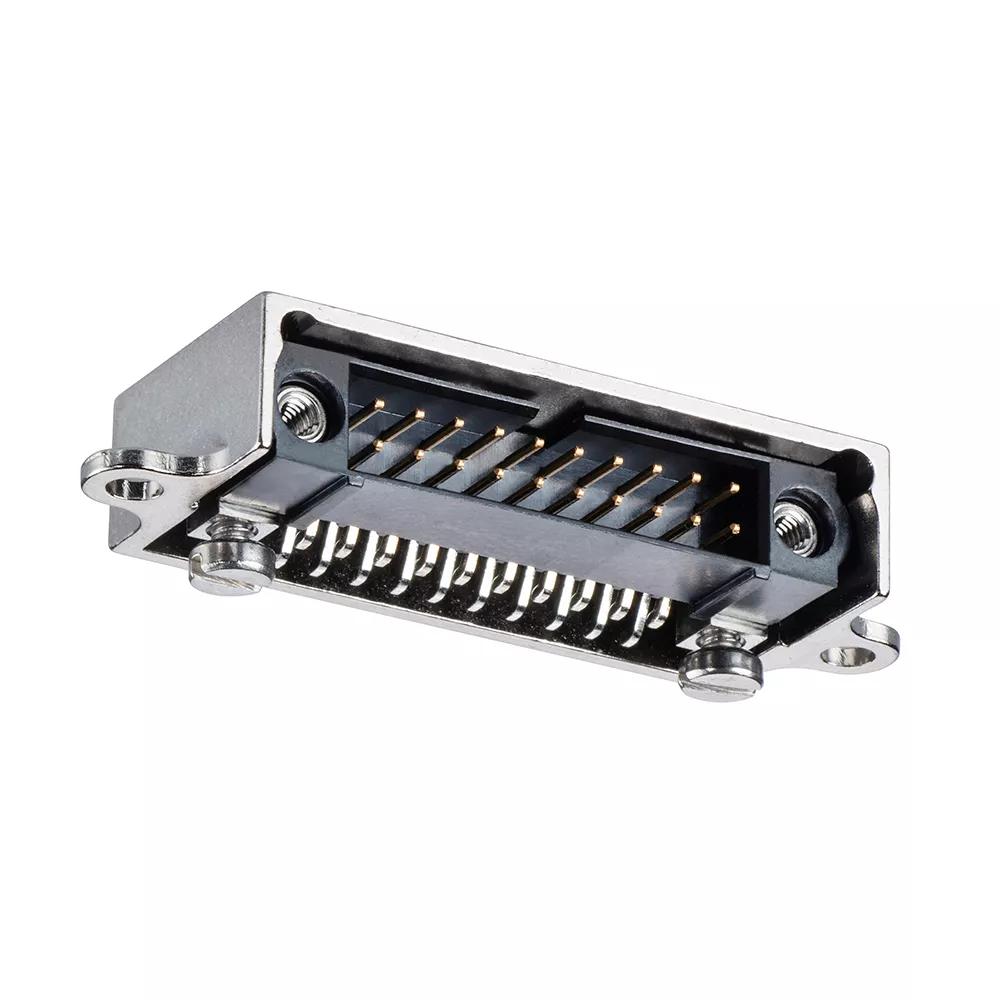

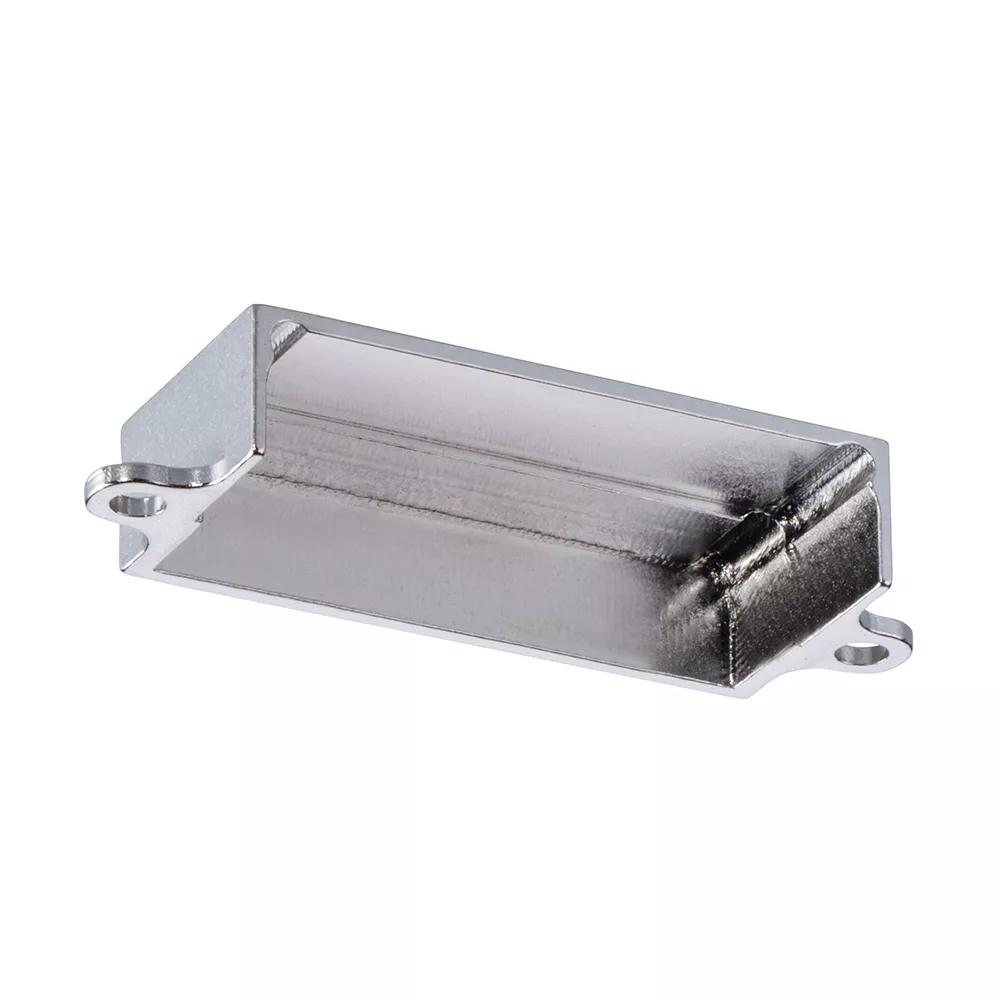

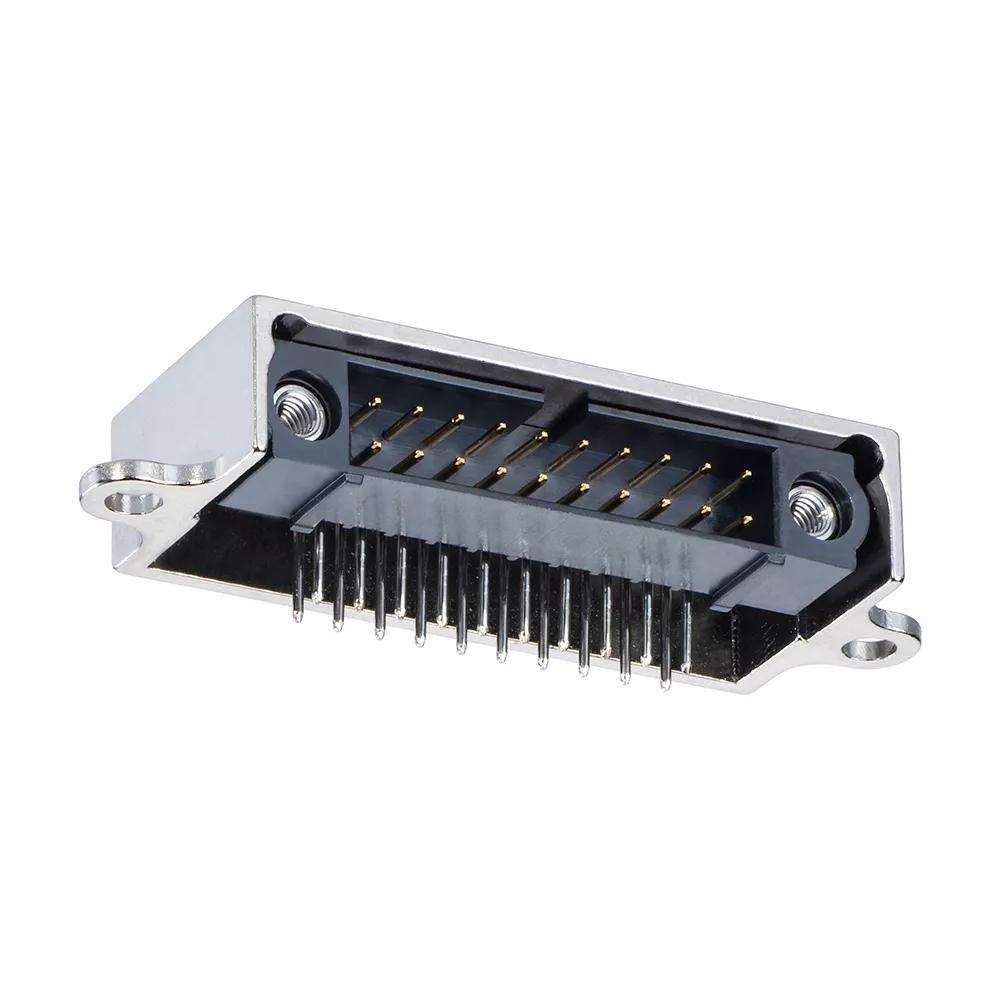

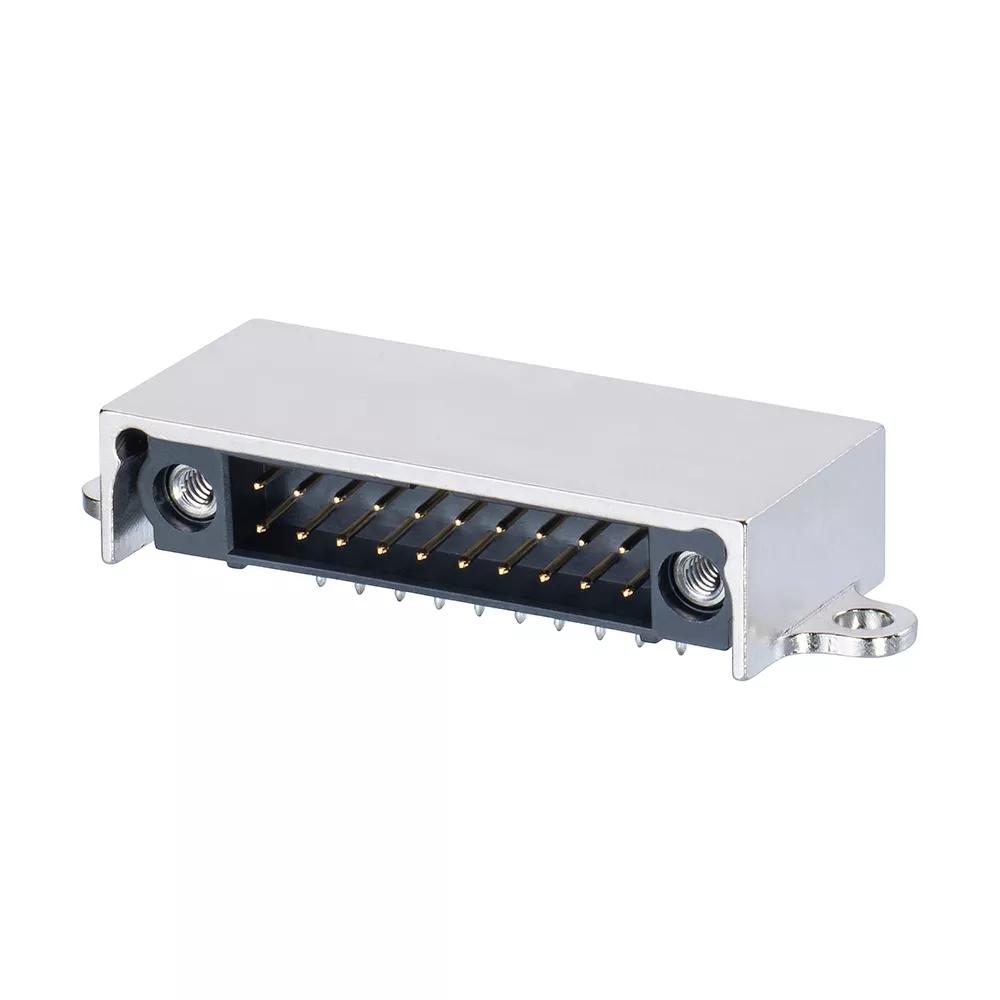

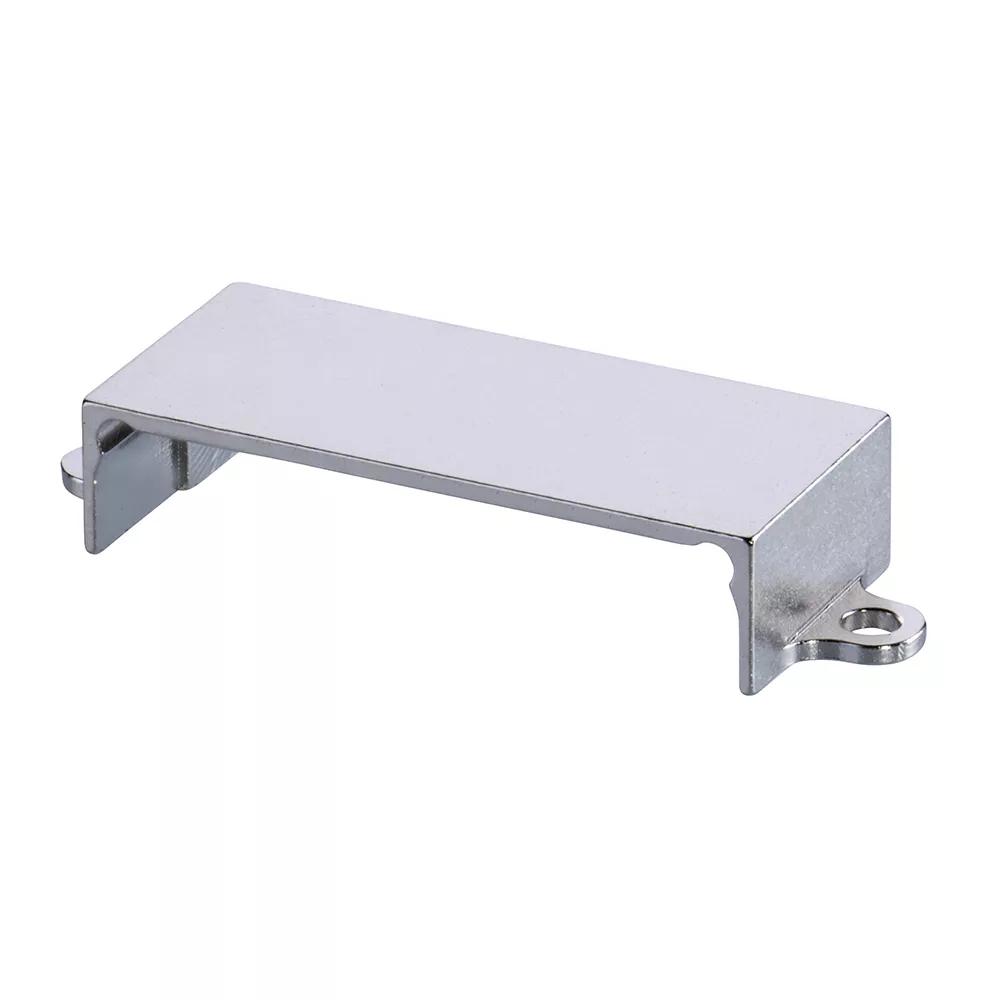

- Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors – Throughboard or Surface Mount. Accessory only – connectors to be purchased separately.
- Suitable for J-Tek (all signal contacts) with 22 (11+11) contacts, or equivalent sized Mix-Tek connectors. Connectors can be fitted with internal or board-mounting fixings..
- Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B, combined with hex nut M80-2430000B or slotted nut M80-2130000B for mounting to PCBs up to 2mm thickness.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Connector Orientation:
Horizontal
Connection Type:
Board Mount
Operating Temperature:
-55°C to +125°C
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
22
Materials
Housing Material:
Aluminium Alloy
Housing Colour:
Nickel
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
2.693g
Overall Dimensions (L x W x D) in mm:
42.80 x 14.00 x 7.40
Height of Connector above PCB:
7.40mm
