M80-9041802

9+9 Pos. Male Horizontal Metal Backshell for J-Tek or Mix-Tek

2.00mm Pitch High-Reliability Connector - Datamate

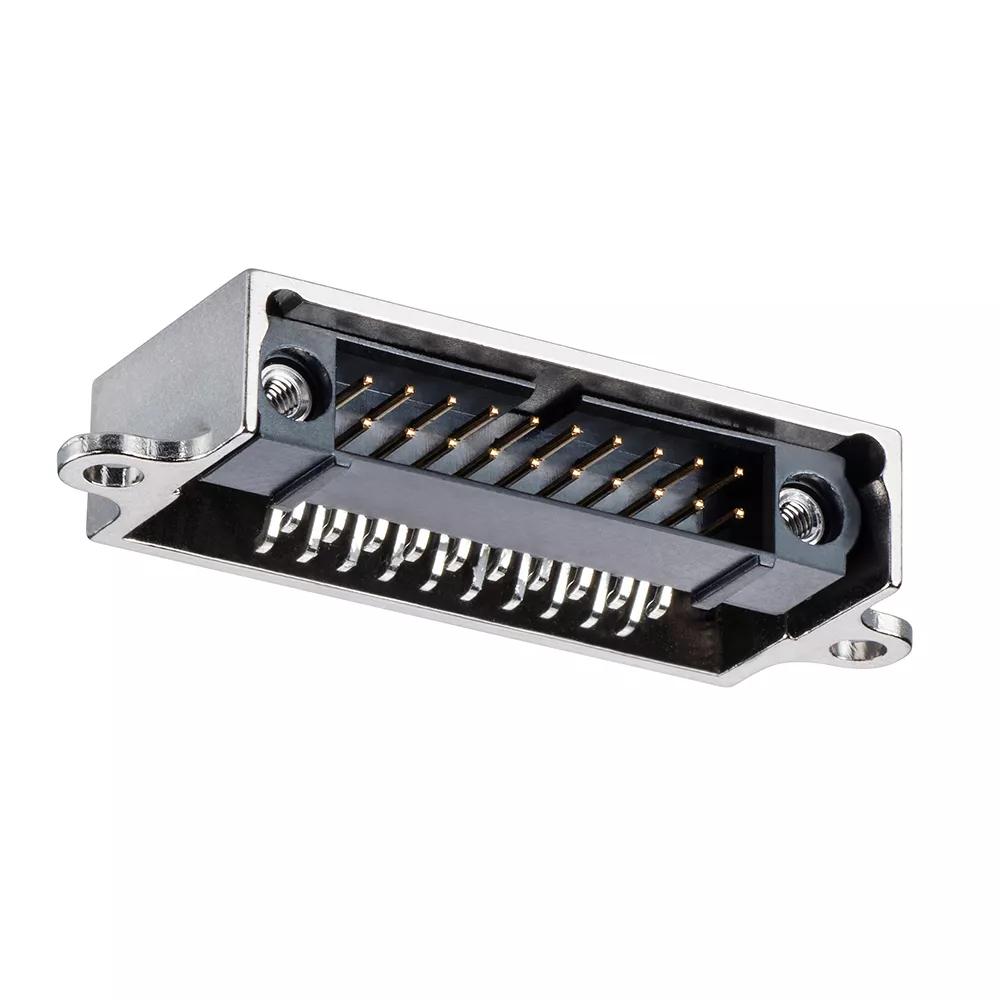

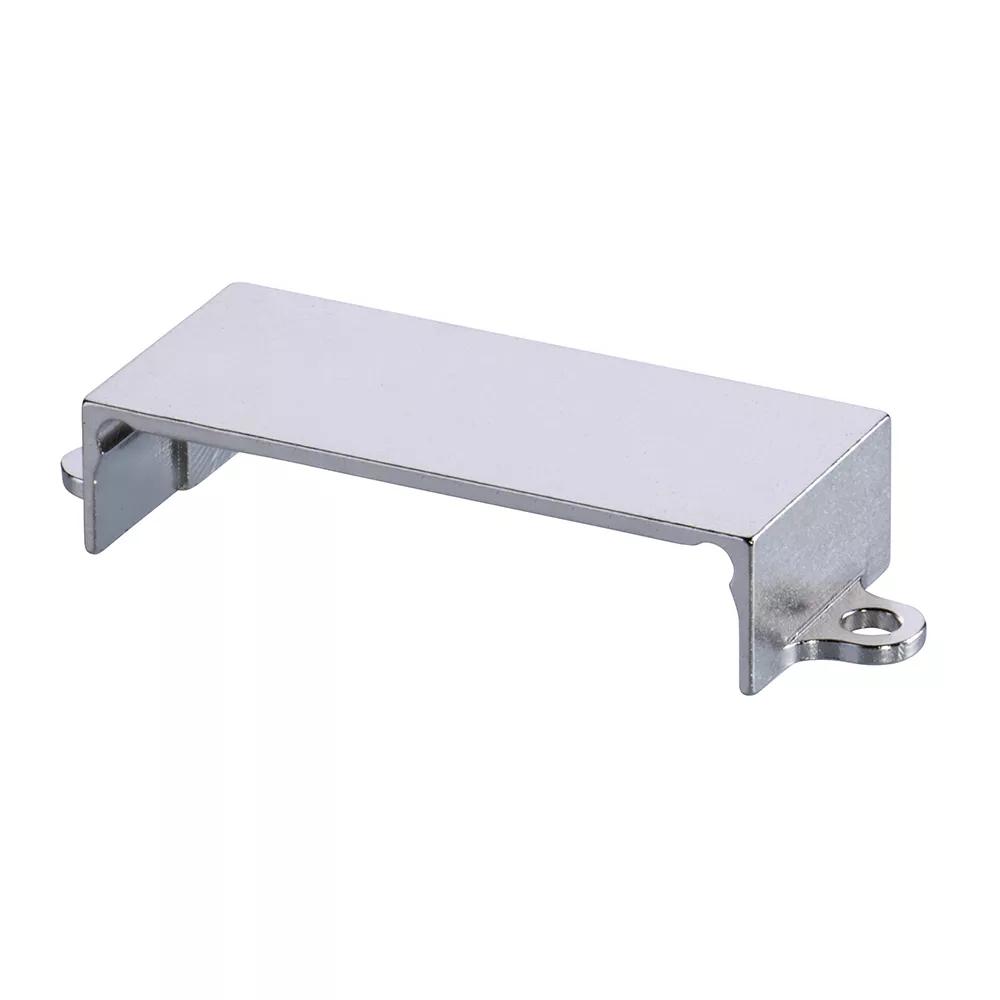

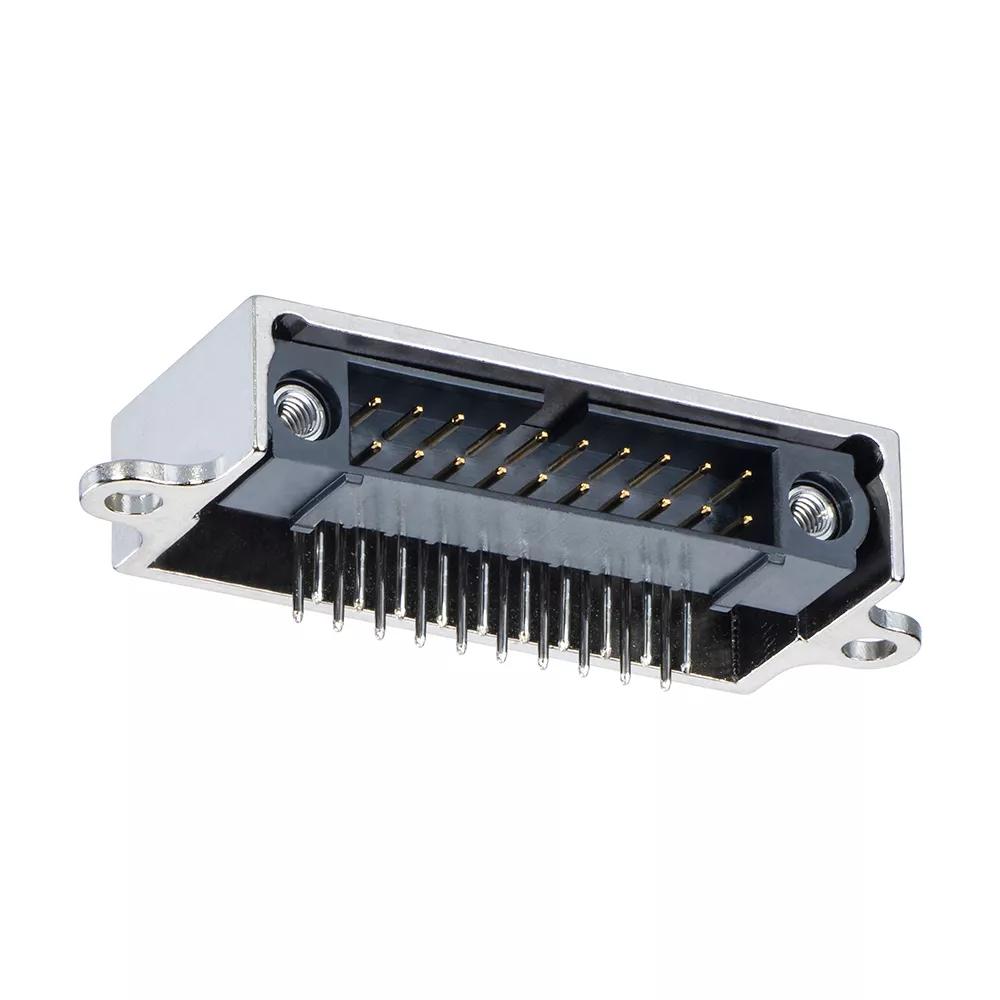

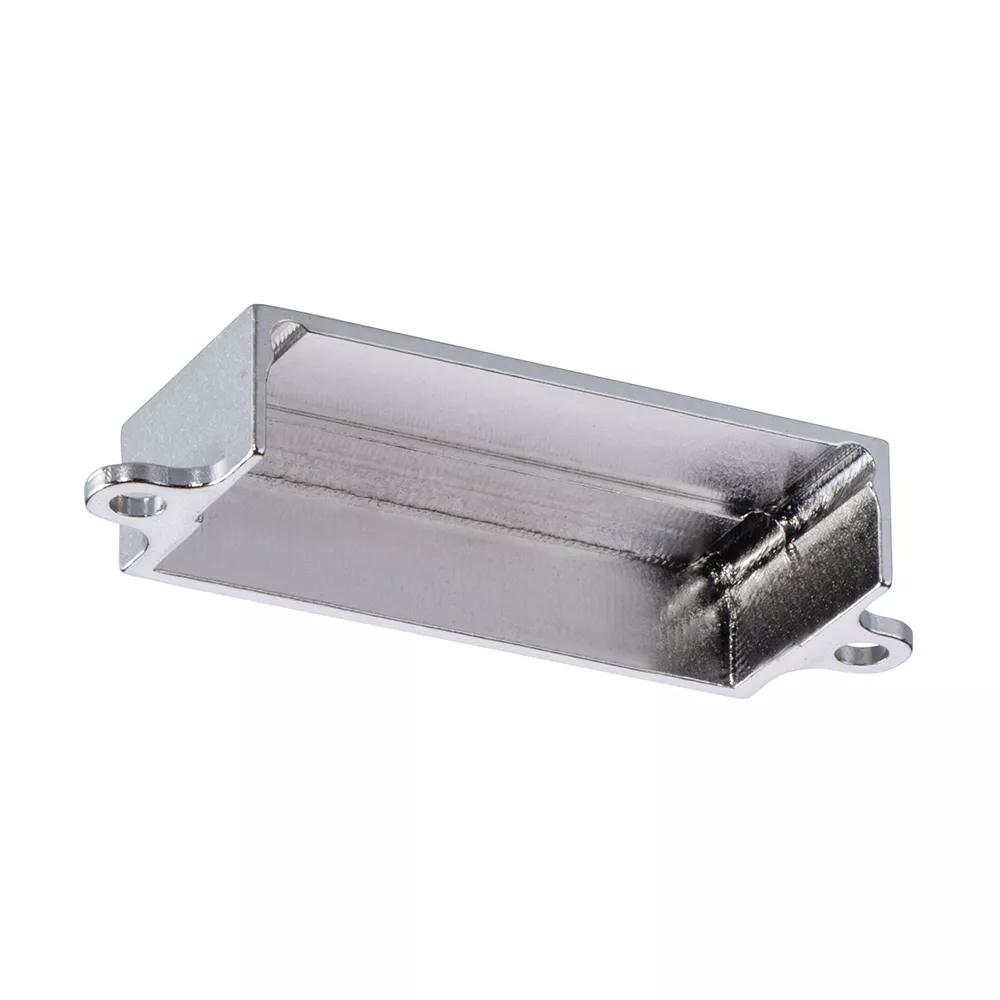

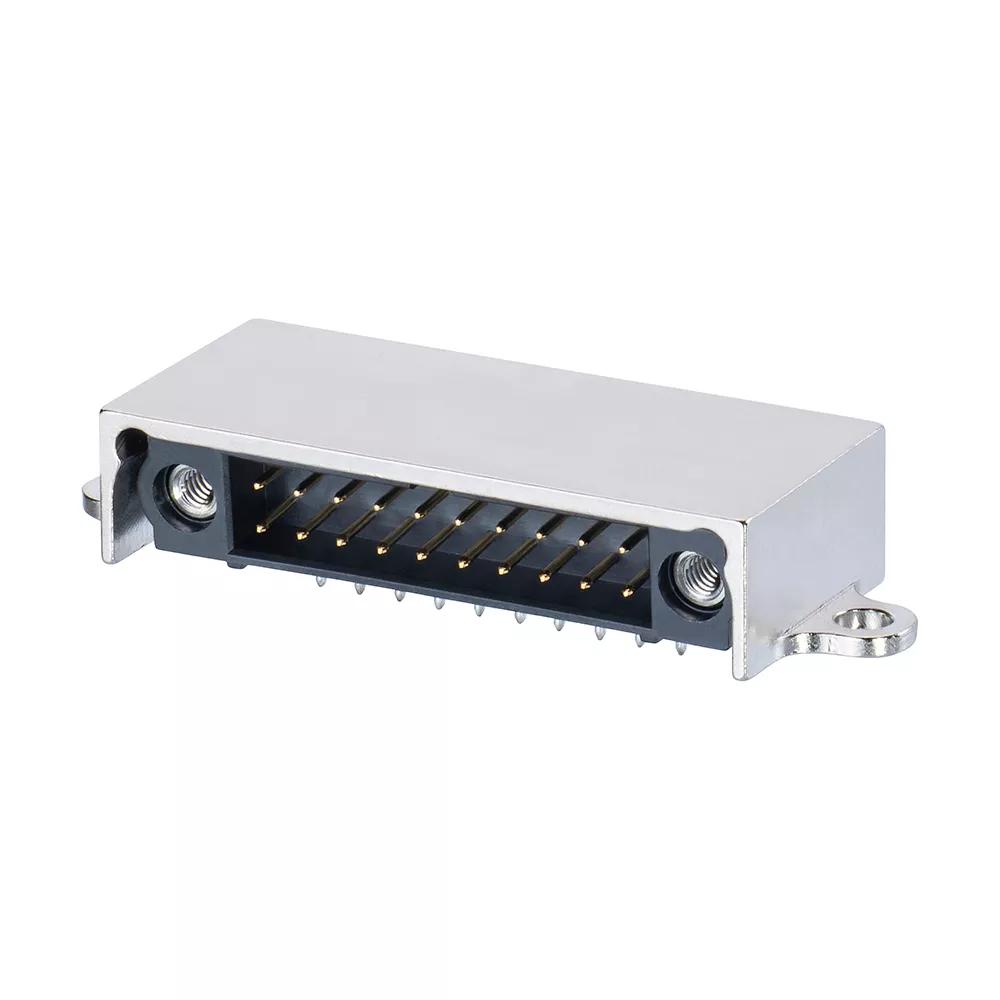

  • Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors – Throughboard or Surface Mount. Accessory only – connectors to be purchased separately.
  • Suitable for J-Tek (all signal contacts) with 18 (9+9) contacts, or equivalent sized Mix-Tek connectors. Connectors can be fitted with internal or board-mounting fixings..

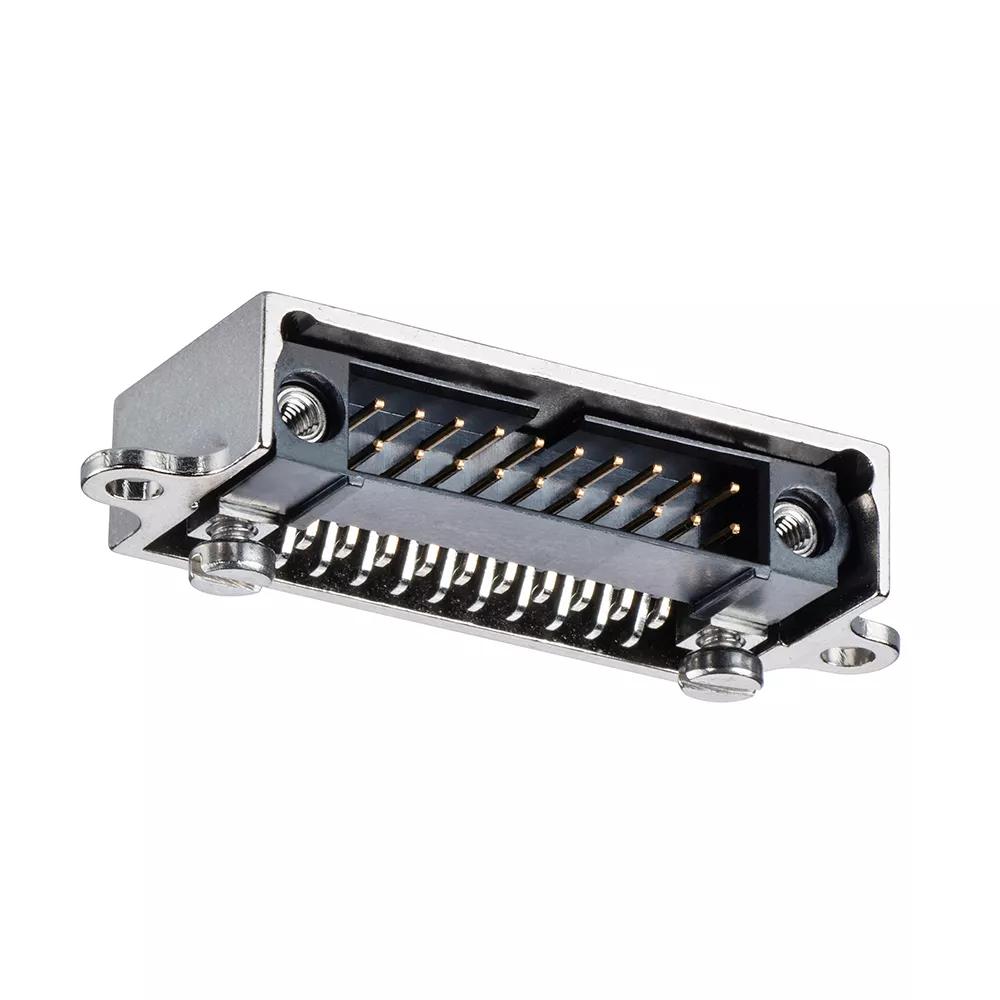

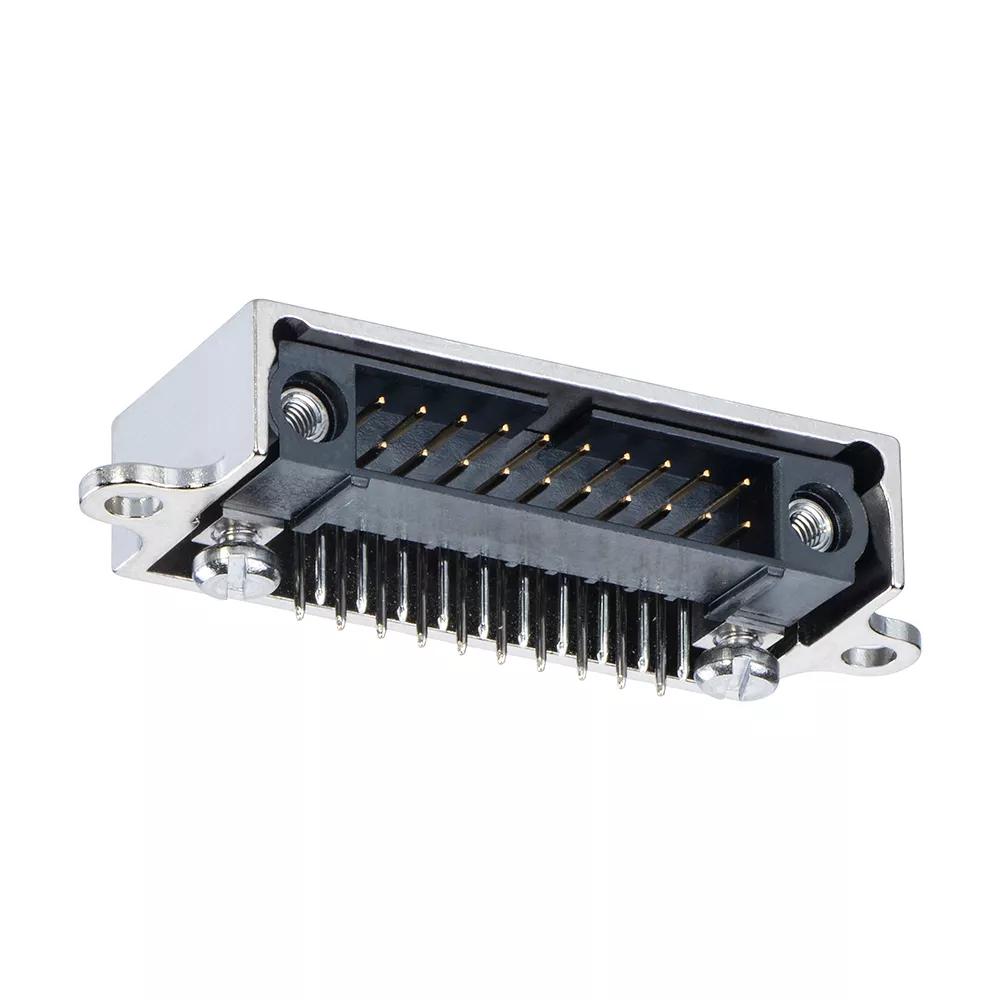

  • Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B, combined with hex nut M80-2430000B or slotted nut M80-2130000B for mounting to PCBs up to 2mm thickness.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Connector Orientation:

Horizontal

Connection Type:

Board Mount

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

18

Materials

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

2.431g

Overall Dimensions (L x W x D) in mm:

38.80 x 14.00 x 7.40

Height of Connector above PCB:

7.40mm

Availability

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required
