M80-9041202

6+6 Pos. Male Horizontal Metal Backshell for J-Tek or Mix-Tek

2.00mm Pitch High-Reliability Connector - Datamate

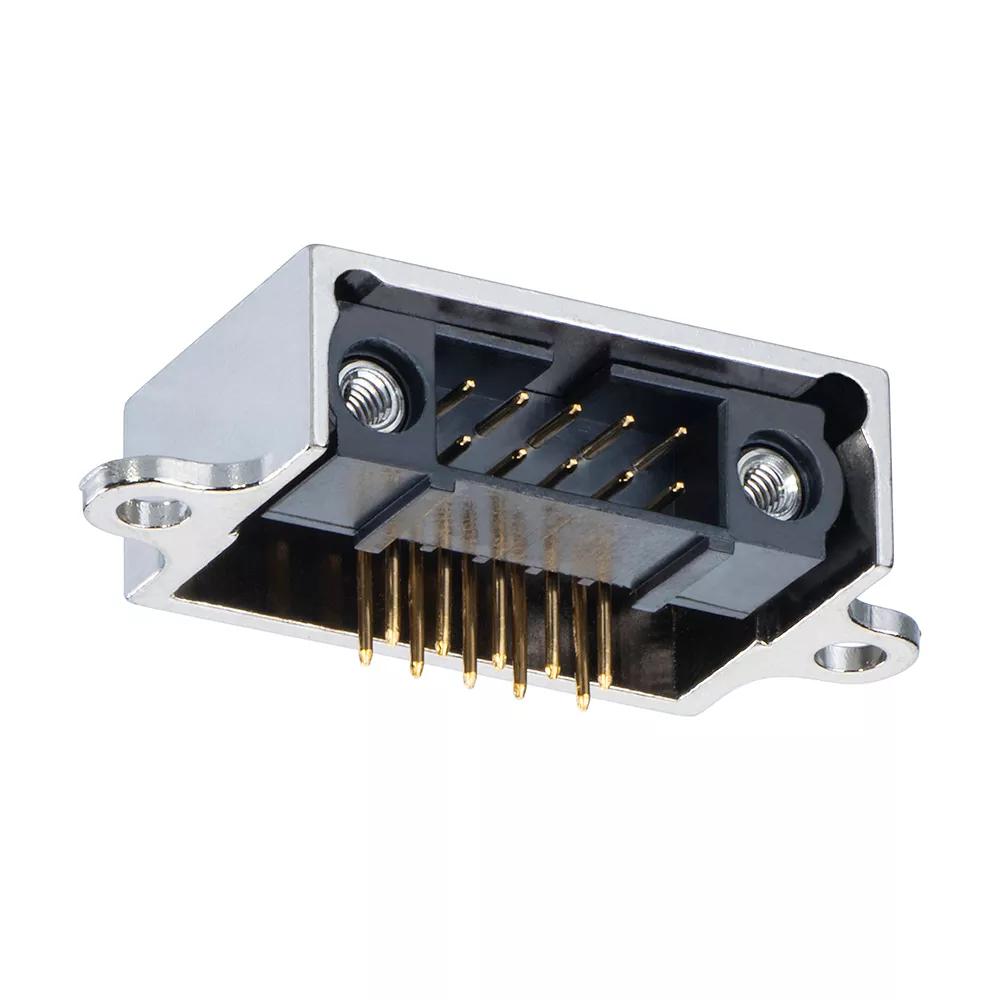

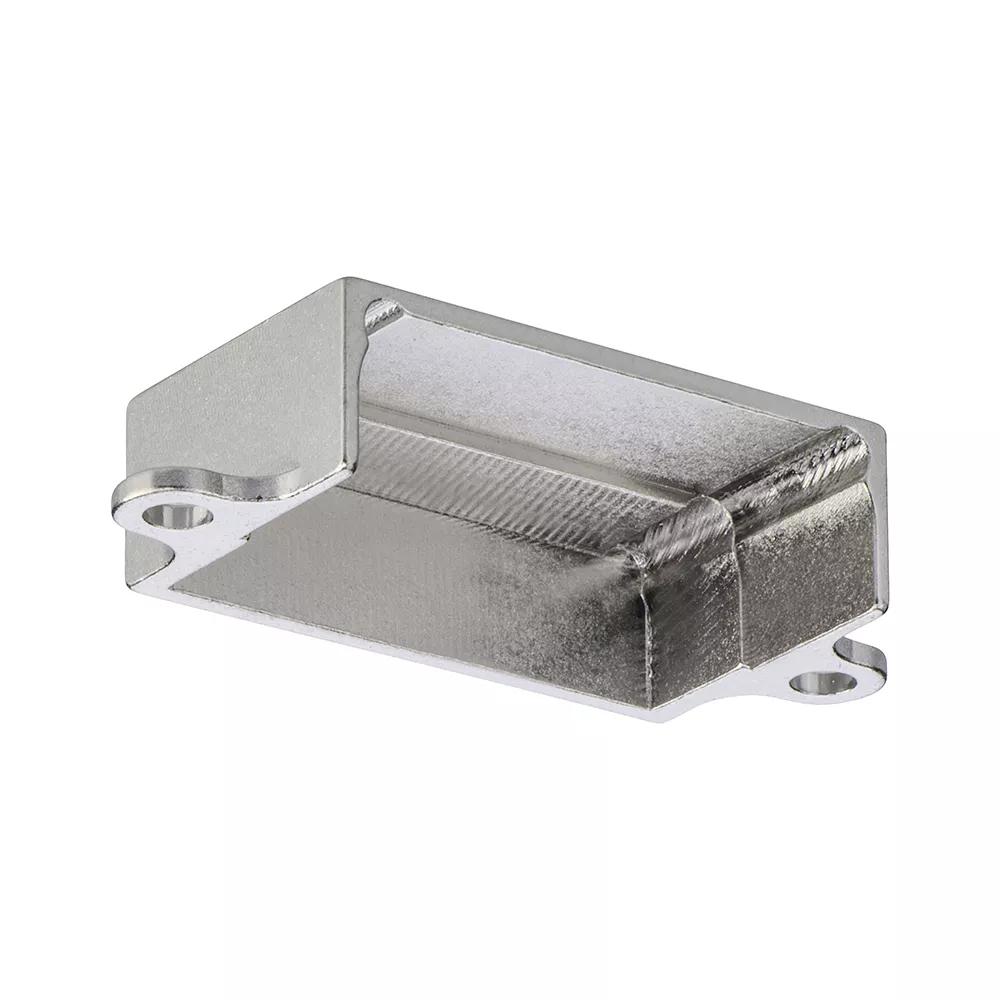

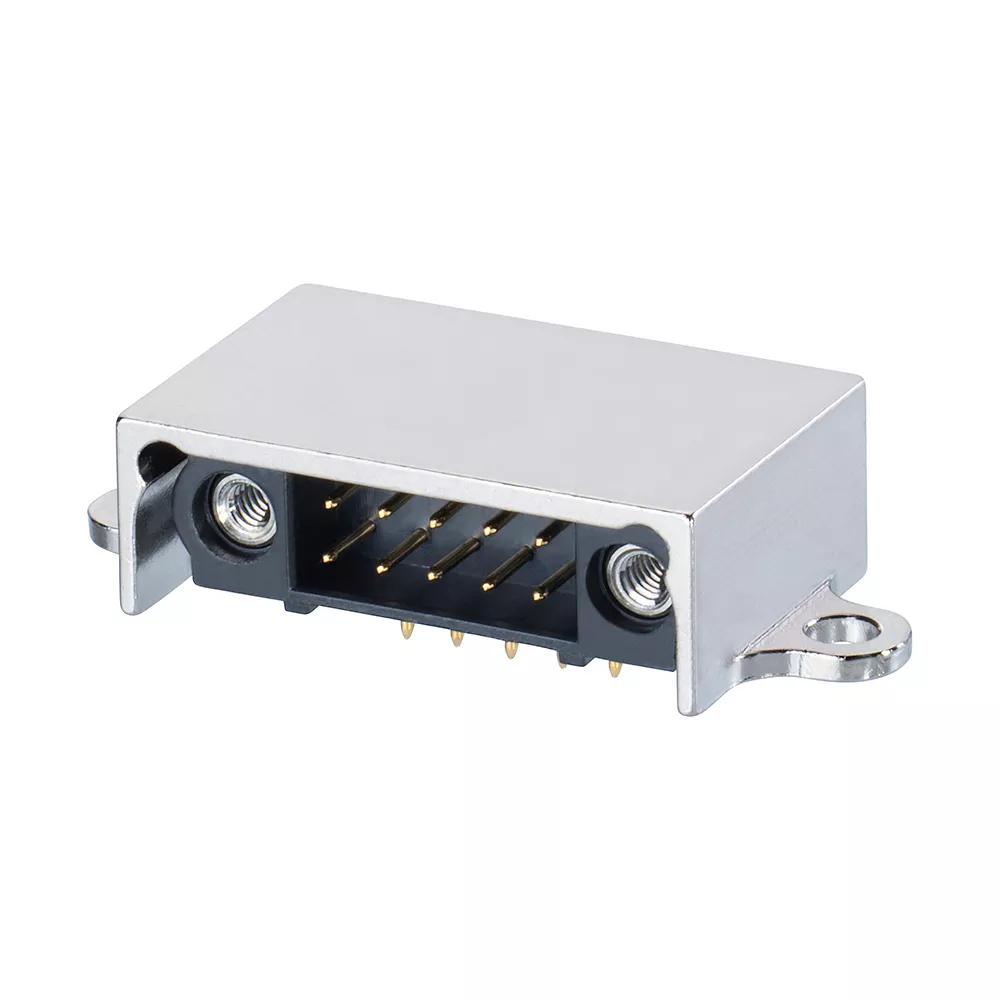

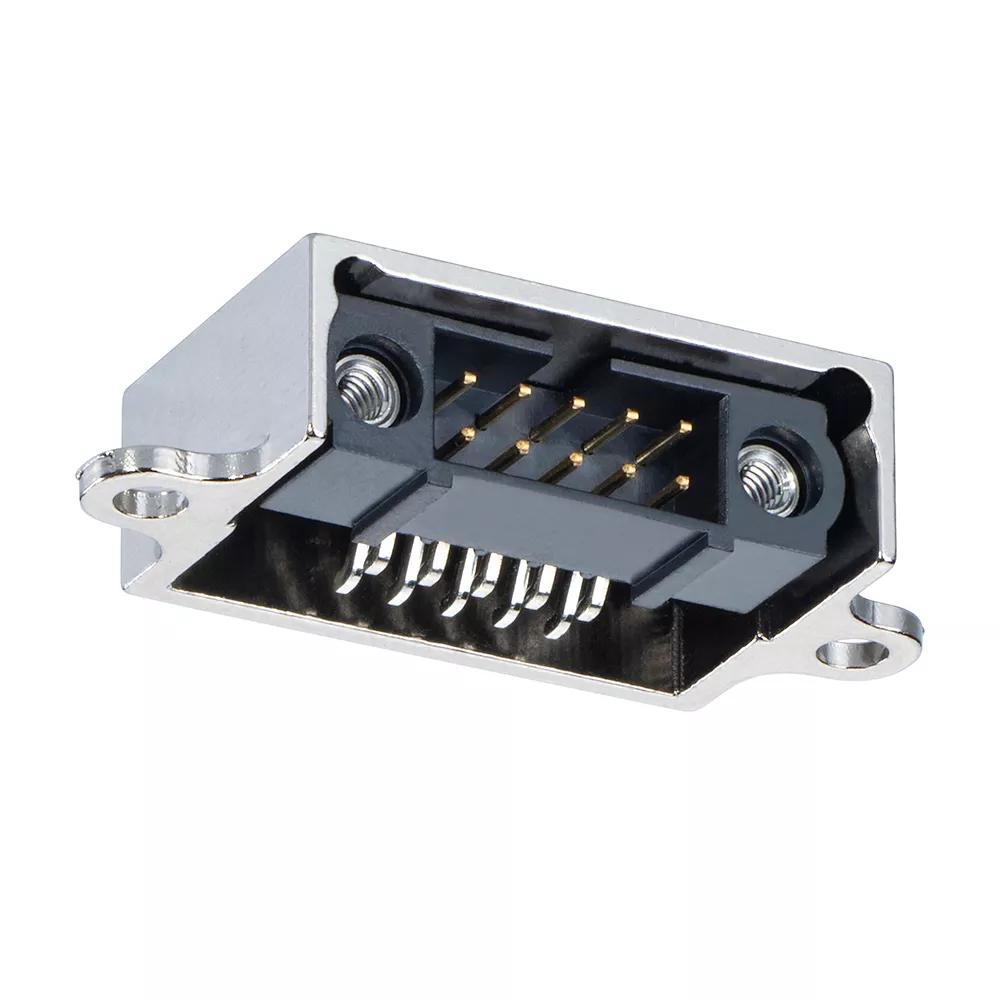

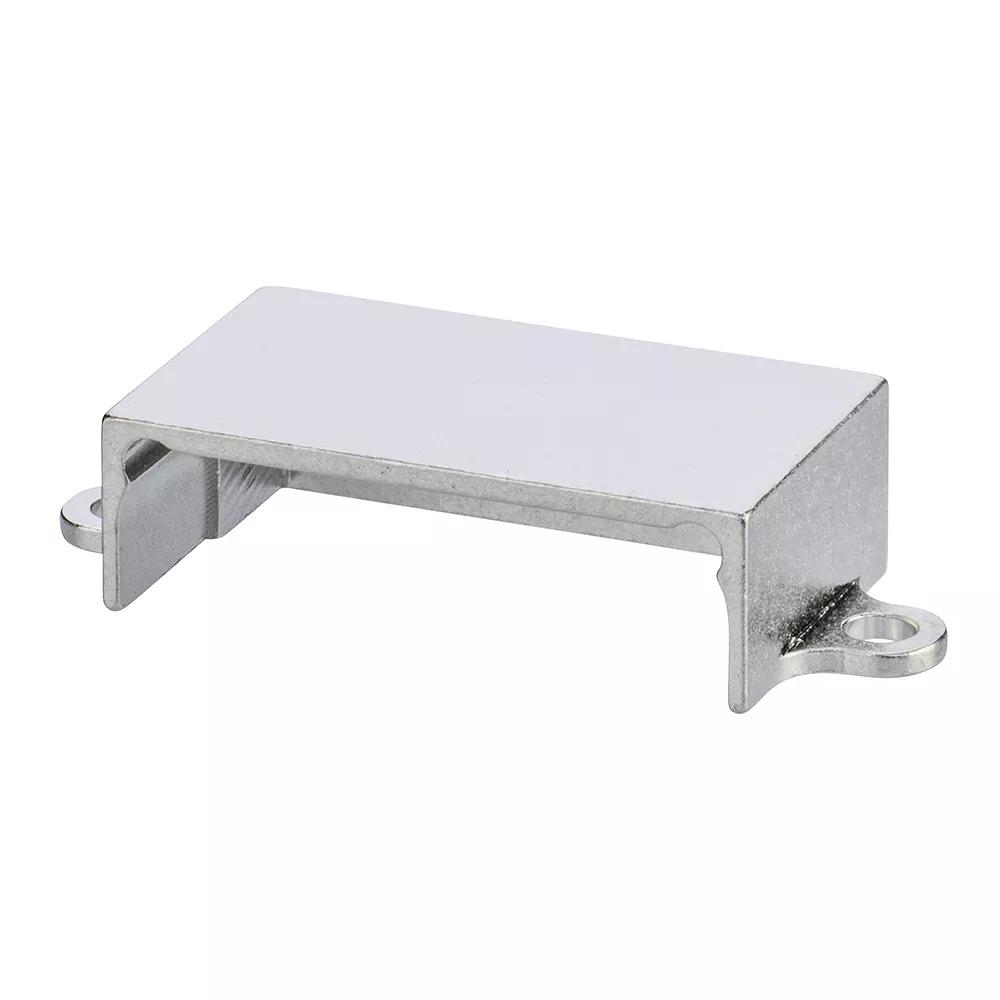

  • Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors - Throughboard or Surface Mount. Accessory only - connectors to be purchased separately.

  • Suitable for J-Tek (all signal contacts) with 12 (6+6) contacts, or equivalent sized Mix-Tek connectors. Connectors can be fitted with internal or board-mounting fixings..

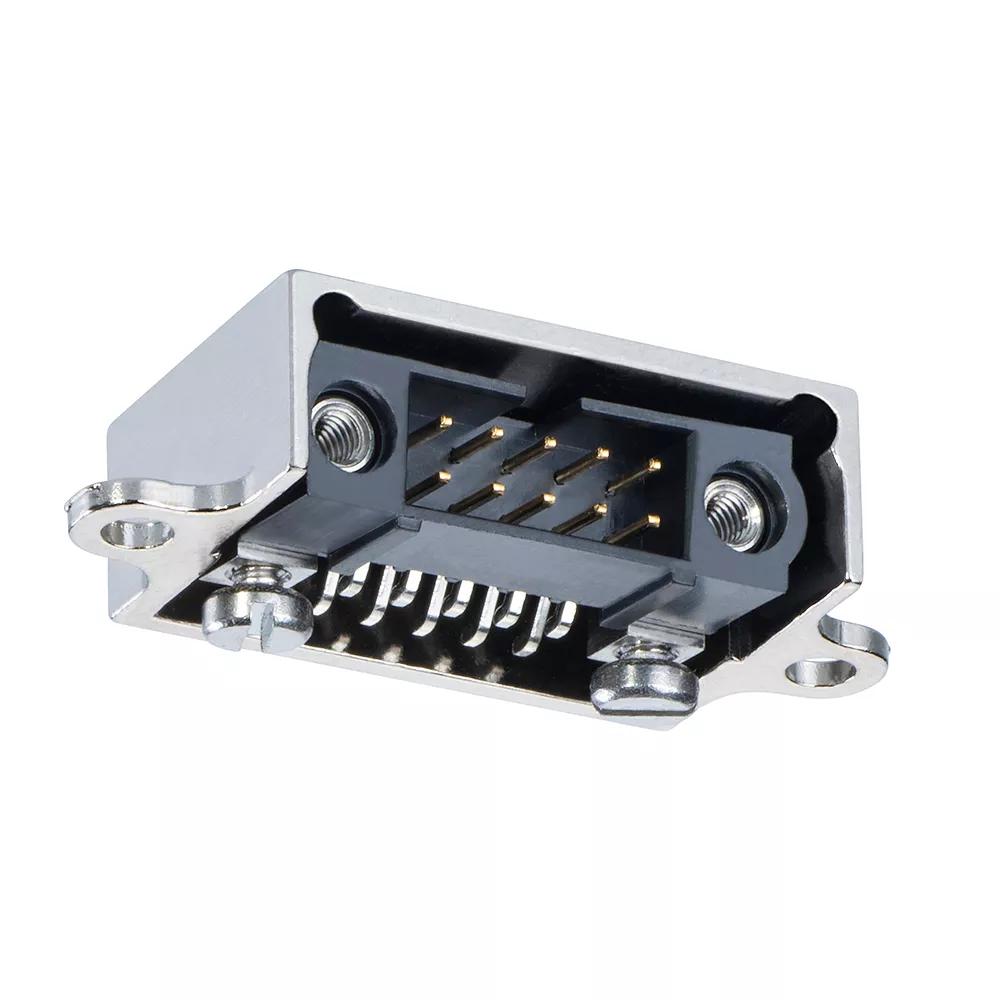

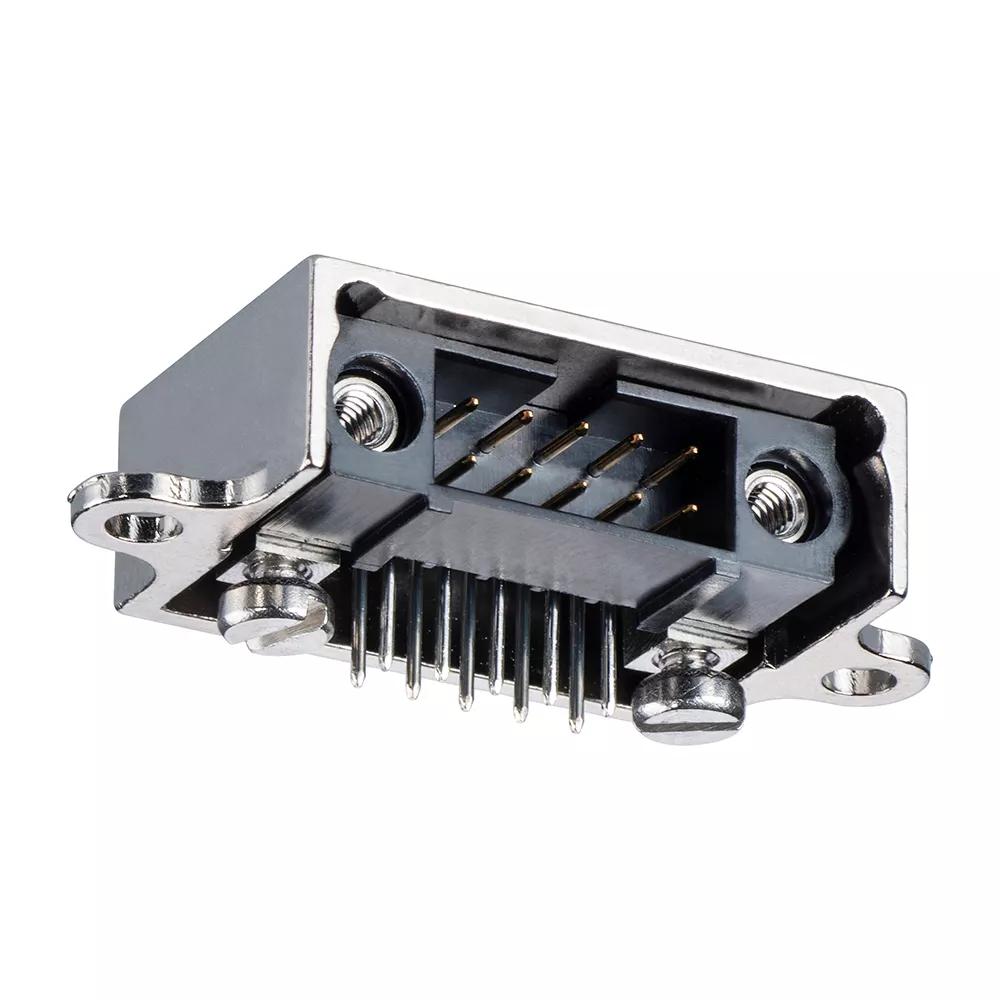

  • Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B, combined with hex nut M80-2430000B or slotted nut M80-2130000B for mounting to PCBs up to 2mm thickness.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Compatible with Board Mount

  • Number of Rows:

    2

  • Connector Orientation:

    Horizontal

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    12

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Cuttable:

    No

Materials

  • Housing Material:

    Aluminium Alloy

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Nickel

Dimensions

  • Contact Pitch:

    2.00mm/4.00mm (0.079"/0.157")

  • Weight:

    2.039g

  • Dimensions:

    32.80 x 14.00 x 7.40

  • Height of Connector above PCB:

    7.40mm

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - M80-904.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

    • Product Information

  • Product Training Module - Overview of the Datamate Metal Backshells range

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Datasheet - Datamate Mix-Tek range (HRi)

    • Test Reports

  • Test Report HT079 - Datamate Backshells and Shielded Cables Attenuation Testing

    • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Material composition for M80-904 series

  • RoHS - M80-9041202
