M80-9041002

5+5 Pos. Male Horizontal Metal Backshell for J-Tek or Mix-Tek

2.00mm Pitch High-Reliability Connector - Datamate

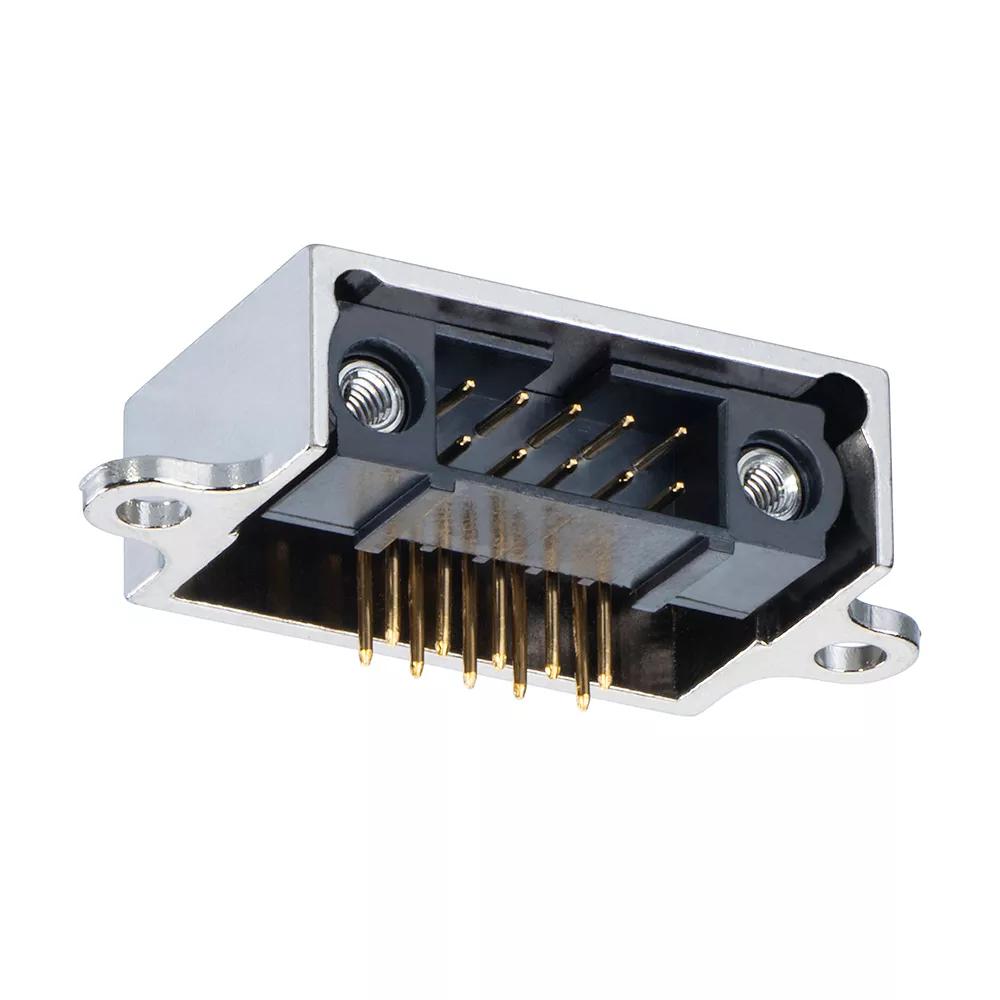

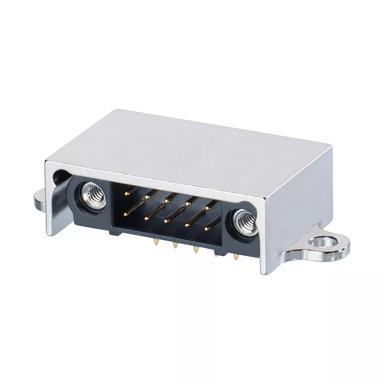

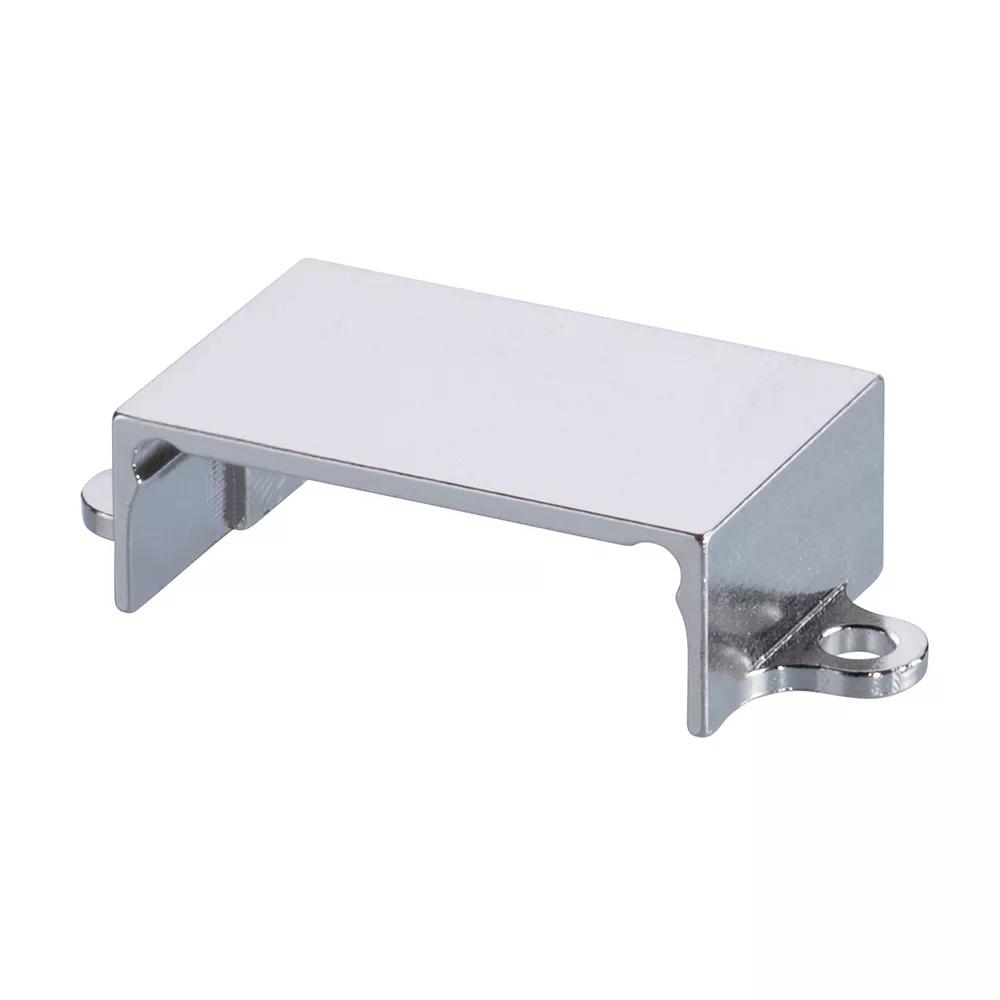

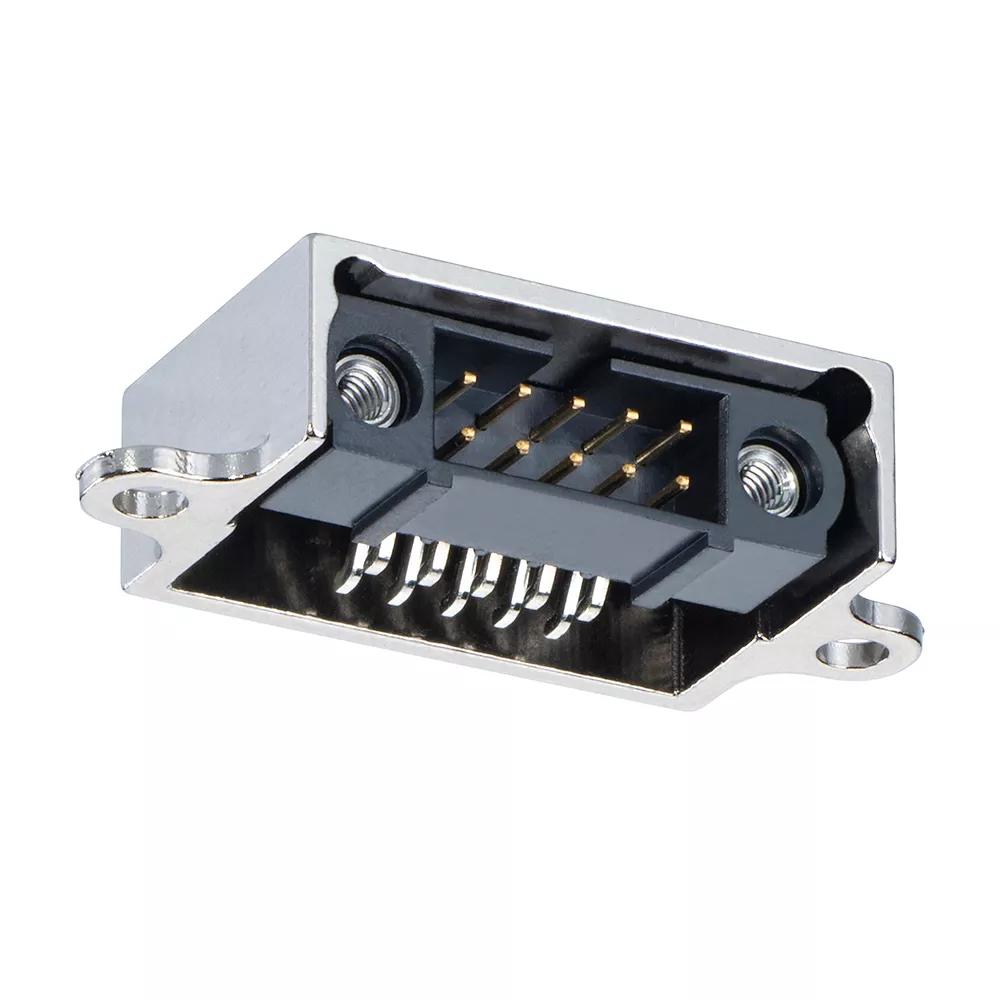

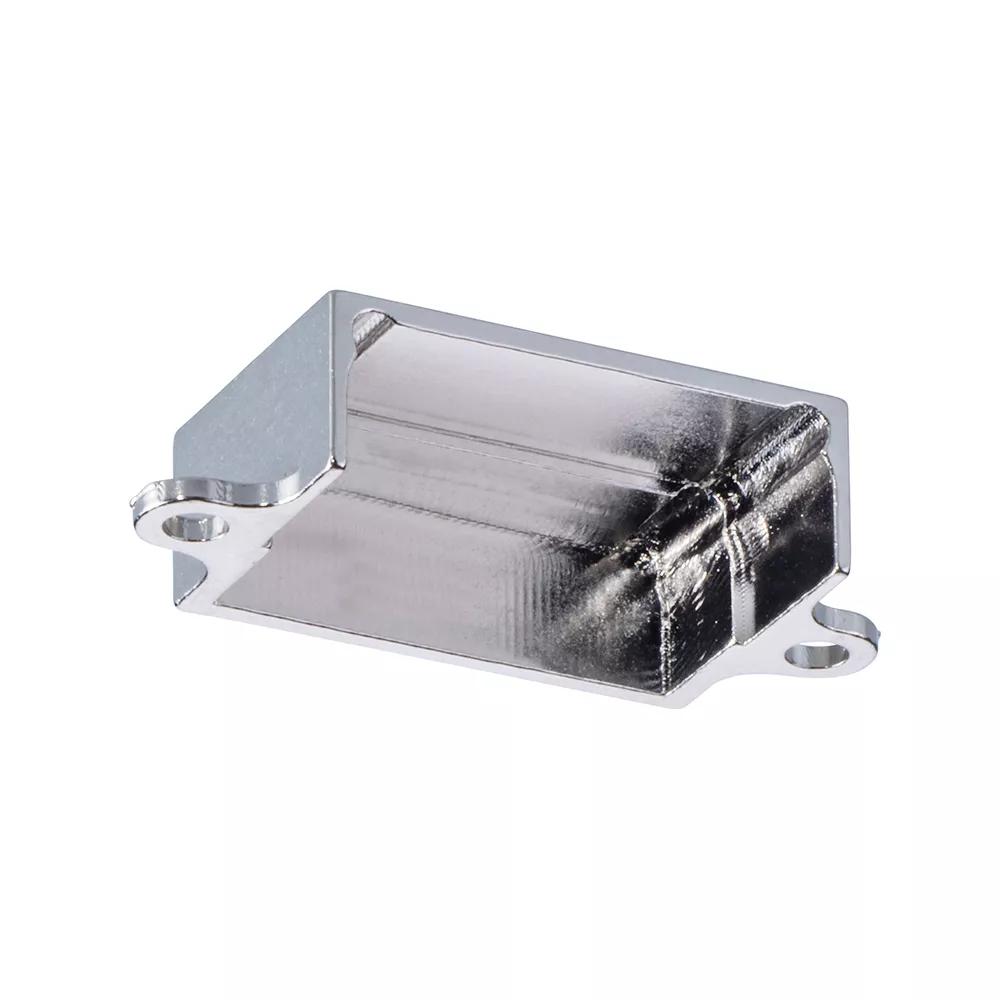

  • Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors – Throughboard or Surface Mount. Accessory only – connectors to be purchased separately.
  • Suitable for J-Tek (all signal contacts) with 10 (5+5) contacts, or equivalent sized Mix-Tek connectors. Connectors can be fitted with internal or board-mounting fixings..

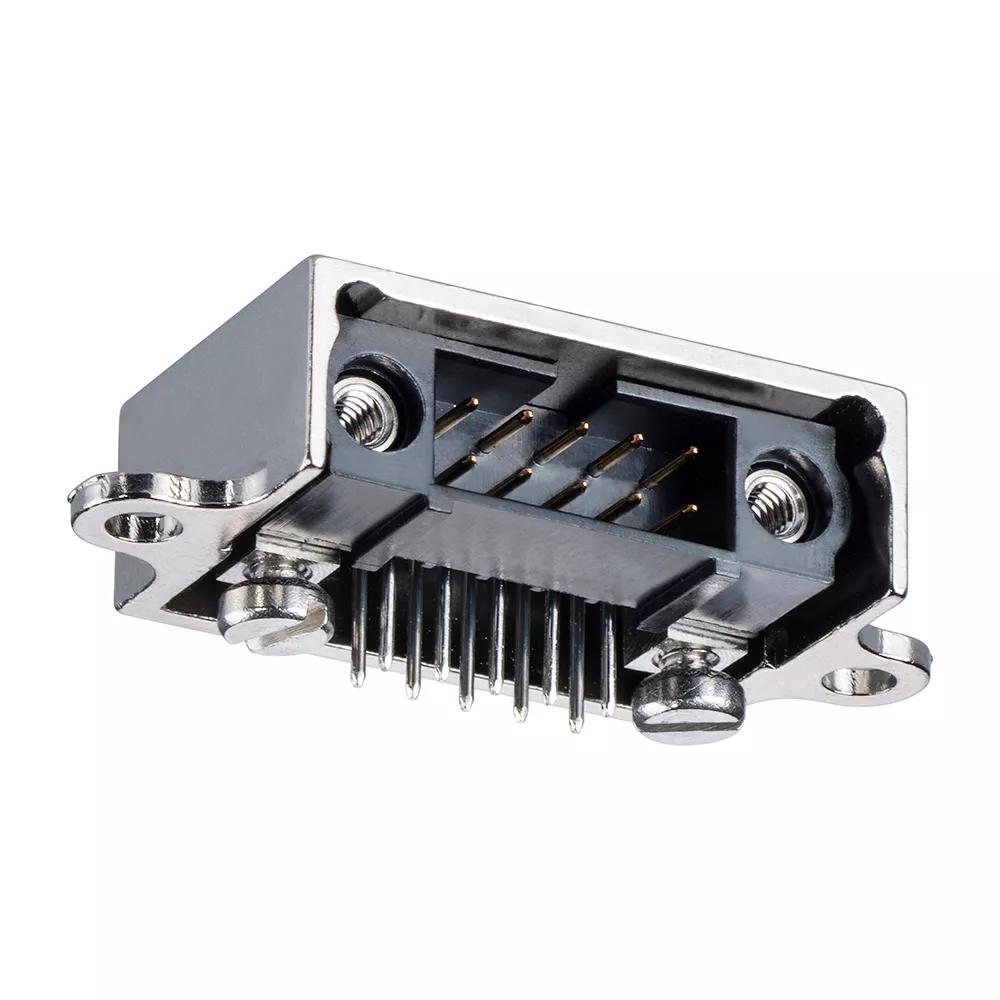

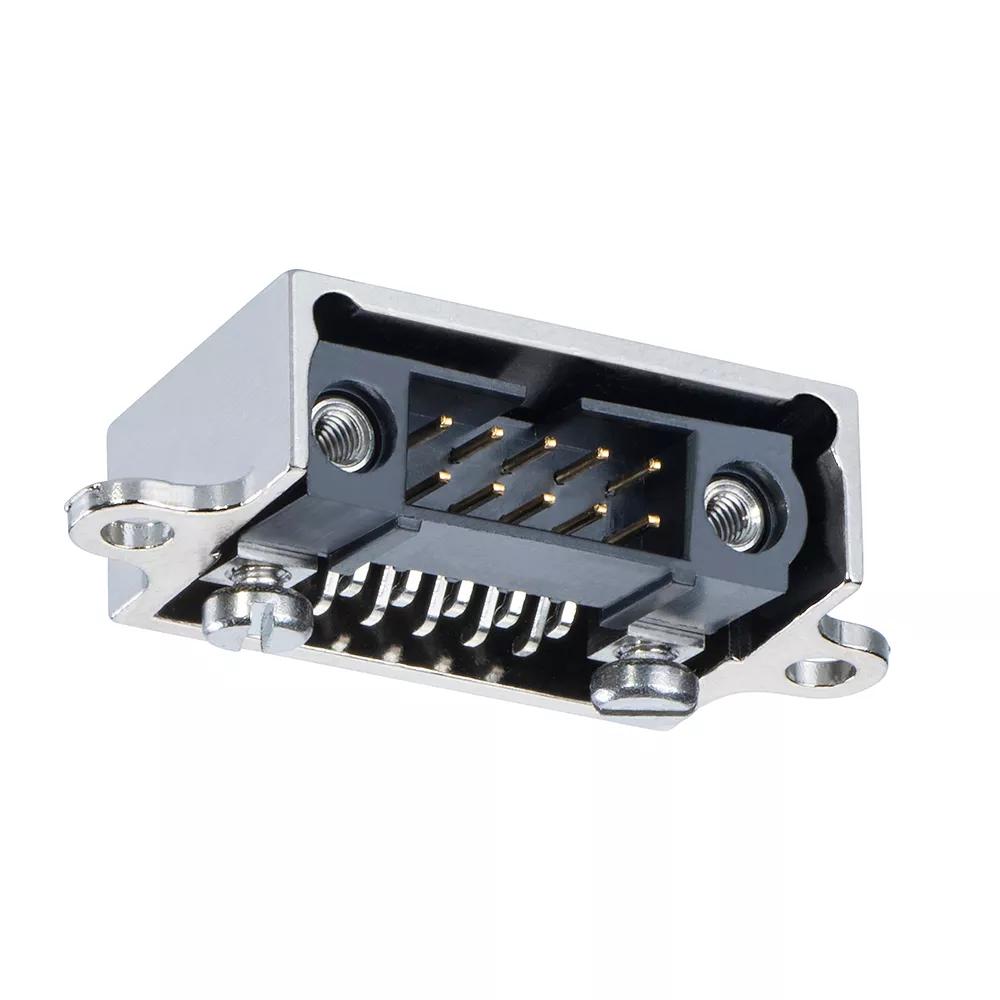

  • Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B, combined with hex nut M80-2430000B or slotted nut M80-2130000B for mounting to PCBs up to 2mm thickness.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Connector Orientation:

Horizontal

Connection Type:

Board Mount

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.908g

Overall Dimensions (L x W x D) in mm:

30.80 x 14.00 x 7.40

Height of Connector above PCB:

7.40mm

Availability

20 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 10
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 10

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-904.pdf

ZIP

M80-9041002 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M80-904 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Datamate Metal Backshells range

OTHER DOWNLOADS

PDF

Catalog page - Datamate Introduction

PDF

Product Summary - Datamate Metal Backshells for J-Tek and Mix-Tek

PDF

Product Summary - Datamate J-Tek High-Reliability Connectors
