M80-8991705
17 Pos. Female SIL 22 AWG Cable Conn. Kit, for Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
Loading… Check availability
7 similar products View products
Traceparts account required
Product Description

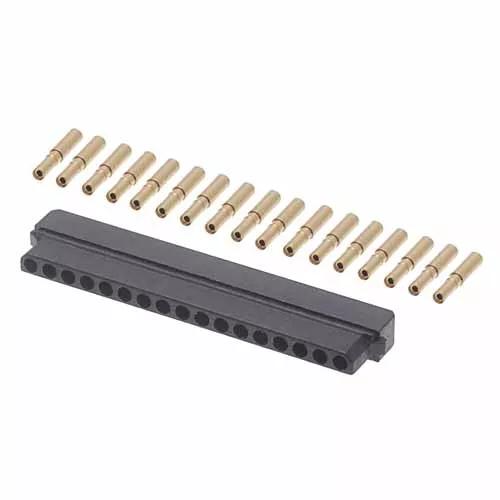

- Complete kit: Single Row housing, 17 x barrel crimp contacts loose – Gold finish on contact area and termination.
- Large Bore – suitable for 22 AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0110005.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Cable Conductor Size:
22 AWG
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Style of Latches:
Compatible with latches
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Signal Contacts:
17
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material:
PBT
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
1.893g
Overall Dimensions (L x W x D) in mm:
37.15 max x 3.40 x 8.15 max
Mating Profiles:
Frequently Asked Questions Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
Was this answer useful?
What is the thinnest gauge of wire which can be used with this connector?
This connector is only designed to be used with 22AWG equipment wire. The diameter of the insulation must be below 1.1mm diameter to fit within the rear of the contact. However, only the conductor is crimped, so we do not specify a lower limit on the diameter of the insulation.
Was this answer useful?
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
Was this answer useful?
