M80-8990605

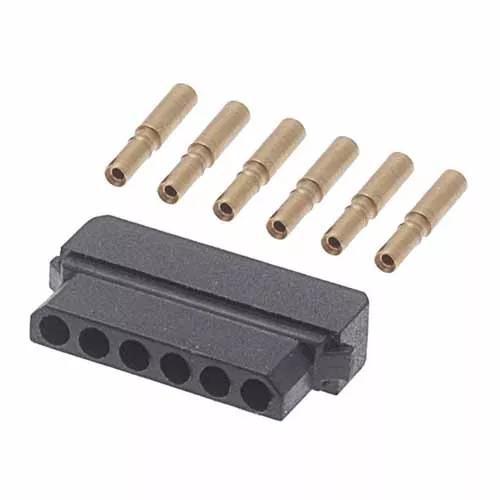

6 Pos. Female SIL 22AWG Cable Conn. Kit, for Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Complete kit: Single Row housing, 6 x barrel crimp contacts loose – Gold finish on contact area and termination.
  • Large Bore – suitable for 22AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0110005.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.7g

Overall Dimensions (L x W x D) in mm:

15.15 max x 3.40 x 8.15 max

Availability

1,105 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 349
Distributor Farnell
Location Europe
Quantity (Updated Daily) 246
Distributor Newark
Location USA
Quantity (Updated Daily) 238
Distributor Powell Electronics
Location Global
Quantity (Updated Daily) 153
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 119

Questions & Answers Ask a Question

When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.

What is the thinnest gauge of wire which can be used with this connector?

This connector is only designed to be used with 22AWG equipment wire. The diameter of the insulation must be below 1.1mm diameter to fit within the rear of the contact. However, only the conductor is crimped, so we do not specify a lower limit on the diameter of the insulation.

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
