M80-8891205

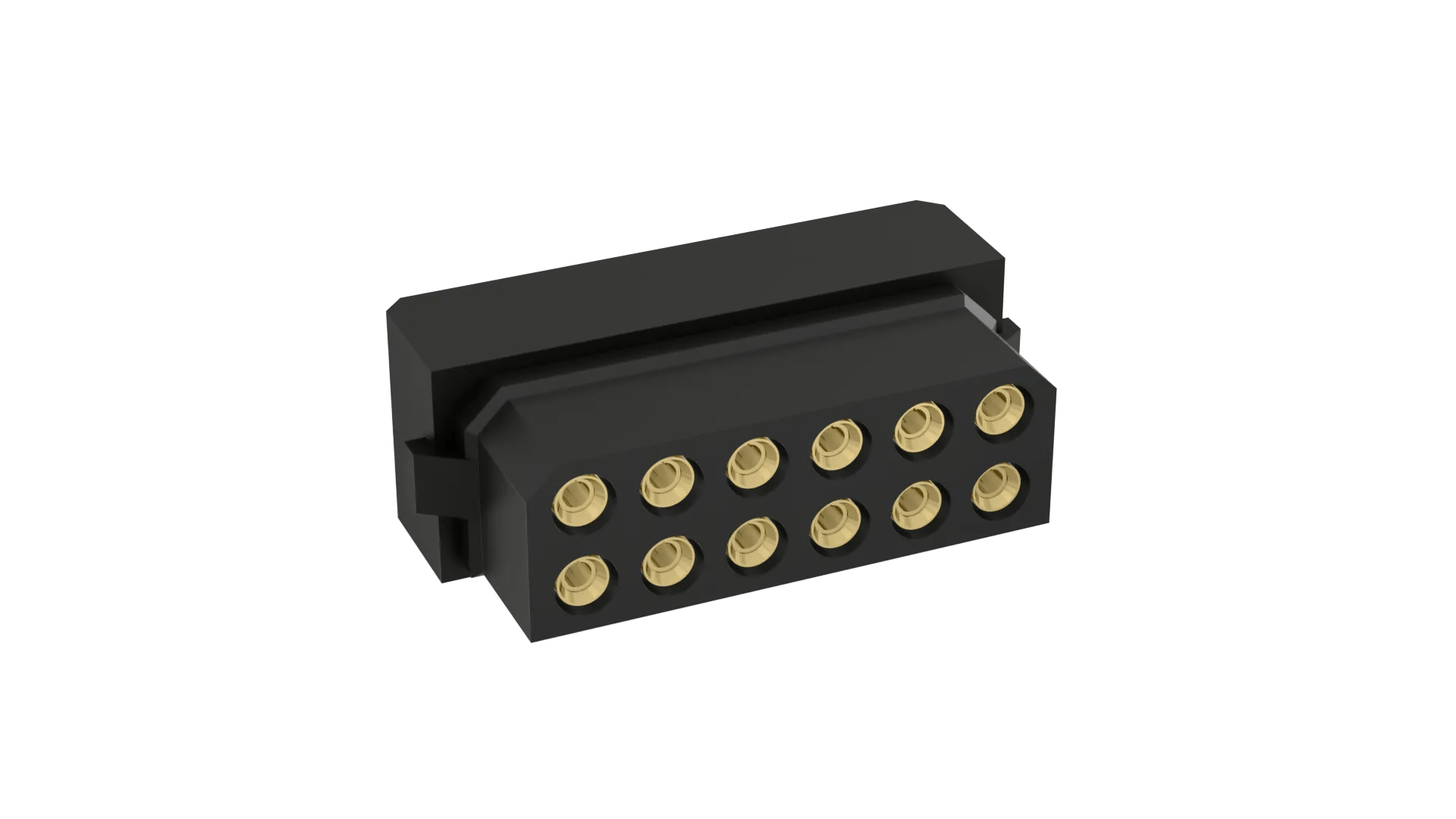

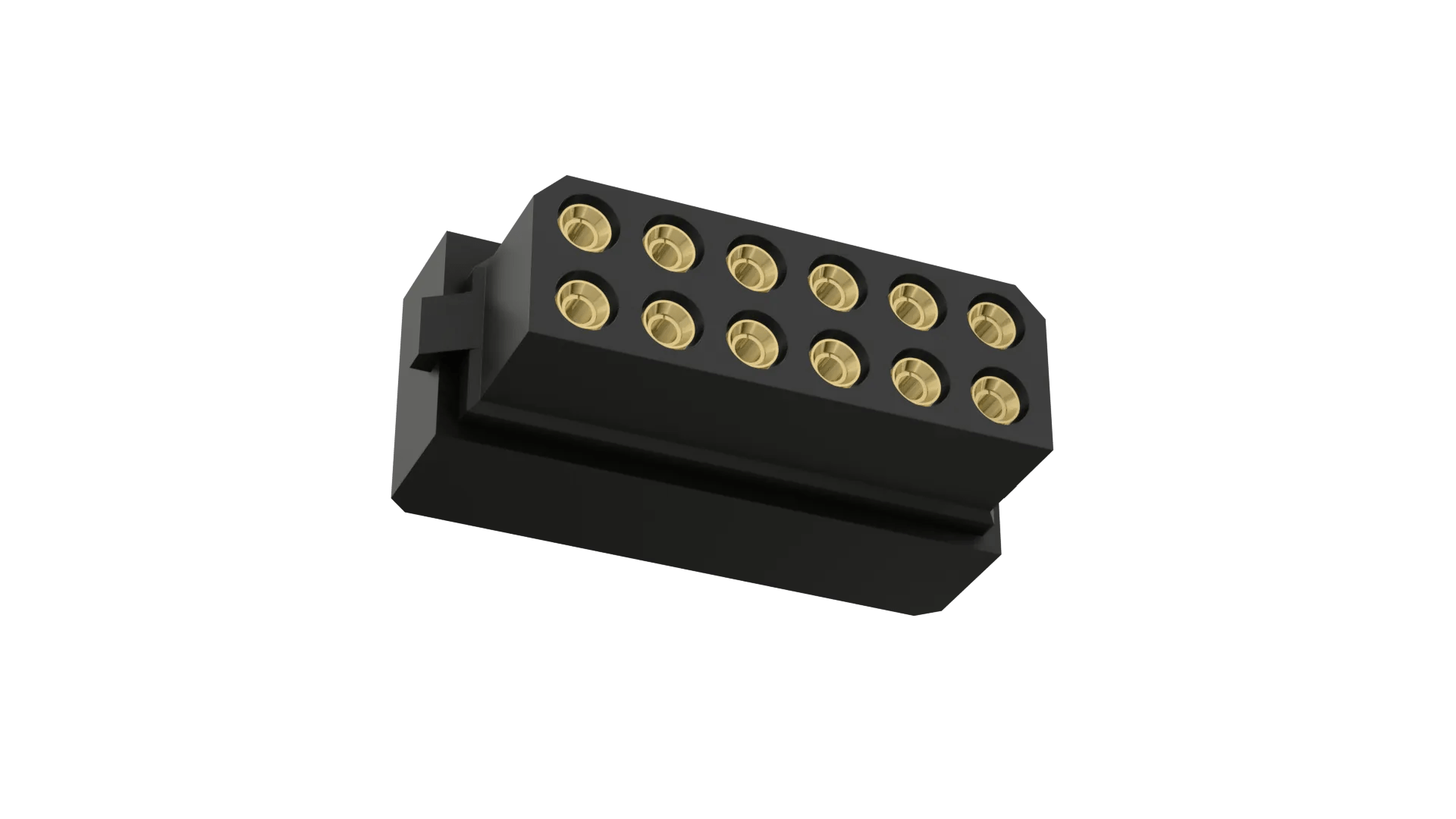

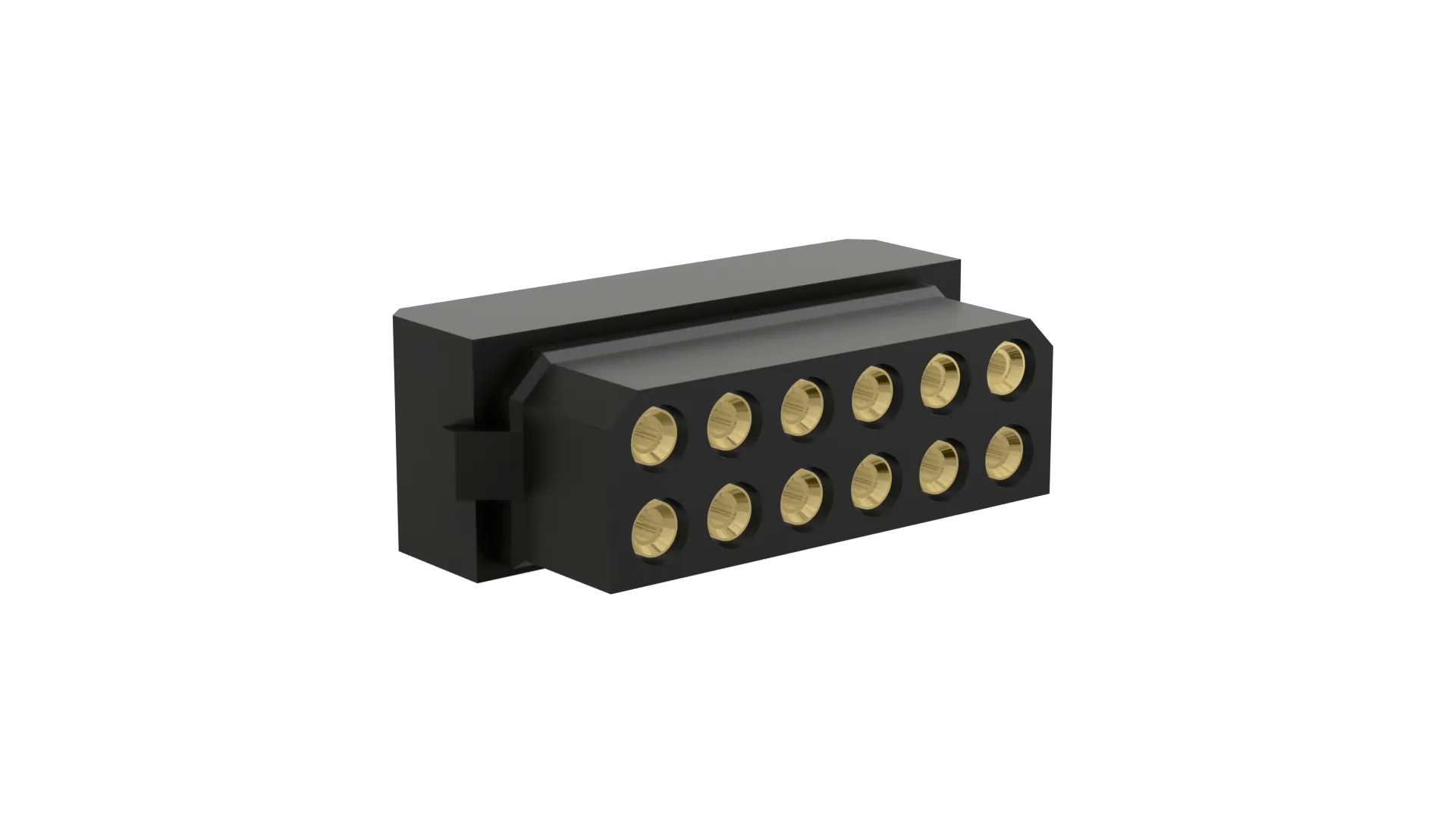

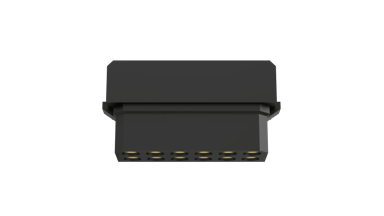

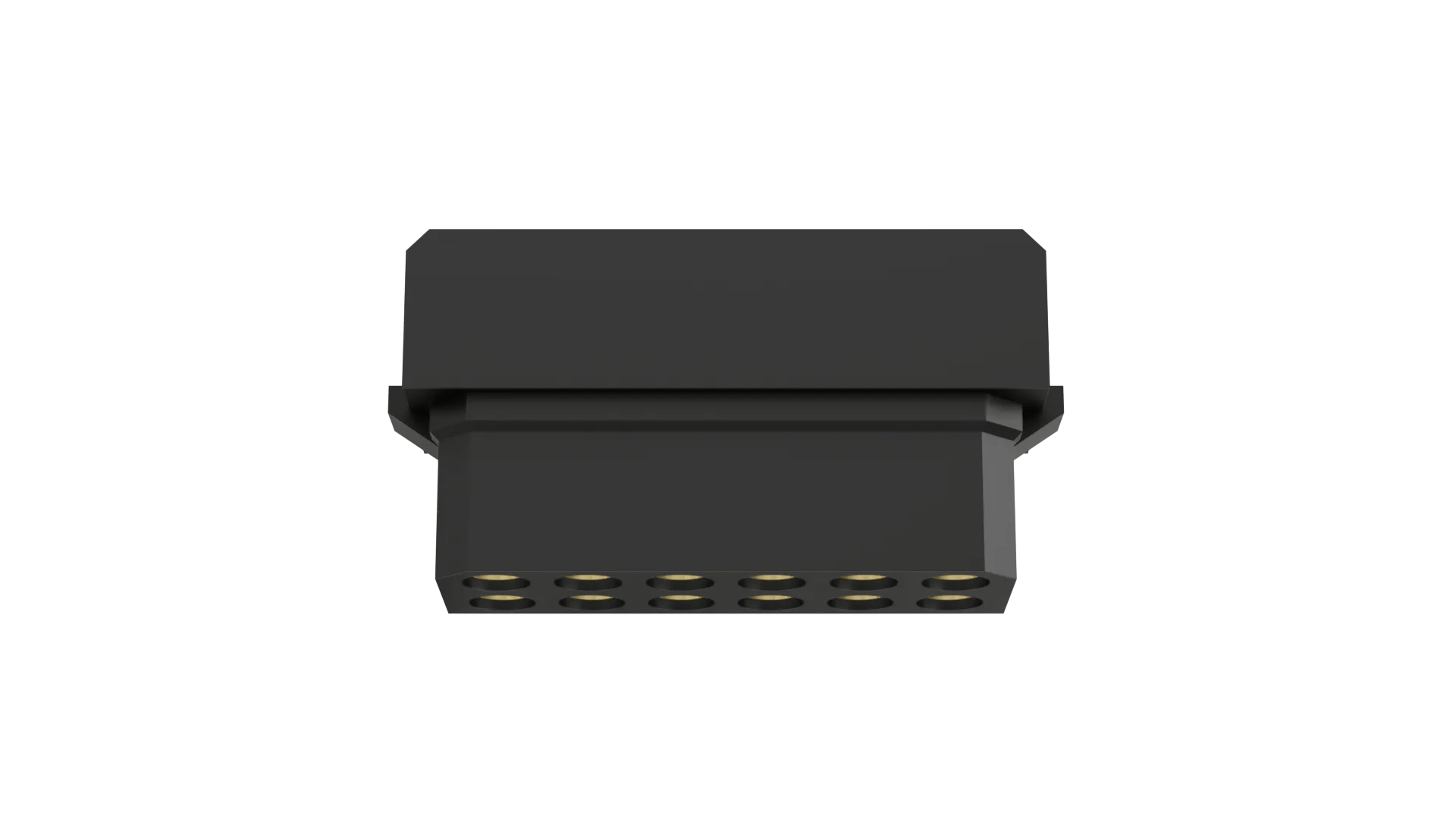

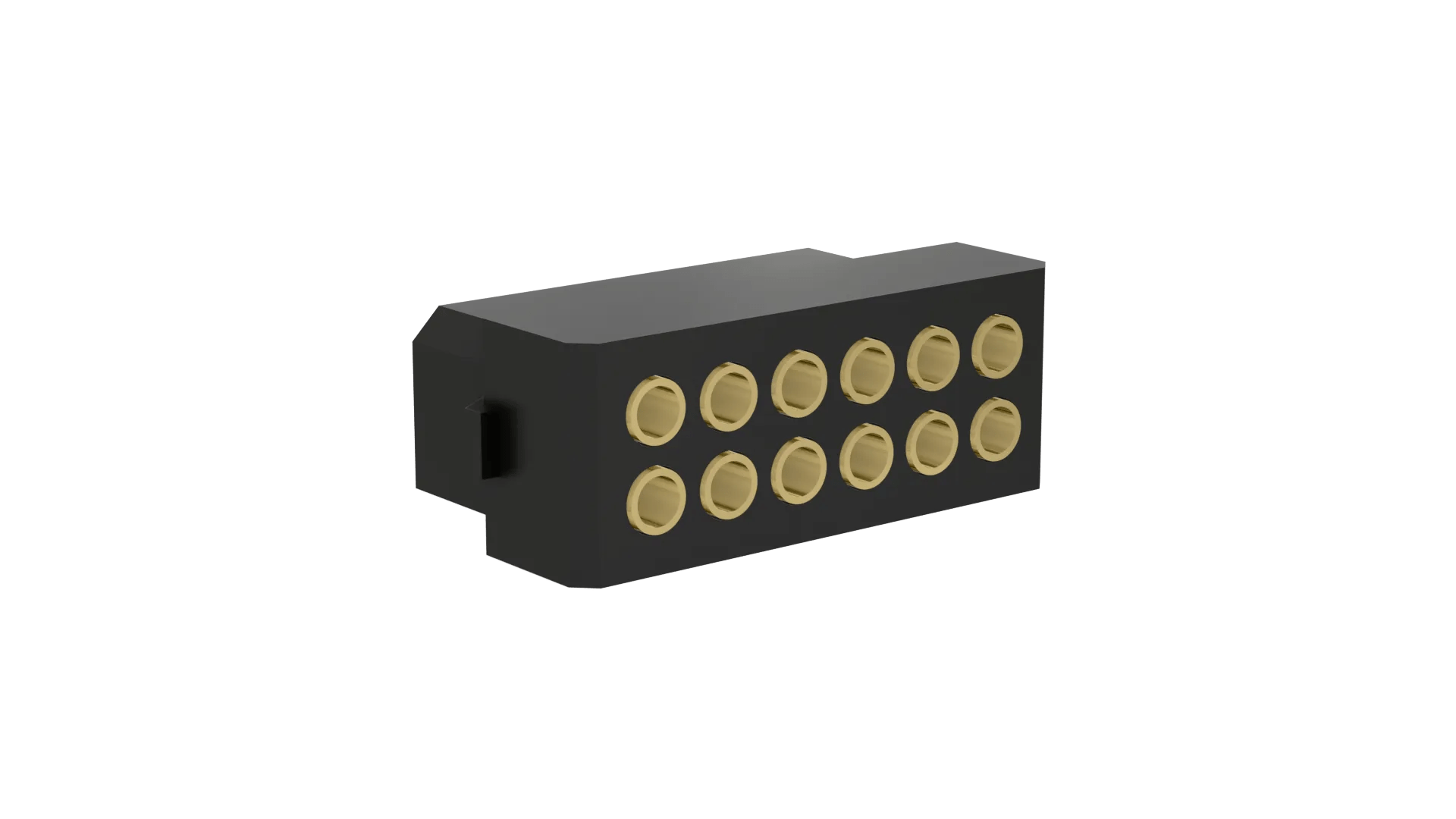

6+6 Pos. Female DIL 22AWG Cable Conn. Kit, for Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Complete kit: Double Row housing, 12 x barrel crimp contacts loose – Gold finish on contact clip and crimp shell.
  • Large Bore – suitable for 22AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0110005.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

3A

Operating Temperature:

-55°C to +125°C

Style of Latches:

Compatible with latches

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

12

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.257g

Overall Dimensions (L x W x D) in mm:

15.15 max x 5.40 x 8.15 max

Availability

2,572 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 682
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 236
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 39
Distributor Newark
Location USA
Quantity (Updated Daily) 32
Distributor Anglia
Location Europe
Quantity (Updated Daily) 5

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 1578

Questions & Answers Ask a Question

What is the thinnest gauge of wire which can be used with this connector?

This connector is only designed to be used with 22AWG equipment wire. The diameter of the insulation must be below 1.1mm diameter to fit within the rear of the contact. However, only the conductor is crimped, so we do not specify a lower limit on the diameter of the insulation.

Do you have a tool to help separate this connector when it is latched to the mating half?

The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
