  • M80-8891005 - 5+5 Pos. Female DIL 22AWG Cable Conn. Kit, for Latches
  • Youtube Video for M80-8891005
  • M80-8891005 - 5+5 Pos. Female DIL 22AWG Cable Conn. Kit, for Latches

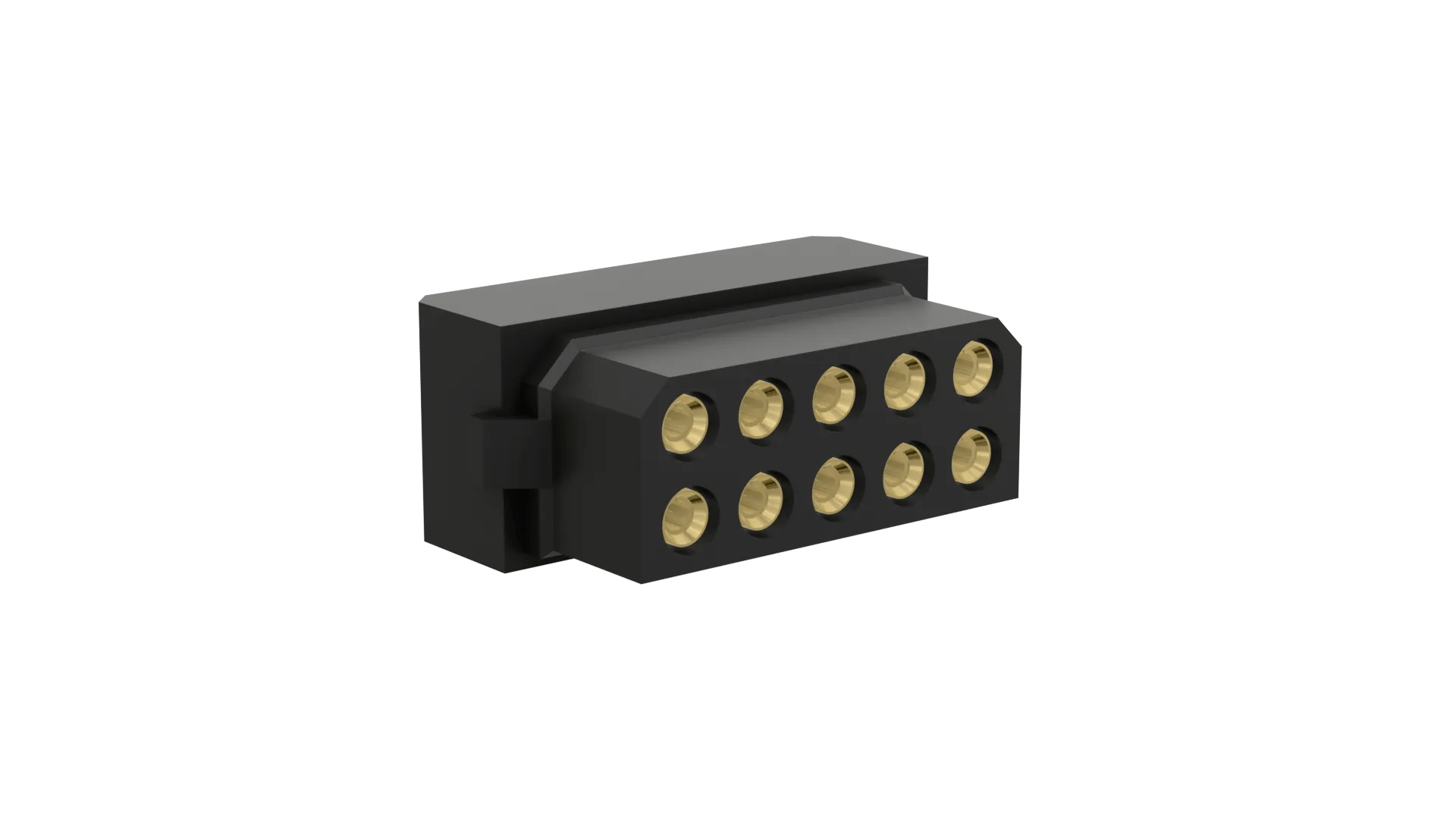

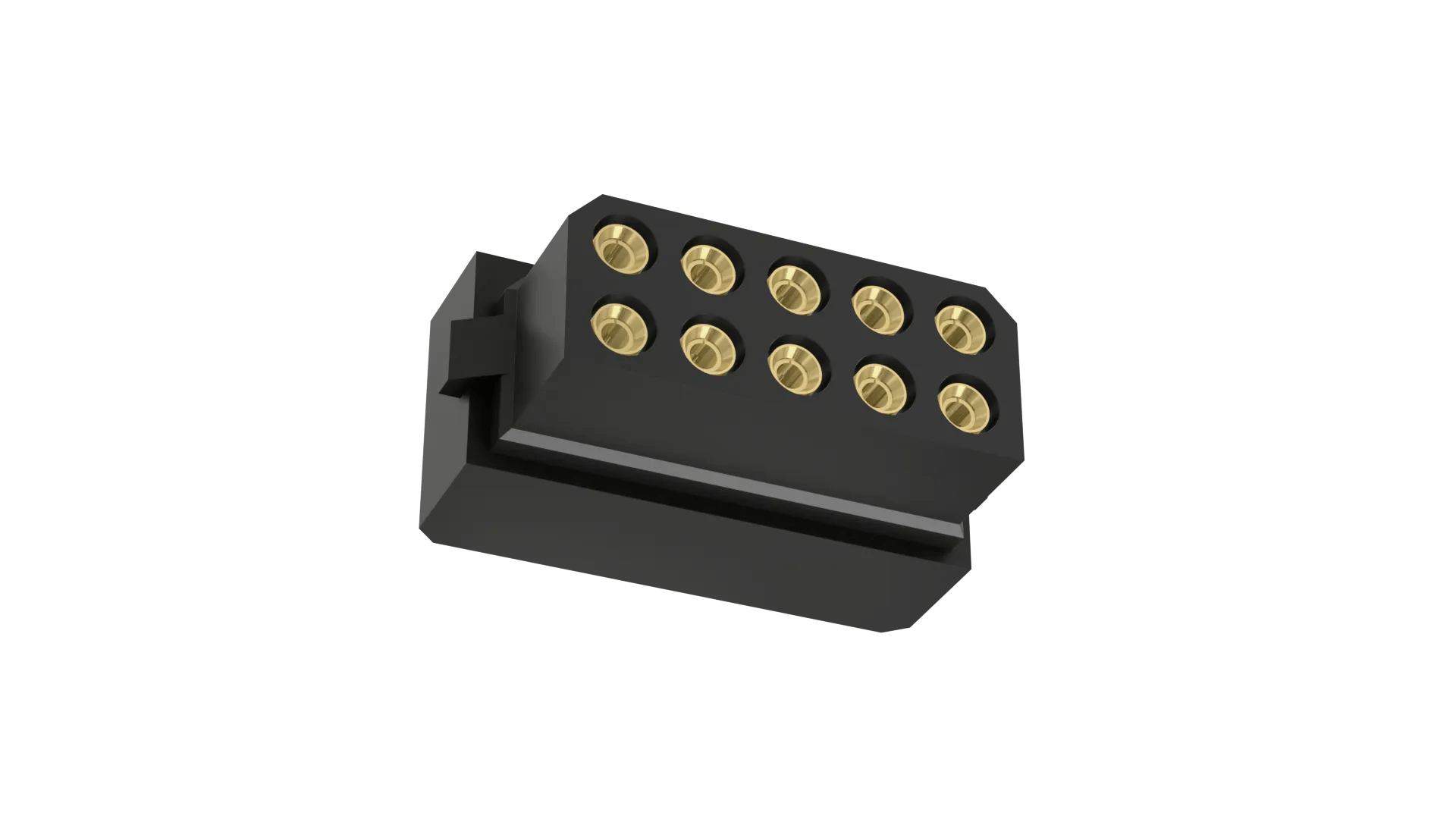

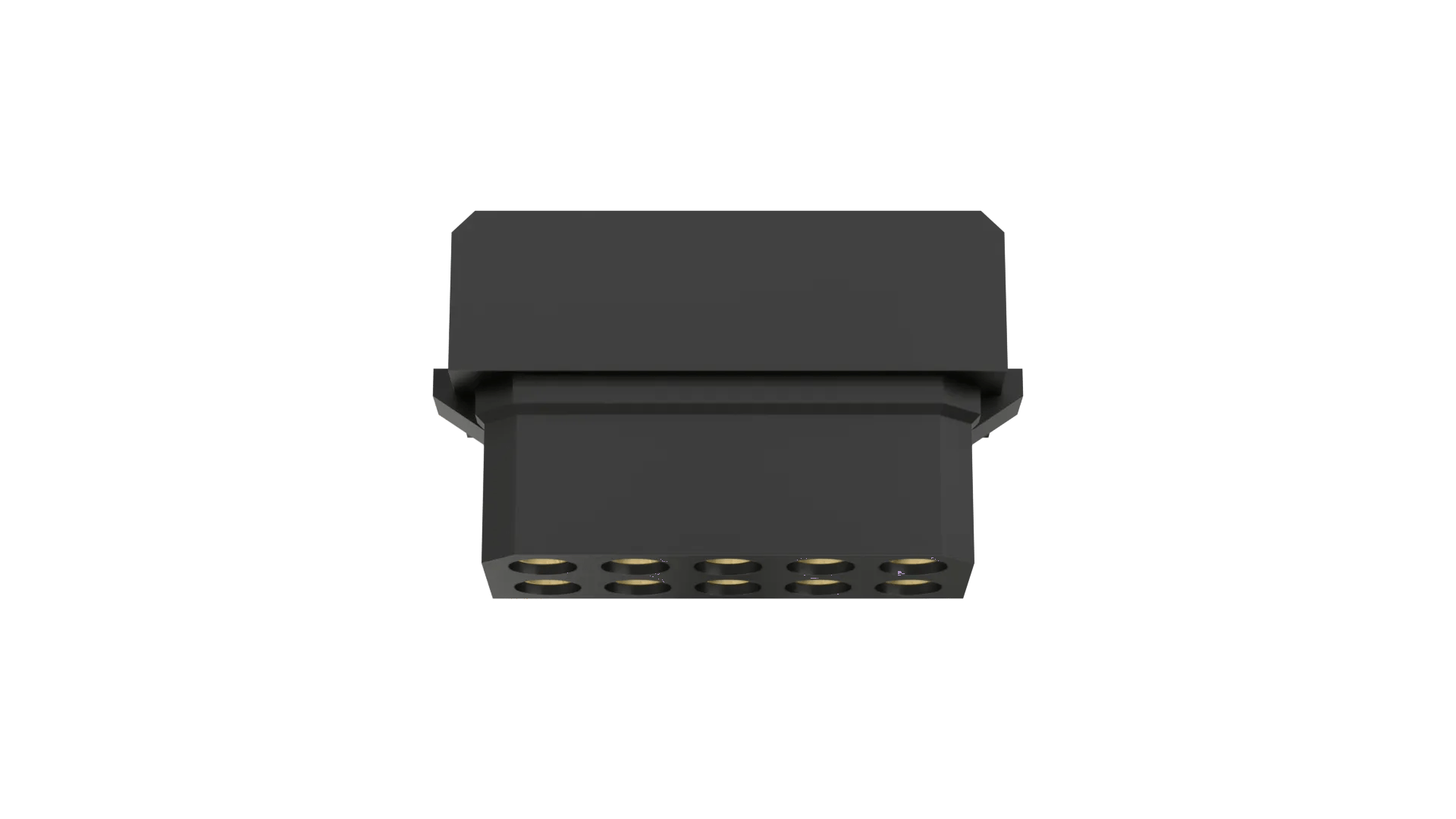

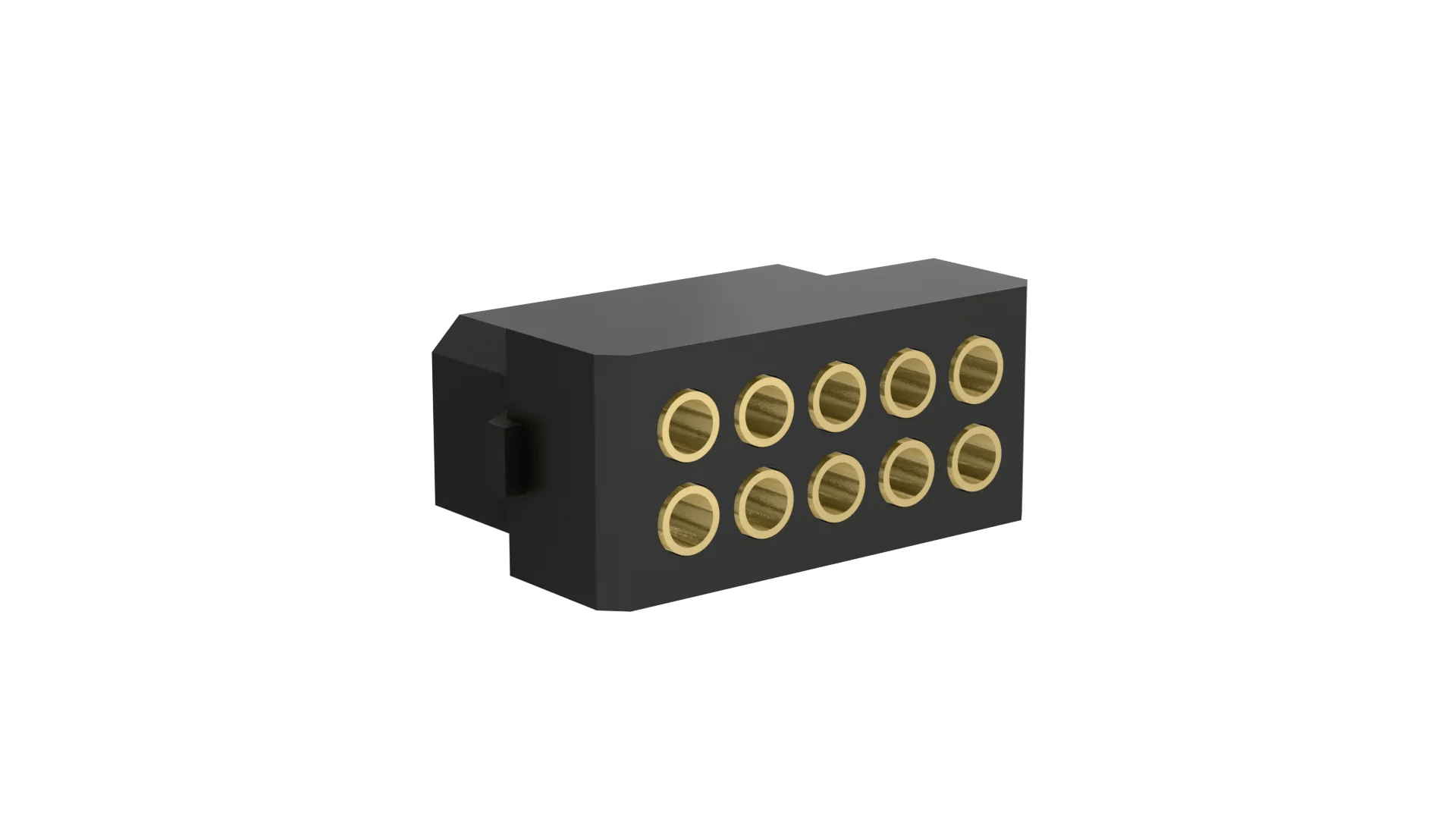

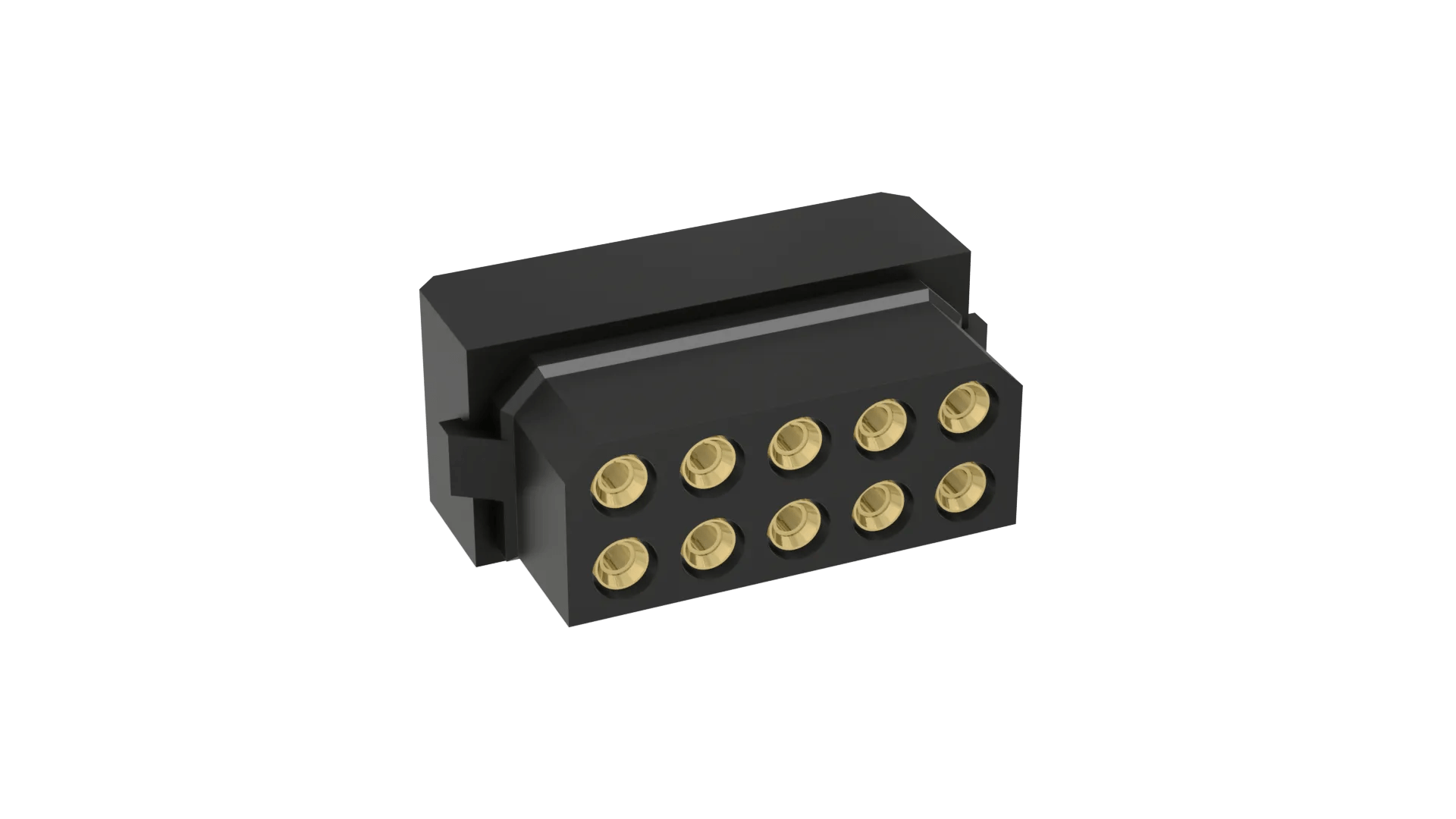

M80-8891005

5+5 Pos. Female DIL 22AWG Cable Conn. Kit, for Latches

2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Complete kit: Double Row housing, 10 x barrel crimp contacts loose - Gold finish on contact clip and crimp shell.
  • Large Bore - suitable for 22AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0110005.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Requires exemption 6c)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 314 Website
Avnet Abacus Europe 370 Buy Now
Digi-Key Global 269 Buy Now
Farnell Europe 319 Buy Now
Mouser Electronics Inc Global 377 Buy Now
Newark USA 30 Buy Now
TTI Europe Europe 4151 Website
TTI Inc USA 213 Website

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate L-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Female/Socket/Jack
Connector Orientation: Straight
Connection Type: Cable (Crimp)
Mating Pin Size: Ø0.5mm
Current Rating: 3A
Operating Temperature: -55°C to +125°C
Style of Latches: Compatible with latches

Materials

+
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Beryllium Copper contact clip, Brass shell
Housing Material: PBT
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.061g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 10
Body Length: 13.15mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Conductor Size of compatible cable: 22AWG
Mating Profiles/Heights

Related Products

+
Hand Crimp Tool: M22520/2-01
Positioner: T5747
Insertion / Removal Tool: Z80-280
Dummy Contacts (for keying): M80-023
Spare Contacts: M80-0110005
High Temp Alternative: M80-6131045
Product Family: M80-889

Mating Products

Previous Next

Alternative products

M80-8891001 - 5+5 Pos. Female DIL 22AWG Cable Conn. Kit, for Latches

Closest alternative:

M80-8891001

5+5 Pos. Female DIL 22AWG Cable Conn. Kit, for Latches

Previous Next
