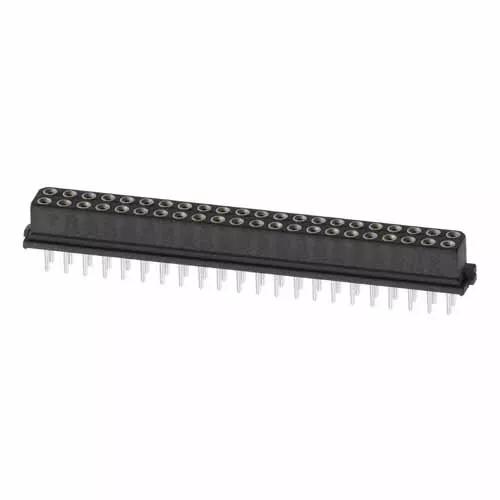

22+22 Pos. Female DIL Vertical Throughboard Conn. for Latches
2.00mm Pitch High-Reliability Connector - Datamate L-Tek
Made to order
3 similiar products View products
- Double Row female connector, 44 (22+22) x 3mm PC Tail contacts – Gold finish on contact area, Tin/Lead finish on termination.
- If mating to a latched male connector, additional clearance holes in PCB are required.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Max Solder Temperature: 235°C for 5 seconds
Style of Latches:
Compatible with latches
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
47.15 max x 3.40 x 8.10
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
Do you have a tool to help separate this connector when it is latched to the mating half?
The tool you need is the Z80-299. This is a kit of a handle, cross-bars and two latch separators, and has instructions to help you assemble the tool to the right size for your connector.
