2.00mm Pitch High-Reliability Connector - Datamate L-Tek

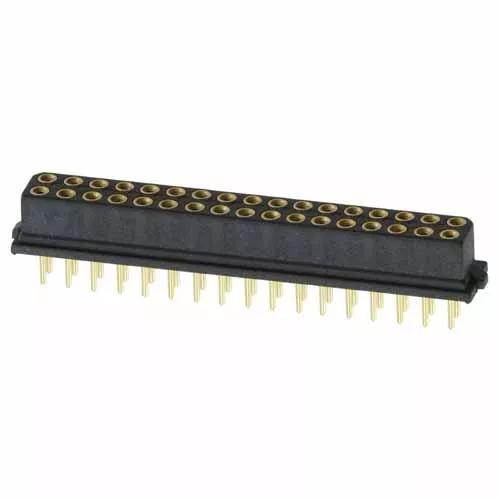

Double Row female connector, 34 (17+17) x 3mm PC Tail contacts - Gold finish on contact area and termination.
If mating to a latched male connector, additional clearance holes in PCB are required.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Latching Style:
Compatible with latches
Mating Pin Size:
Ø0.5mm
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
34
Operating Temperature:
-55°C to +125°C
RoHS Status:
Not RoHS Compliant (2015/863/EU)
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Soldering Data:
Max Solder Temperature: 235°C for 5 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PBT
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
2.252g
Dimensions:
37.15 max x 3.40 x 8.10
PC Tail Length:
3.00mm
Height of Connector above PCB:
5.10mm
