M80-8871801

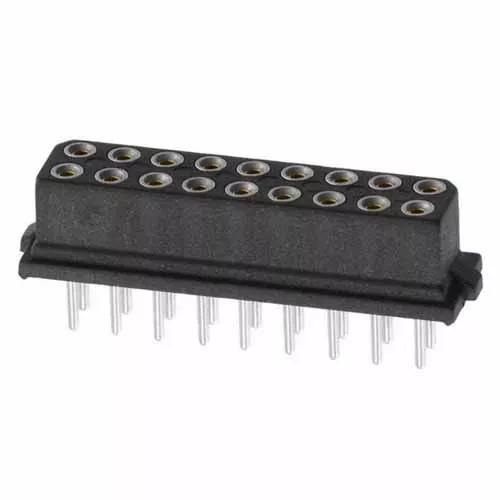

Datamate L-Tek DIL Female Vertical 3mm Throughboard Connector, gold clip + tin/lead shell, 9+9 contacts


2.00mm Pitch High-Reliability Connector - Datamate L-Tek

  • Double Row female connector, 18 (9+9) x 3mm PC Tail contacts - Gold finish on contact area, Tin/Lead finish on termination.

  • If mating to a latched male connector, additional clearance holes in PCB are required.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Test Reports

Technical Details

Specifications

  • Contact Pitch:

    2.00mm (0.079")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    PC Tail / Throughboard

  • Mating Pin Size:

    Ø0.5mm

  • Latching Style:

    Compatible with latches

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    18

  • Entry Style:

    Top Entry

  • Finish / Plating on Termination:

    Tin/Lead

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper contact clip, Brass shell

  • Housing Material:

    PBT

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Height of Connector above PCB:

    5.10mm

  • PC Tail Length:

    3.00mm

  • RoHS Status:

    Not RoHS Compliant (2015/863/EU)

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    3.3A max individual contact, 3A max simultaneous (25°C)

  • Soldering Data:

    Max Solder Temperature: 235°C for 5 seconds

  • Weight:

    1.223g

  • Dimensions:

    21.15 max x 3.40 x 8.10

  • Operating Temperature:

    -55°C to +125°C

Downloads

    Environmental Compliance

  • M80-8871801

  • Material composition for M80-887 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-887.pdf

  • Plating thickness on Datamate signal contacts & T-Contact

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Catalog page - Datamate L-Tek Mating Profiles

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Test Reports

  • Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
